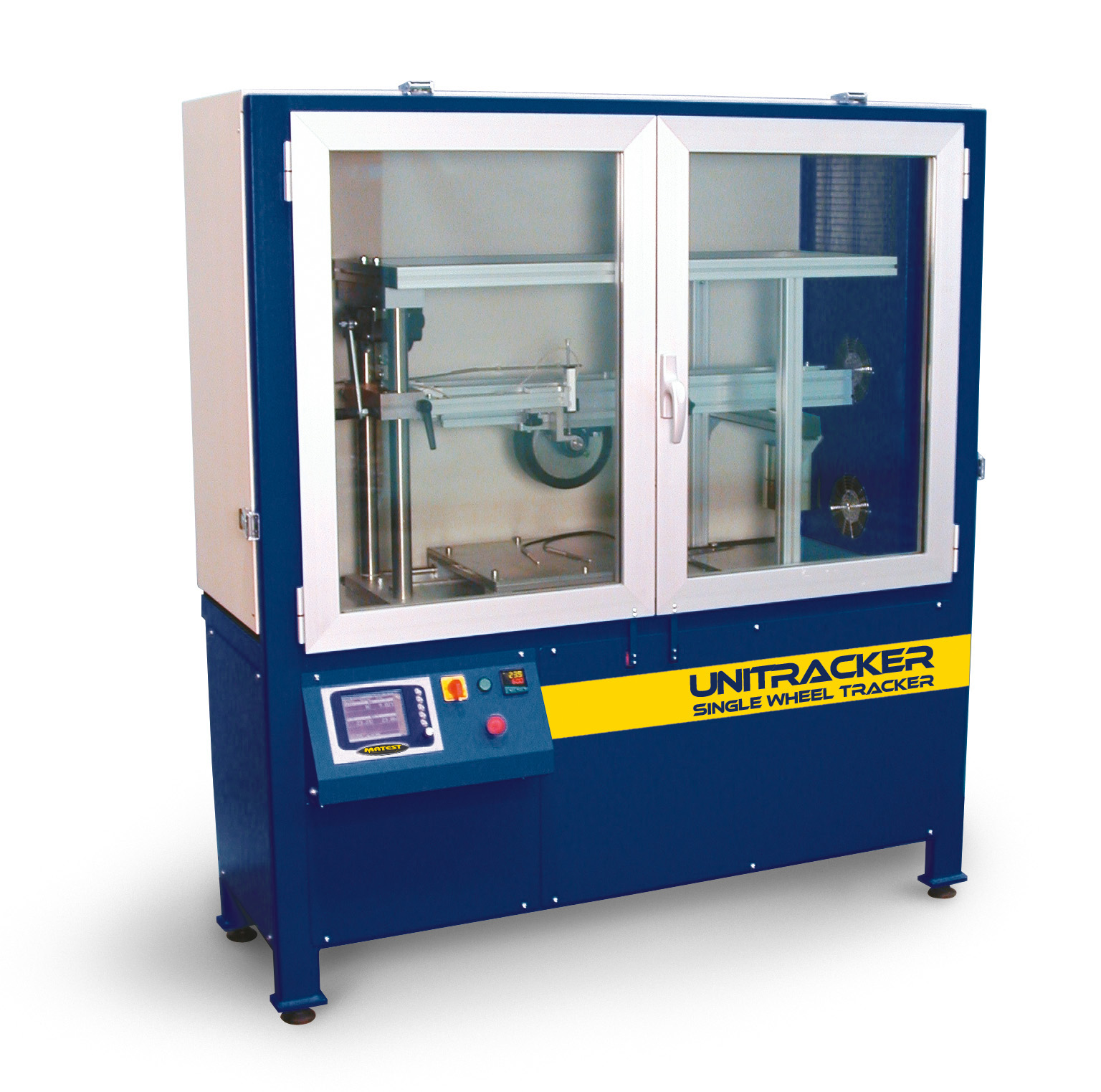

This machine is used in laboratory for evaluating the deformation (rut) depth of a bituminous mixture subjected to cycles of passes of a loaded rubber wheel under constant and controlled temperature conditions.
To perform the test, a wheel tracking apparatus is used to simulate the effect of traffic and to measure the deformation susceptibility of the bituminous sample.
Matest wheel tracker performs the test as per procedures A and B (6 or 2 tests), clearly specified by the EN Standard.
MAIN FEATURES:
Power supply: 230V 50/60Hz 1ph 2200W
Power rating of the table: 500 W
Dimensions: 1580x650 x1790 mm
Weight: 400 kg approx.
