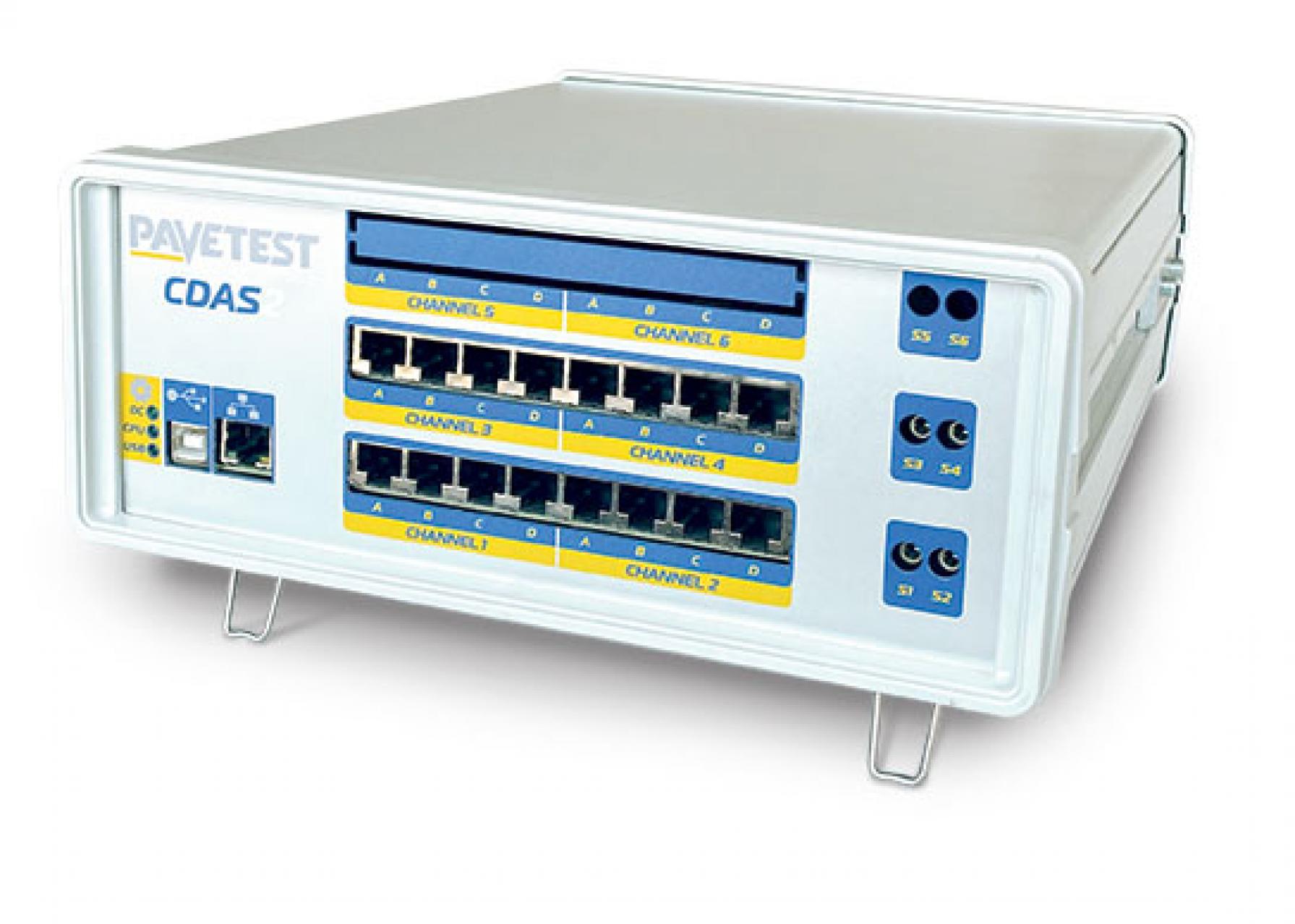

S303N CDAS2 Control and Data Acquisition System for Soil

Pavetest’s compact Control and Data Acquisition System (CDAS2) delivers unparalleled performance, real time control and ultimate versatility in acquisition and provide a flexible and user friendly testing solution for soils when coupled with the Matest TriaxLab Automated System and the Cyclic TriaxLab Automated one.

The CDAS2 provides excellent waveform fidelity from integrated acquisition and control functions, with low level sampling at speeds of up to 192,000 samples per second simultaneously on all channels (using up to 64x oversampling).

S303N CDAS2 provides an optimized solution for the TriaxLab Automated Systems. The CDAS2 works with close synchronization to the TestLab software providing dynamic and precise servo control of the TriaxLab frame, Pressurematic systems. Acquisition and control is provided for:

  • Vertical load and displacement
  • Confining and back pressure (through the solenoid valve)
  • Volume change and water pressures
  • Local strain

Запрос информации о продукте

Triaxial test

  • Directly communicates with the TestLab software, providing automatic test execution and data processing
  • Compact high reliability data acquisition and control
  • Up to 5 kHz data acquisition and feedback control provides excellent waveform fidelity
  • Normalized (+/- 10V) analog data acquisition inputs provide flexibility to use any transducer in any channel
  • Software and test methods expandable for future requirements

16 Channel CDAS2
Acquisition 16 CH, 20-bit resolution

  • Sampling rate up to 192 kHz (all channels)
  • Smoothing up to 64 times over-sampling for low-noise performance
  • Calibration automatically on power up
  • Control Axis 4
  • Communication USB or Ethernet

Power supply: 90-264V 50-60Hz 1pPh 240W
Dimensions: 100 (h) x 310 (d) x 250 (w) mm
Weight: 2 kg approx.
