S334N

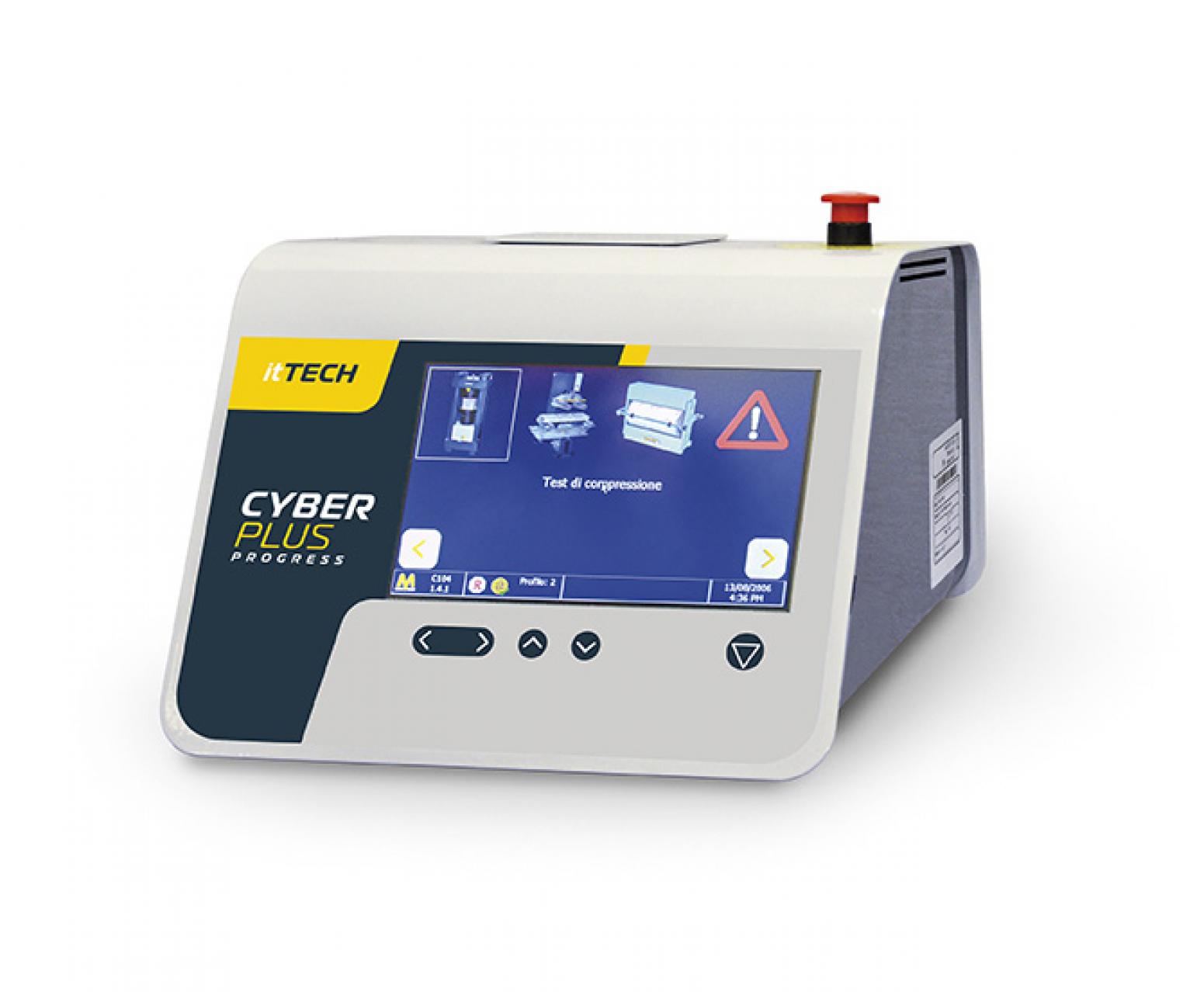

Datatronic 8 Channels Cyber-Plus Progress
This unit is designed and produced to satisfy the requirements of all laboratories, from the small, up to the most complex.
8 channels acquisition and processing data system (expandable to 16 channels, see accessory mod. S334-01N), colour touch screen display, it automatically performs test and data processing. Directly connected to a PC via USB, it prints the test certificate. Equipped with slots for external Pendrive or SD Card infinite memory supports.
One or more cyber-plus (8 or 16 ch) can be connected to create a network multichannel system. A flexible, customizable and infinitely expandable solution. Data collection is completely automatic, improving considerably the productivity and cost-effectiveness. Windows-based programs with menu-driven command selections are straightforward to follow and do not require a skilled operator.
The system can be used for:
- Oedometer (consolidation) tests
- Direct and residual shear tests (cycle test)
- Triaxial UU, CU, CD tests
- Automatic data acquisition and processing systems permit the utilization of different channels that can be independently calibrated, zeroed and set up in order to visualize the units being measured;
- The appliances contain a modern high speed - high performing 24 bit conversion device;
- The appliances permit the signals coming from different types of transducers:
- Strain Gauge Bridge and Potentiometric Wide input range available for the electrical signal: ± 40 mV ... ± 3 V
- User interface: Full-color display 800×480 pixels – touchscreen
- Data storage: The data test can be stored directly into the appliance on flash memory and be transferred to the PC at the end of the test by USB pen drive or SD card
- Every channel can be set with different sampling modes (linear form, quadratic form, logarithmic form, etc.). The sampling process can be executed with different frequencies: from 50 ms to infinite
- The calibration data are protected by password and they can be transferred to external support archives.
Power supply: 230V 1ph 50Hz
Dimensions: 260x270x160 mm
Weight: 5 kg approx.
