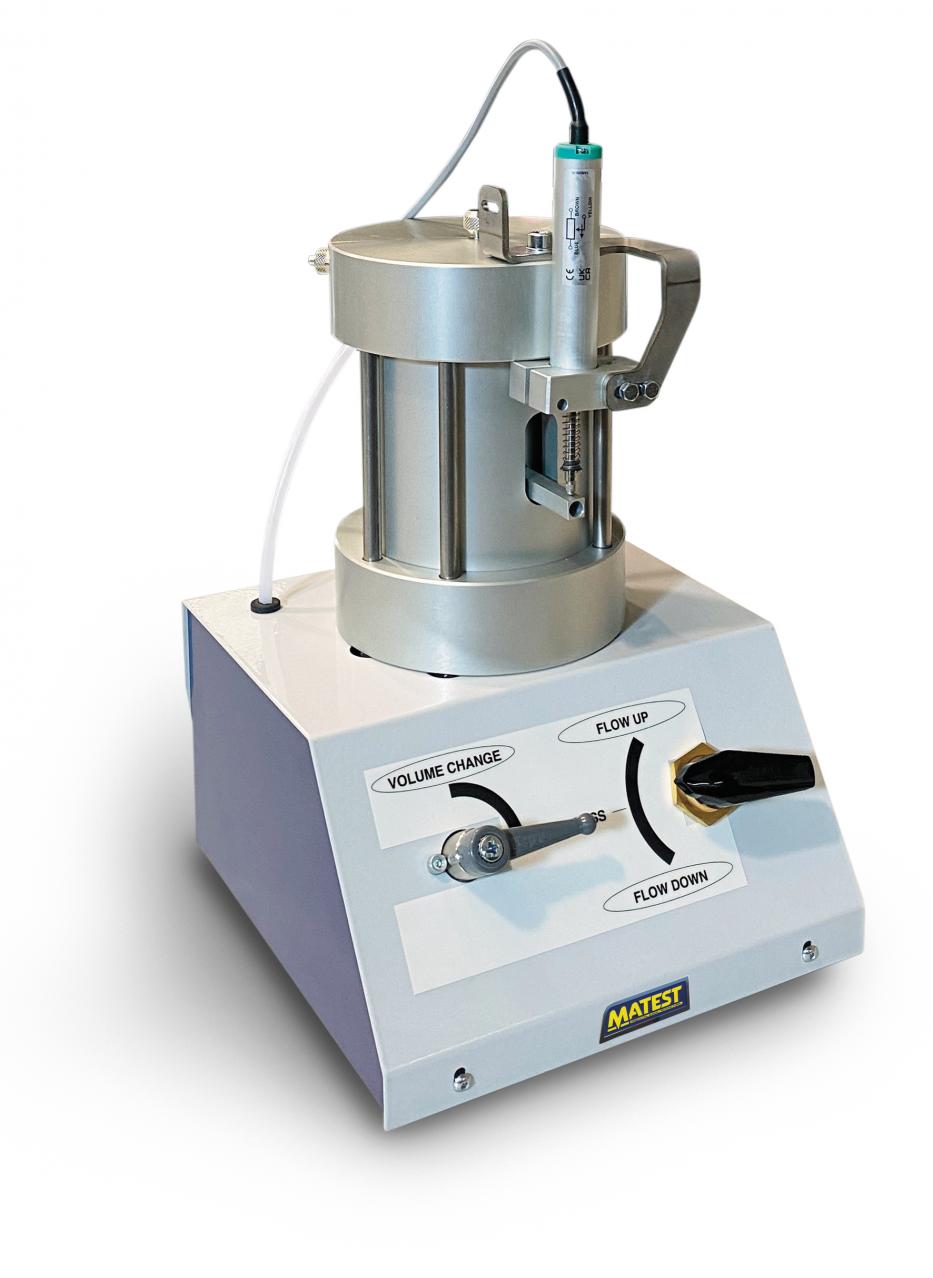

S338-01-KIT Automatic volume gauge

---

The unit consists of a 100ml metallic air/water interface. A change valve box provides unlimited capacity.

Capacity: unlimited
Accuracy: better than 0,1 ml
Dimensions: 360x270x210 mm
Weight: 7,6 kg

Easy de-airing of top and bottom chambers. No measuring device and mounting block are included (see accessories).

S338-01-KIT consists of:

• S338N Volume Gauge: The unit consists of a metallic air/water interface. It measures the water volume changes inside the sample. It has to be used with a linear displacement transducer, or dial gauge.
  Capacity: 110 ml
  Accuracy: better than 0.1 ml.
  Easy de-airing of bottom and top chambers.
  No measuring device and mounting block are included
  Dimensions: 180x180x240 mm
  Weight: 4.7 kg approx.
• S338-02N Control panel automatic volume change: for controlling the volume change.

NOTE: The volume gauge has to be used with a linear strain transducer which must be connected to the automatic data acquisition system mod. S334 or mod. S301-05.
