V205 Vacuum pumps

---

Lubrified, paddle rotatory type. Ideal for laboratory and site use to produce vacuum
Supplied complete with:

• Thermal protection with automatic resetting, assembled inside the motor.
• On/Off luminous switch, cable, carrying handle, base, bottle of
  special oil.
• CE is labelled with a certificate of conformity.

Rotation speed: 2800 rpm
Power supply: 230V 1ph 50-60Hz

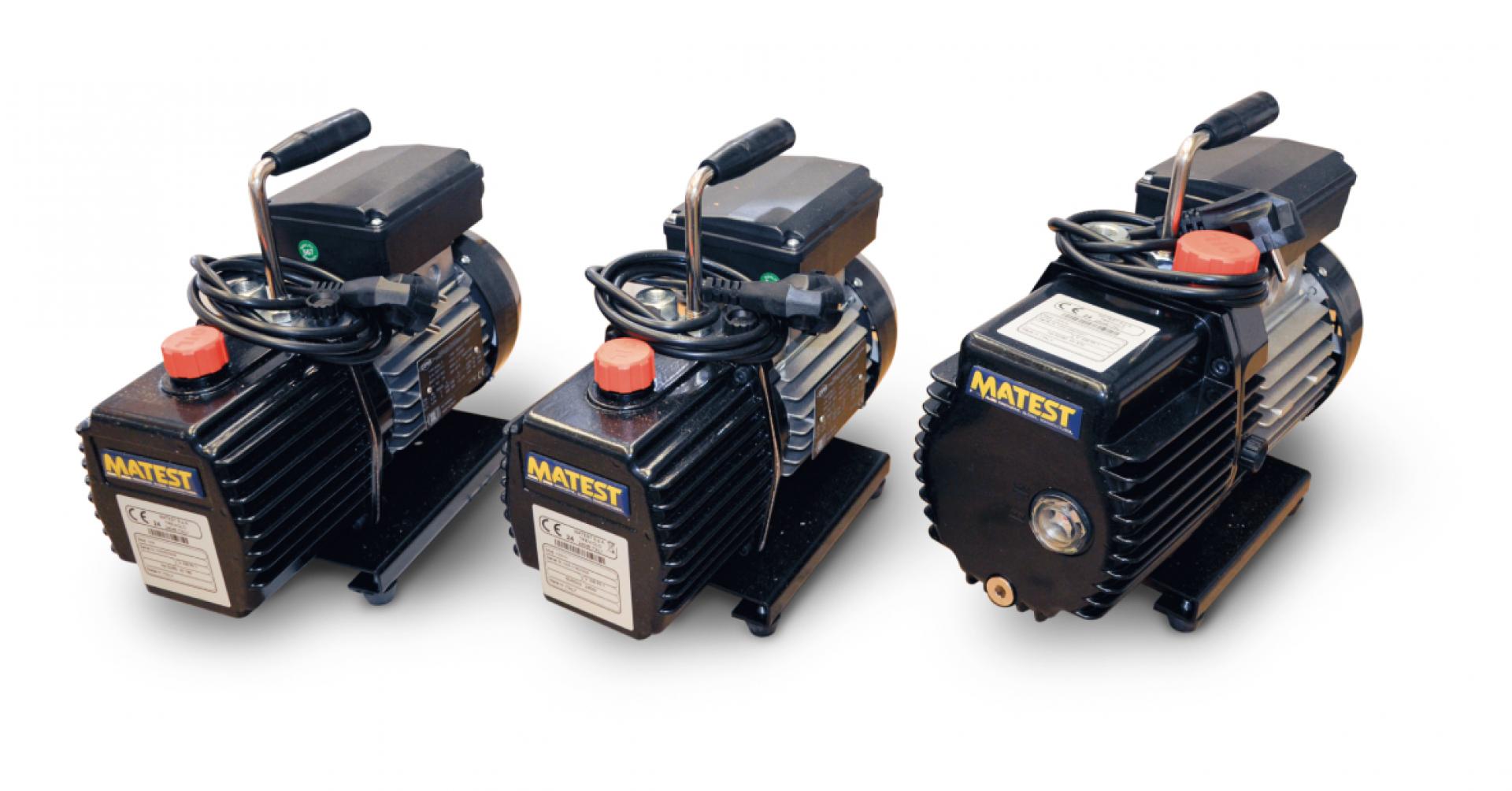

Available models:

Models	V205	V205-01	V205-02
Free air displacement litres/min	75	75	150
Flow rate m³/h	4.5	4.5	9
Ultimate vacuum mbar	0.1	0.01	0.01
Stages	1	2	2
Motor power W	180	240	370
Dimensions mm	300x150x240	300x150x280	350x150x275
Weight Kg	8.4	9.8	11



Note: V205-KIT consists of:

• V205 Vacuum pump, up to 0.1 mbar
• V205-10 Vacuum regulator, supplied with vacuum gauge and control valve
• V205-12 Suction filter and moisture trap
• V230-03 Rubber tube. Suitable for vacuum, 3 m
• V205-13 De-oiling filter for vacuum pump
