Test Standard Category

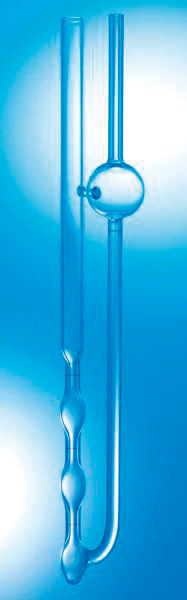

B088-50 Cannon-Fenske Opaque Viscometers

( Bitumen )

Reverse flow type. Used to determine the kinematic viscosity of bitumen, distillation residues of opaque liquid asphalts, asphalt cements at 135°C and road oils at 60°C. Supplied complete with calibration certificate.



Model Approx. constant mm²/s² Viscosity range mm²/s²
B088-50 0.002 0.4 to 2
B088-51 0.004 0.8 to 4
B088-52 0.008 1.6 to 8
B088-53 0.015 3 to 15
B088-54 0.035 7 to 35
B088-55 0.1 20 to 100
B088-56 0.25 50 to 200
B088-57 0.5 100 to 500
B088-58 1.2 240 to 1200
B088-59 2.5 500 to 2500
B088-60 8 1600 to 8000
B088-61 20 4000 to 20000
B088-62 45 10000 to 40000
B088-63 100 20000 to 80000



Note: to measure the kinematic viscosity with the Cannon-Fenske viscometers , the B088N bath or the B088-01N and the B088-06N holder are also needed.

Request information

Kinematic Viscosity of Bitumen

  • EN 12595
  • ASTM D2170
  • AASHTO T201
