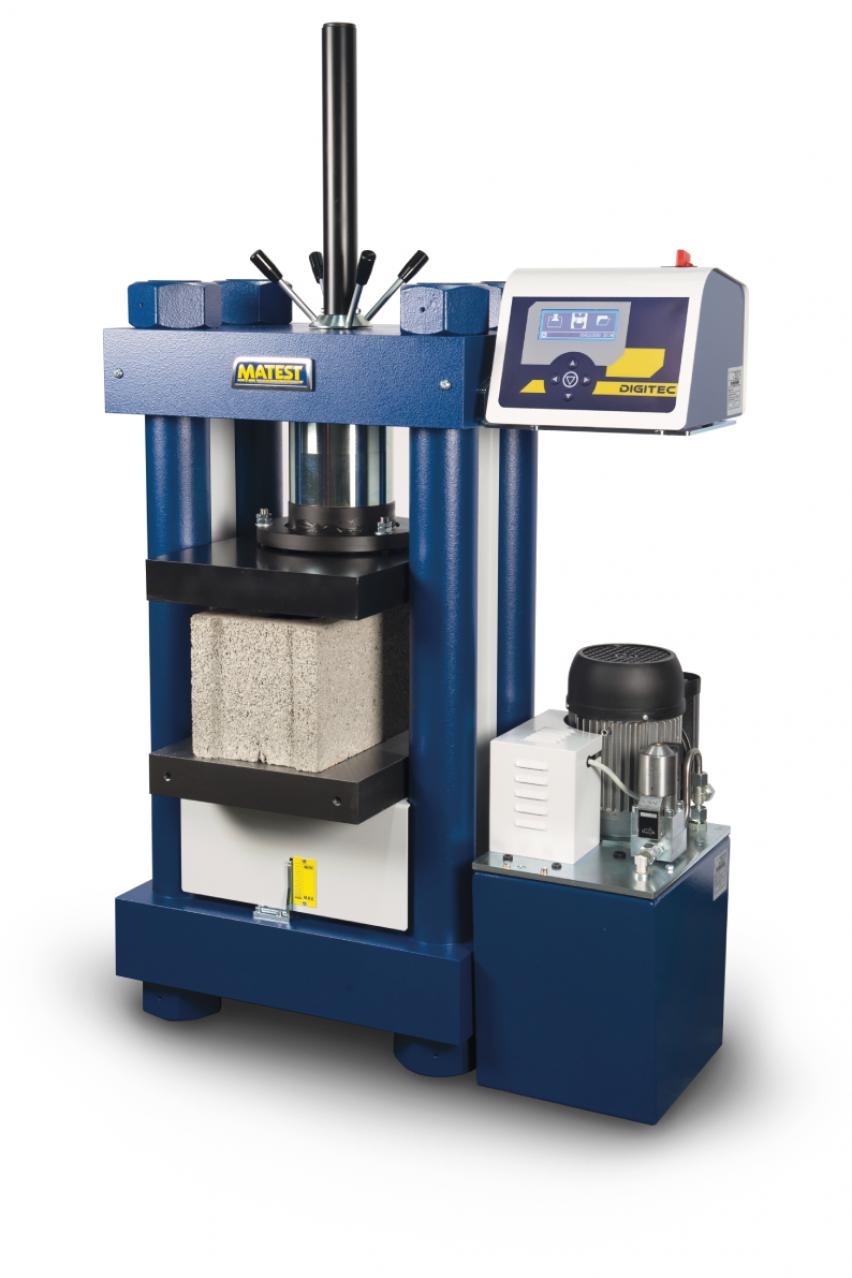

Compression machine 2000 kN automatic, Autotec

Code: C078A

Compression testing machine 2000 kN motorized with Autotec control unit, to test blocks max. 500x300 mm, cubes up to 300 mm side and cylinders up to 160x320 mm height.

C121-01

Safety guards for 2000 kN compression machines, block platens
C127-11

Thermo-paper roll for printer (pack of 10 rolls)
C112-05

Kit of 4 Handles to Lift the Lower Platen
C097-05

Class 1 starting from 1% of the full range
C127N

Graphic printer
C123

Software UTM2
C056-11

Testing chamber for 2000 kN Compression machines
C107-10

Capping retainers for Ø 150x300 mm and 6''x12'' cylinders
C107-20

Neoprene pads 60 shore A for dia. 150x300 mm
C121-51

Door stop safety switch
C115-01

Two way hydraulic valve
C110-30

Upper compression platen + spherical seat
C106

Flexural device on concrete beams
C099-01

Barcode Scanner
C097-01

Dual low capacity range
C105

Device with central screw
C100

Splitting tensile test device for cylinders
C103

Splitting tensile device for cubes
C103-01

Splitting tensile device for concrete block pavers, cubes and prisms
C121-52

Electric switch for the piston
C111-50

Distance Piece
C111-22

Distance pieces for 1300, 1500, 2000, 3000 kN ASTM
C111-27

Slotted distance pieces
E170

Compression device for mortar prisms, EN standard
C126

Bench for compression machines

You are not logged in to view the manuals, Log in

Max. vertical daylight: 336 mm
Horizontal daylight between columns: 324 mm
Compression platens 510x320x55 mm
High stiffness and heavyweight 4-column frame (German-style)
Calibration accuracy: Class 1
Max. ram travel 55 mm approx.
Power supply: 230V 1ph 50Hz 750W
Dimensions: 510x810x1100 mm approx.
Weight: 850...900
