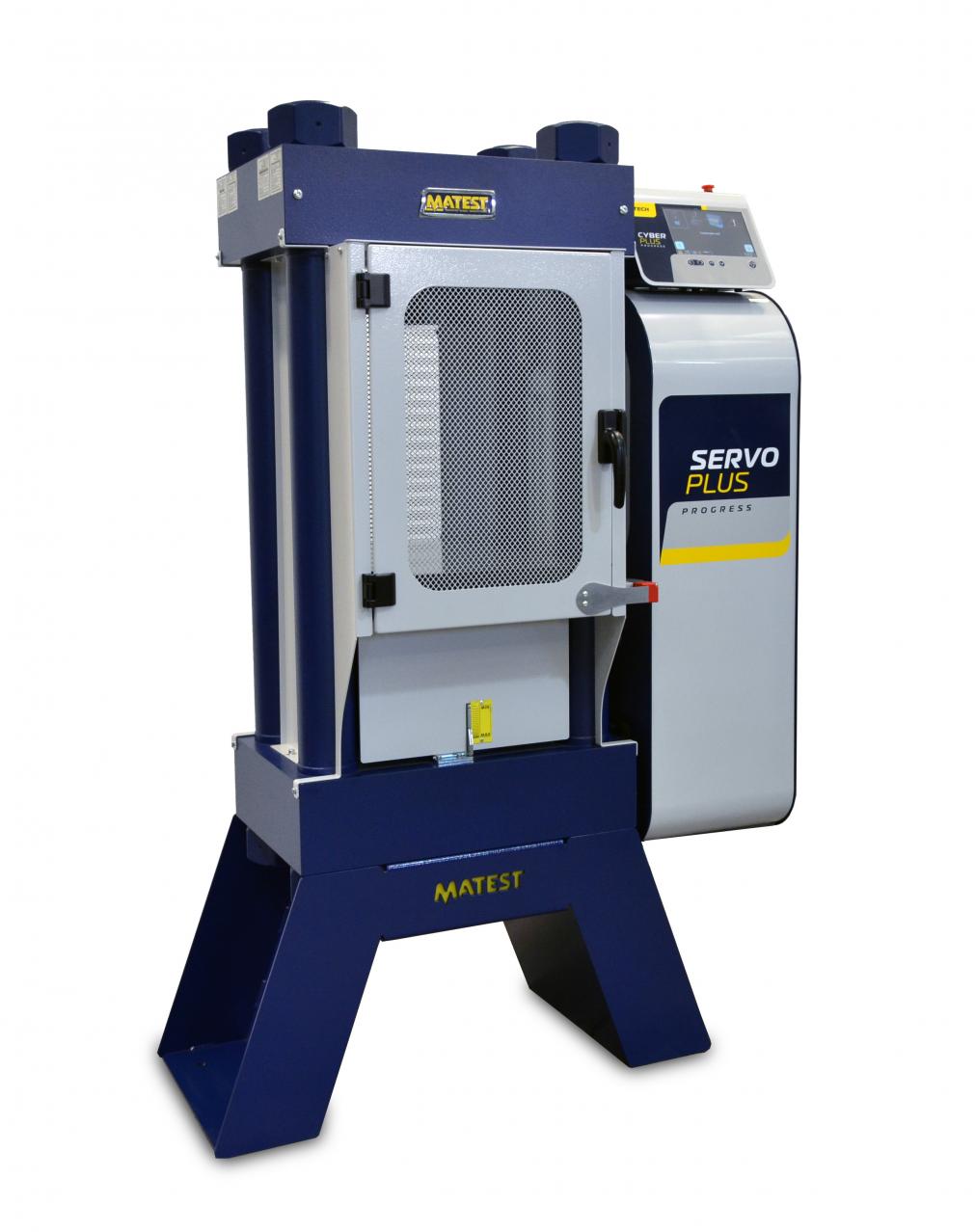

COMPRESSION TESTING MACHINE 2000 KN HIGH STIFFNESS
To test cylinders Ø100x200 MM / 4’’x8’’ AND Ø150x300 MM / 6’’x12’’
Thanks to the distance piece included (20 mm / 0.7’’ high), the vertical daylight is reduced to 367 mm / 14’’ which is optimal for cylinders Ø150x300 mm or 6’’x12’’ equipped with capping retainers. The large bottom platen is suitable also to be used as a work surface so that the sample can be fitted with capping retainers directly on the platen and then simply slid in the correct position for the load application.
The control system is composed of Cyber-Plus Progress controller and Matest automatic pump for a smooth and completely automatic control of the pace rate.
The machine includes:
C082-01 Compression frame complete with digital controller C109M Cyber-plus Progress and automatic pump;
C082-02 BENCH to hold the compression machine;
C082-03 SAFETY GUARDS, aluminium, with hinges and lock.
Power supply: 220V 1ph 50Hz 750W
Dimensions: 890x620x1530 mm / 35x24.5x60''
Weight: 1000...1070 kg / 2200...2360 lb
NOTE: other capacities are available on request.
