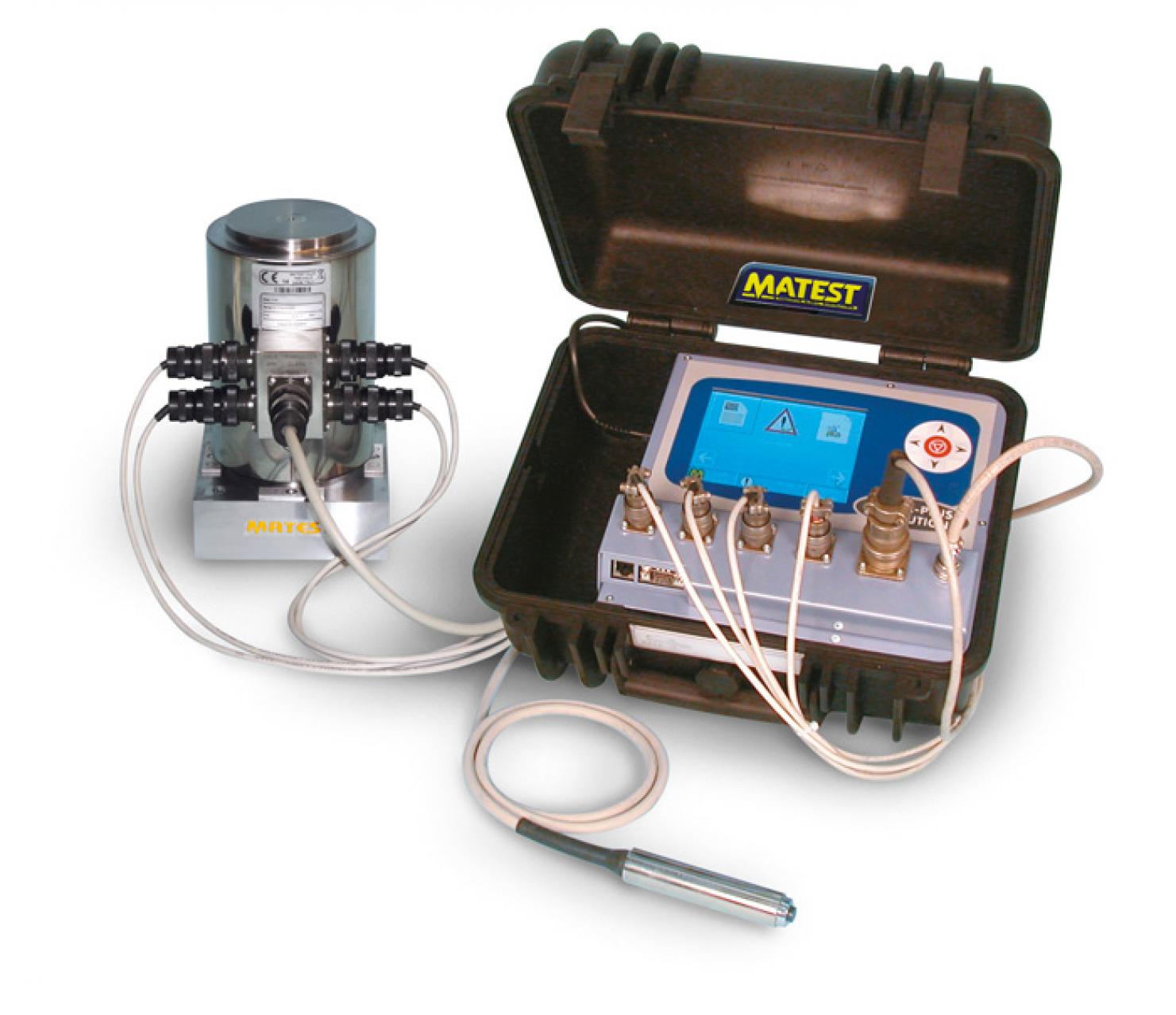

C154 Strain gauged load cell

( Concrete )

Consisting of a strain steel cylinder where four balanced strain gauge bridges are centered to measure the deformation on 4 generatrix in relation with two diameters, orthogonal between them, so that both axial and circumferential deformations can be measured.
The cell incorporates a fifth strain gauge utilized for load measurement calibration tests.

Supplied complete with connectors, cables, calibration certificate.

Dimensions: Ø 100 by 200 mm high
Weight: 18 kg

Request information


  • EN 12390-4
  • BS 1881:115
  • DIN 51302
