E159D
Cement compression machine 500 kN motorized, Digitec
(
Cement-Mortar
)
- EN 196-1
- EN 1015-11
- ISO 679
- ASTM C109
- ASTM C349
- ASTM D1194
- DIN 1164
- BS 4550
- GOST 26798.1
- EN 13892-2
- API RP 19 C
- EN ISO 13503-2

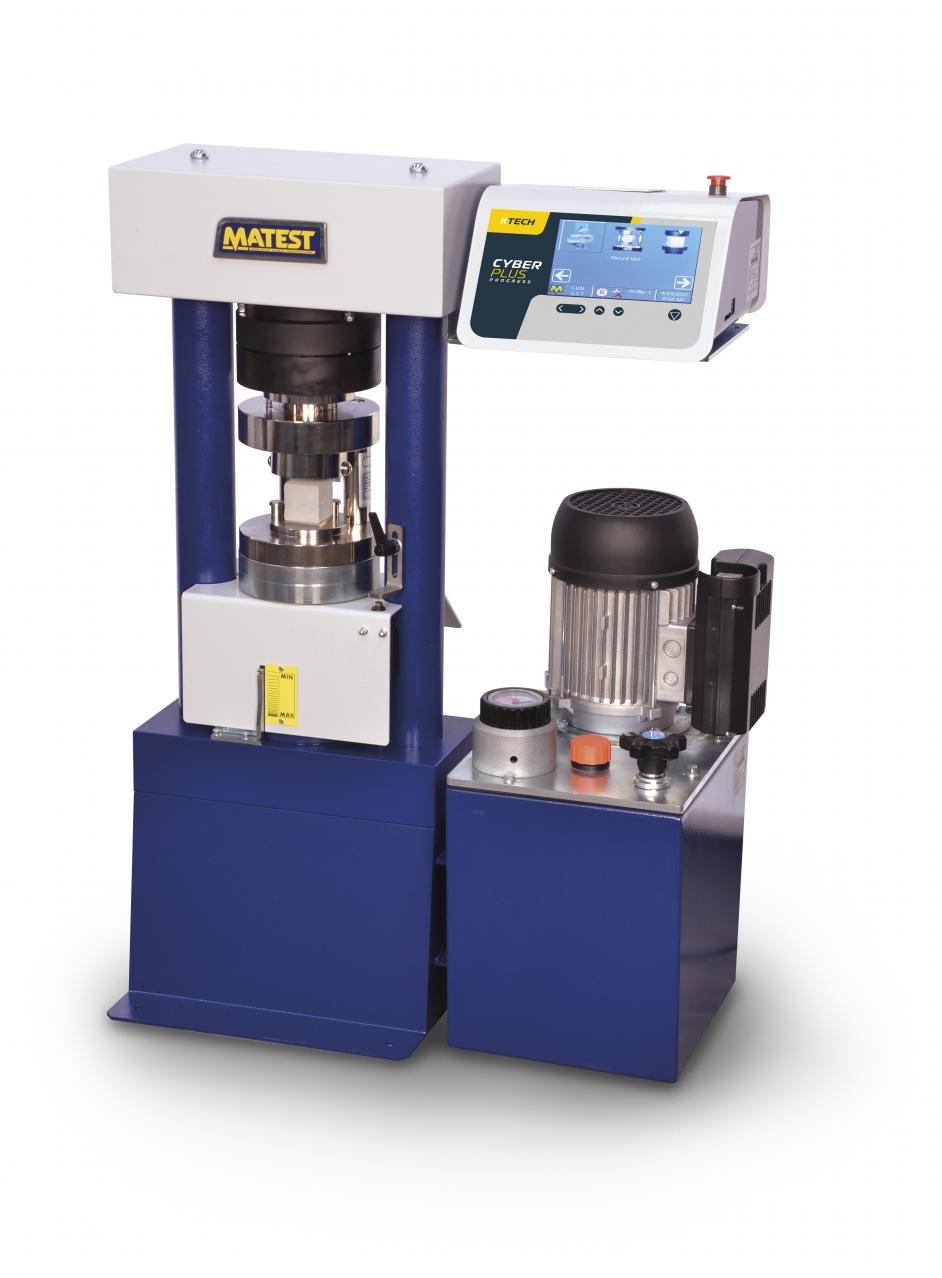

Compression machine 500 kN motorized with Digitec control unit for cement and mortar specimens, bricks, rocks, refractories etc.
Designed to perform compression tests on portions of prism 40.1x40x160 mm, cubes side 40, 50, 70, 100 mm and 2”; cores with max. height of 180 mm, by using the suitable compression devices (accessories mod. E170 - E171-01).
- Two columns high stiffness frame.
- Max. vertical daylight between platens: 185 mm
- Platens diameter: 153 mm
- Ram travel: 45 mm approx.
- Accuracy: Class 1 starting from 1/10 of the scale
- Gauge diameter 200 mm, range 0-300kN, subdiv. 2.5kN
- Supplied complete with lower compression platen and coupling piece to easily fix the compression device.
- Power supply (motorized models): 230V 1ph 50Hz 750W
- Weight: 300 - 330 kg
Request information
