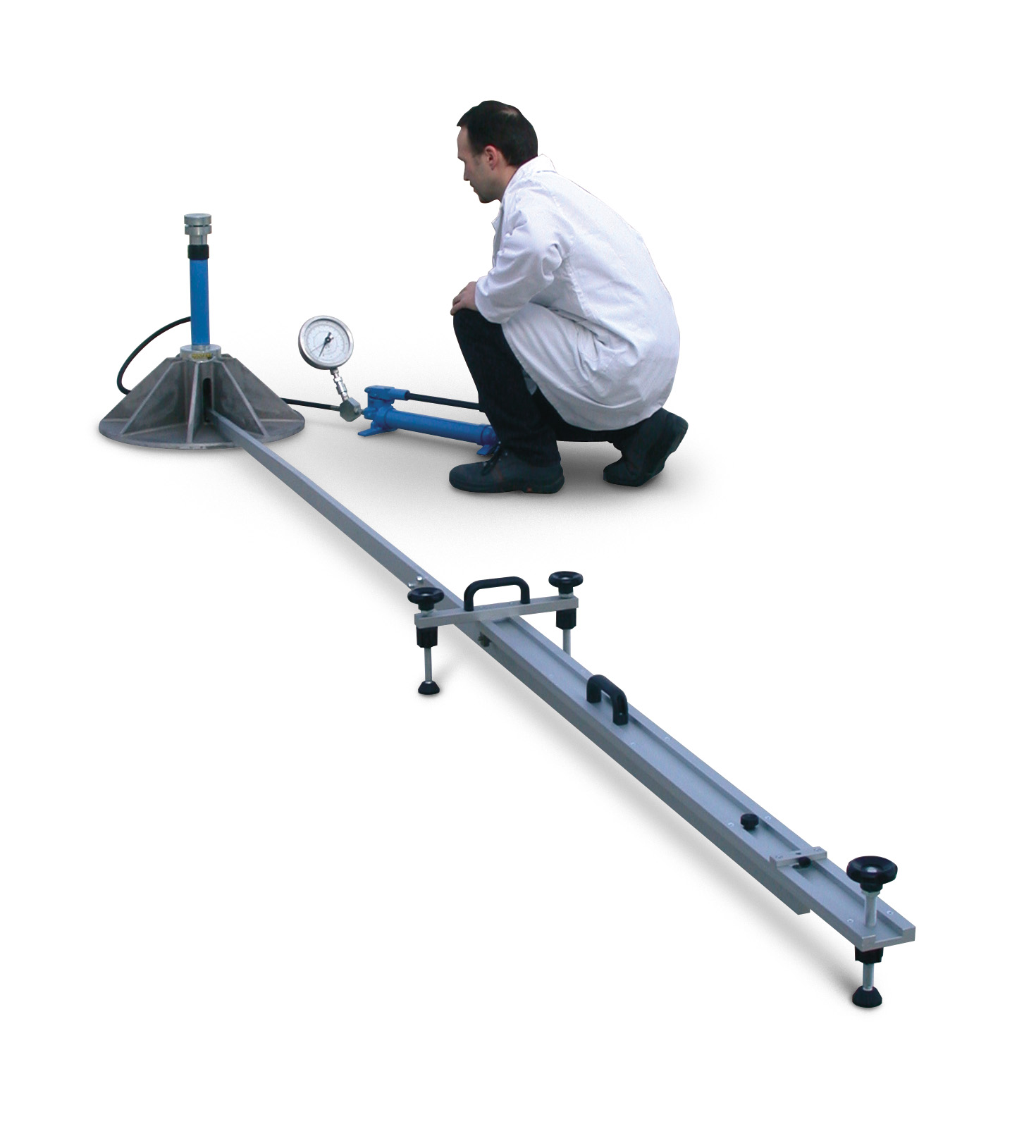

To determine the static deformation of flexible road pavement (EV2) in the centre of the loading plate.
Used with the Benkelman Beam apparatus mod. B100 and B102.
The equipment consists of:
B103-10 Bearing plate 600 mm diameter cast aluminium with reinforcing ribs and coupling device and handles for transport.
S225-01 Hydraulic loading jack 200 kN capacity, complete with hand pump, rubber pipe with fast connector, set of extension rods of different lenghts, carrying case.
S225-02 Precision pressure gauge 0 - 200 kN, div. 1 kN
S226-13 Upper spherical seat.
Total weight: 70 kg approx
Note: each item can be ordered separately.
