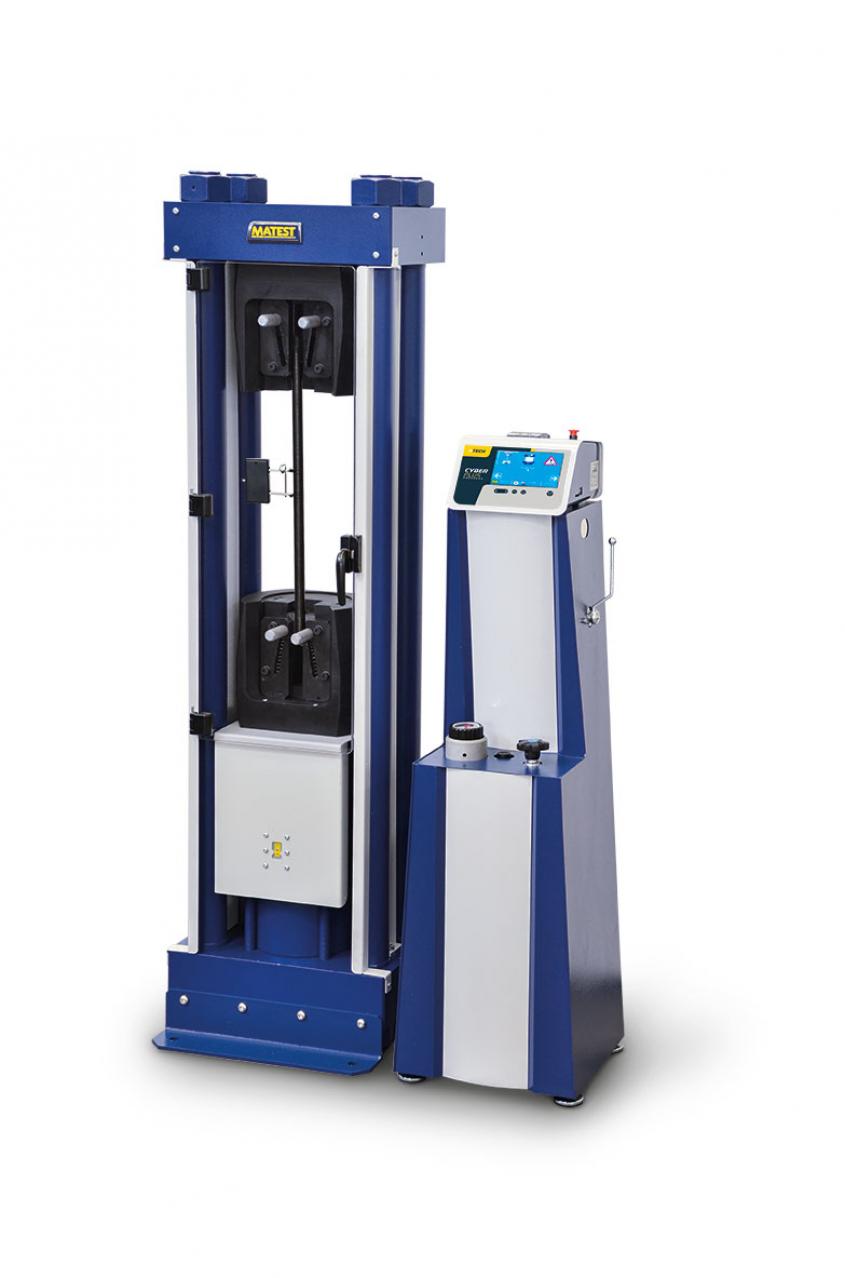

This tensile/compression machine is utilized to carry out tensile tests on steel reinforcement bars from diameter 4 to 25 mm and flat max. 25x15 mm.
It can also carry out compression tests on concrete cube specimens max. side 150 mm and cylinders max. diameter 160x320 mm.
The new and sturdier four-column loading frame is over-dimensioned to assure high stability. The loading piston, double action, is rectified and lapped. The piston is foreseen to a hydraulic max. and min. piston stroke’s security device, by avoiding any damage risk due to wrong manipulations of the unit. The heads holding the jaws are obtained from only one block of high-resistance steel. The “V” auto clamping shape allows a quick and practical grab on of the specimen and the grips locking system ensures safe bar handling after failure. The machine is supplied complete with a pair of jaw-holders but without hardened jaws and accessories for tensile and compression tests, which must be ordered separately (see accessories).
