Test Standard Category

H003-18 Extensometer for wire strands

( Steel )

  • UNI 7676
  • ASTM A1061

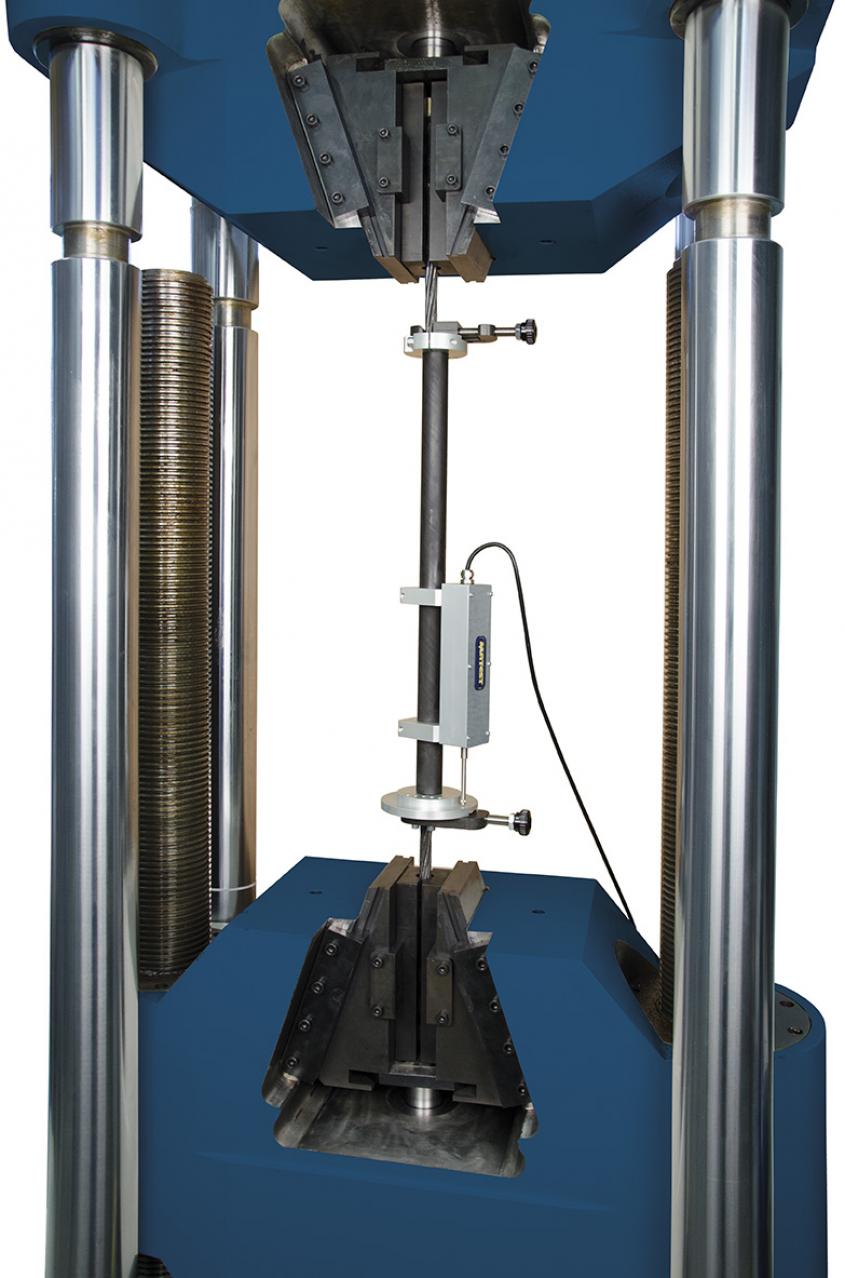

This instrument is directly applied to the sample through two coaxial telescopic hardened tubes by measuring the elongation of the strand up to failure.
It can be used only with the models H001BS, H001CS and H001DS.

Gauge length: 600 mm
Stroke: 50 mm
Precision: 0.001 mm
Specimen dimensions: strands 9.5; 12.7 and 15.2 mm

Dimensions: 105x630 mm
Weight: 1000 g
