  3. Monotonic Testing Machine - MTM 50
Test Standard Category
Monotonic testing machine Monotonic testing machine

B217 Monotonic Testing Machine - MTM 50

  • ASTM D6927
  • ASTM D8084
  • ASTM D8225
  • AASHTO T245
  • AASHTO T283
  • AASHTO TP124
  • AASHTO TP114

DISCONTINUED.

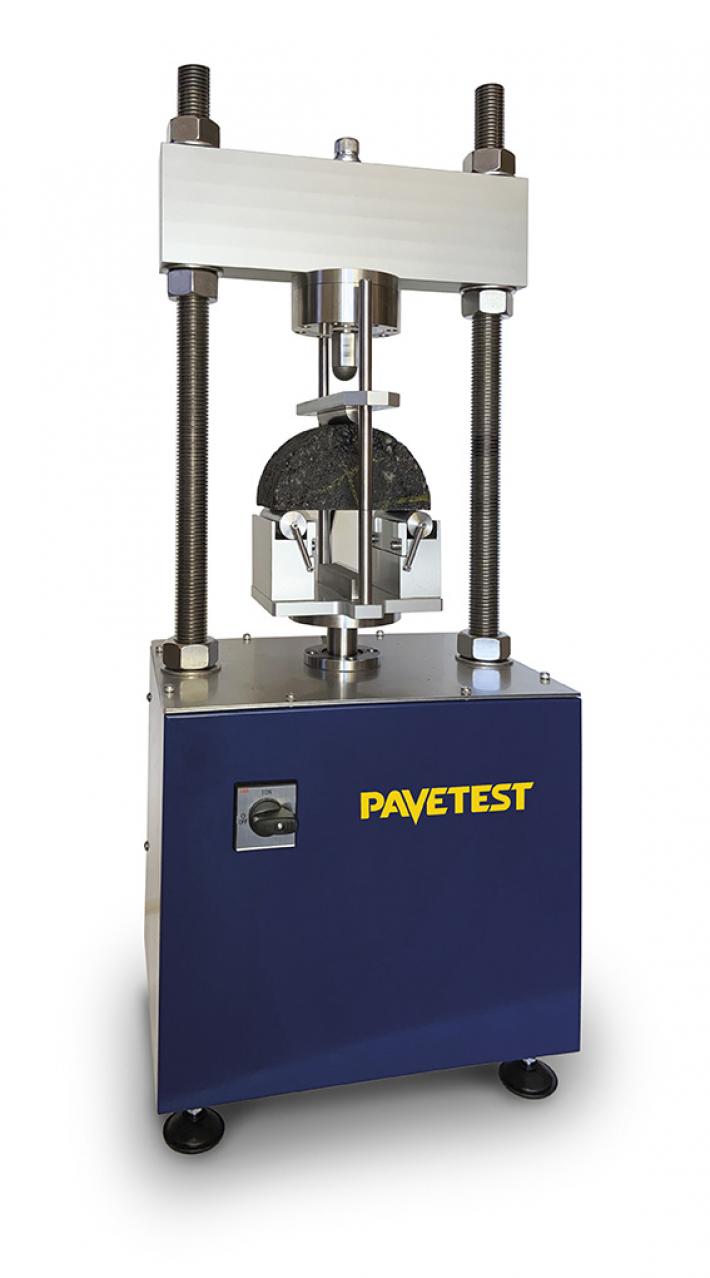

The Pavetest MTM-30/50 is a compact monotonic servo-hydraulic testing machine primarily designed to perform monotonic tests such as the IDEAL-CT and Semi-Circular Bending (SCB) test(s) at intermediate temperature and able to perform any displacement rate test.

In particular, throughout the duration of the test an extremely precise loading rate control is achieved through a (servo) closed loop control.

The MTM-30/50 with built-in acclaimed TestLab software, which caters to all level of operator experience, and Control and Data Acquisition System (CDAS), delivers unparalleled performance, real time control and ultimate versatility in acquisition and analysis, providing a flexible and user-friendly testing solution. Morover, the Excel base data analysis offers the operator the flexibility to implement alternative analysis and to customize reporting facilities.

Request information
  • Compact, robust load frame
  • Servo-hydraulic
  • Precise loading rate
  • PC user interface
  • Flexible programming & analysis
  • Maximum compression capacity: up to 50k
  • Load cell: 50kN
  • Max ram travel: 50 mm
  • Daylight between columns: 290 mm
  • Maximum vertical daylight: 300 mm
  • Adjustable testing speed from 0.01 to 300 mm/minute
