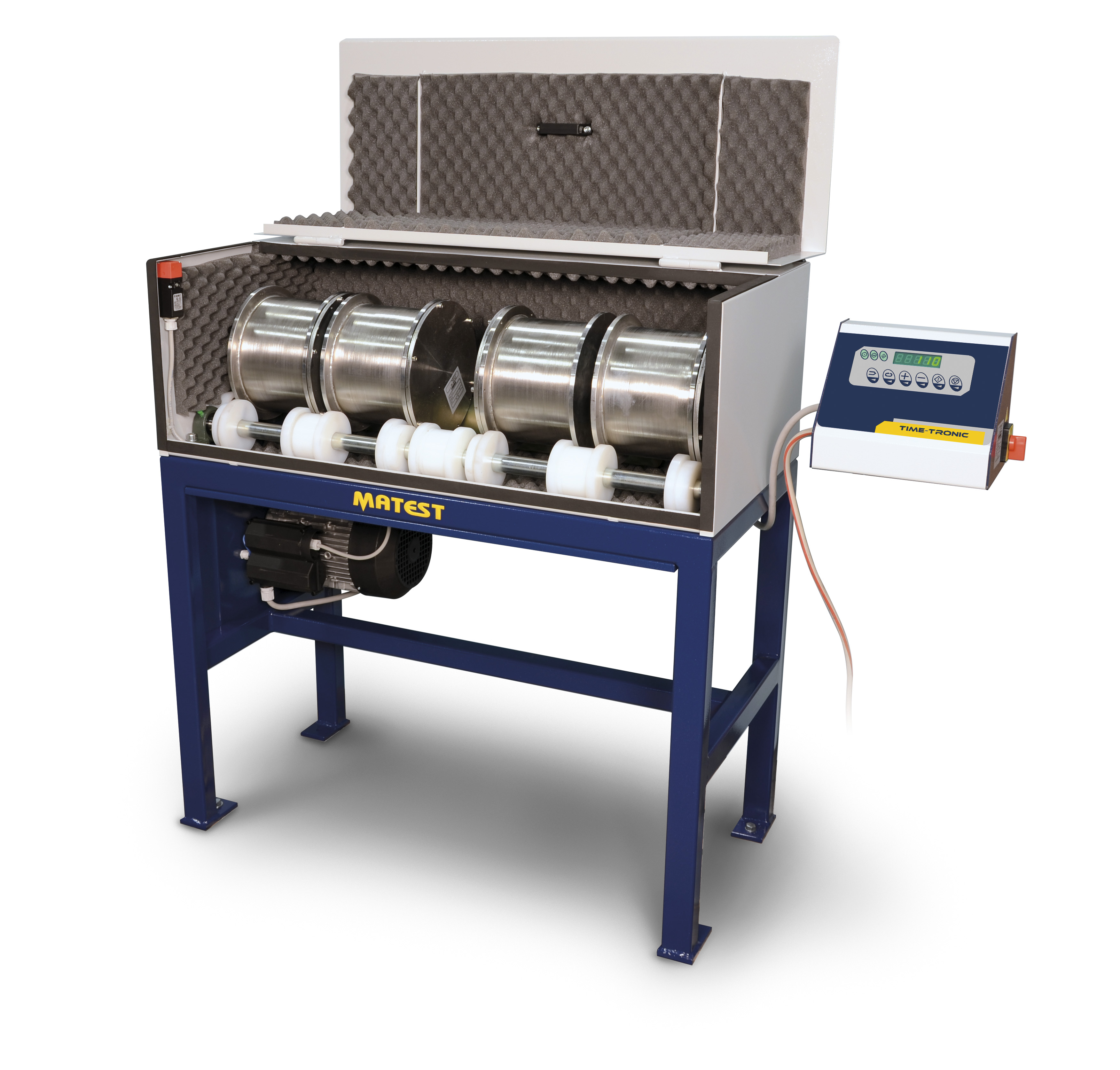

A077-01 Micro-Deval Testing Machine with Safety Cabinet (CE Compliant)

( Aggregates-Rocks )

  • EN 1097-1
  • EN 13450
  • NF P18-576
  • UNE 83115
  • CNR N. 109
  • ASTM D7428
  • ASTM D6928

The CE version of the Micro-Deval Testing Machine offers the same high-performance functionality as the standard model, with the addition of a robust safety cabinet for full compliance with CE safety directives.

The cabinet is made of sheet steel, internally lined with soundproofing material to reduce operational noise, ensuring a quieter working environment in the lab.
A microswitch safety system is integrated: when the door is opened during operation, it automatically stops the rotation of the drums, preventing accidents and allowing safe inspection or maintenance.

Ideal for laboratories needing to meet CE requirements without compromising test quality or operator comfort.

The testing cylinders and steel spheres are not included and must be ordered separately based on the applicable standard.

Pedir información
Non sei loggato per vedere i manuali Entra
Parameter Value
Power supply 230V 1ph 50Hz – 1100W
Control system Digital counter (presettable)
Overall dimensions 1150 x 600 x 1150 mm
Weight Approx. 190 kg
Safety CE compliant with microswitch
Cabinet material Steel with soundproof lining
Cylinders and spheres Not included
  • Same core functions as the standard Micro-Deval model
  • Soundproof safety cabinet made of steel
  • CE compliant, ideal for EU markets
  • Automatic shut-off via door microswitch for operator safety
  • Reduced noise during operation
  • Digital control panel with revolution counter
  • Cylinders and spheres available as optional accessories
