A079-02 Deval Testing Machine with CE-Compliant Safety Cabinet

( Aggregates-Rocks )

  • NF P18-577
  • ASTM D2-33

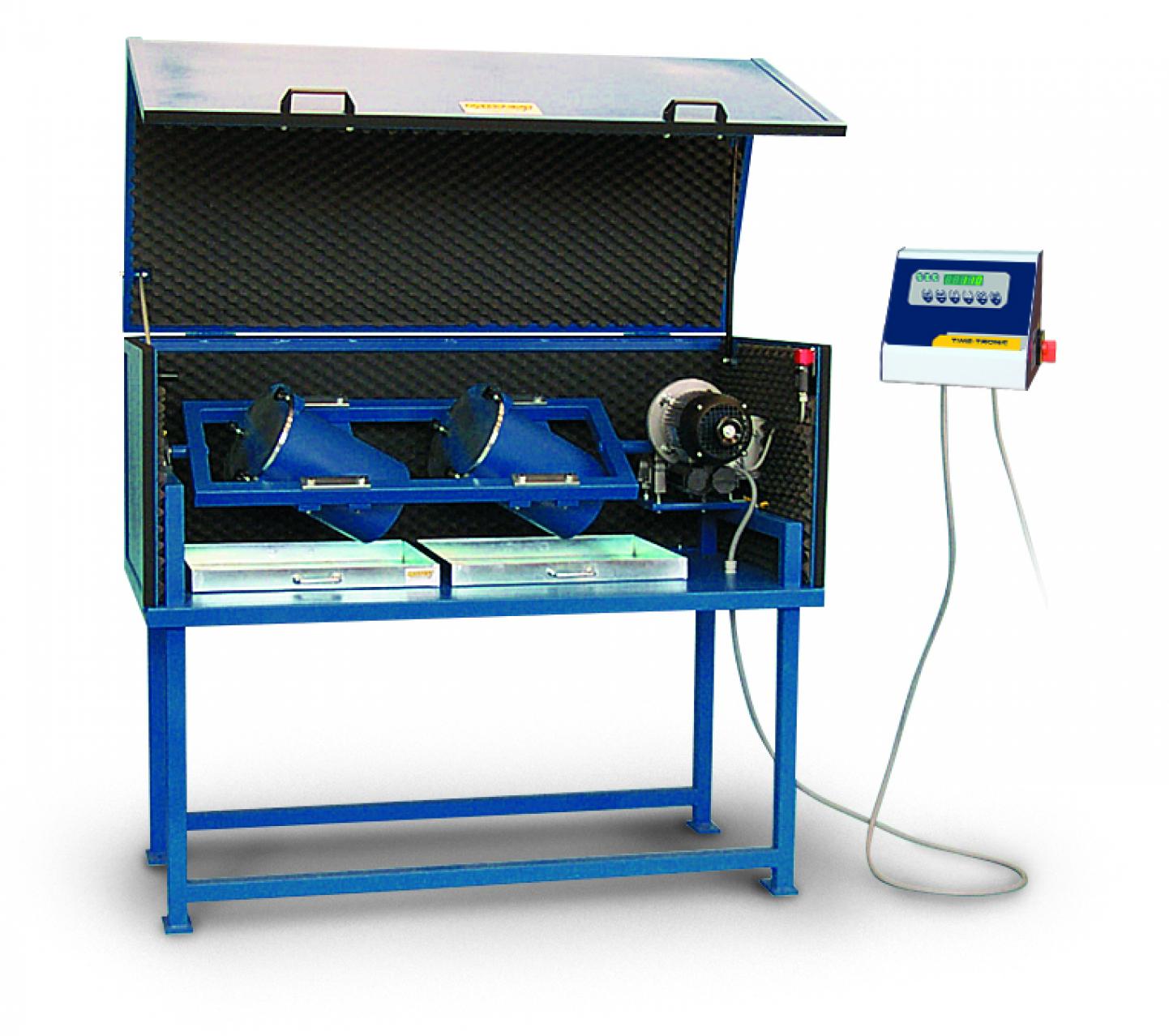

This version of the Deval Testing Machine integrates a CE-compliant safety cabinet, ensuring maximum protection and noise reduction during testing.

The cabinet is manufactured from sheet steel, internally lined with soundproofing material, and equipped with a microswitch system: when the door is opened during operation, the machine automatically stops to protect the user.

Designed for performing abrasion resistance tests on aggregates, the machine allows both wet and dry procedures, and includes two rotating cylinders, a digital control panel with automatic revolution counter, and two collecting pans.

This version ensures full compliance with the European safety regulations, making it suitable for laboratories in CE markets.

Pedir información
Parameter Value
Power supply 230V 1ph 50Hz – 750W
Safety system CE cabinet with microswitch
Number of cylinders 2
Control panel Digital, automatic counter
Dimensions (LxWxH) 1650 x 650 x 1400 mm
Weight Approx. 180 kg
