S210 KIT CBR machine, hand operated, field model

( Soil )

  • ASTM D1883
  • AASHTO T193
  • BS 1377:4
  • NF P94-078
  • CNR UNI 10009
  • EN 13286-47

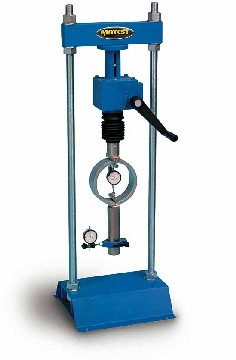

CBR loading machine, hand operated, field model

The load is applied through a mechanical jack with handwheel. The upper beam can be adjusted in height.

The S210KIT machine comprises:
S221 Conversion frame
S221-01 Mechanical jack 50 kN capacity
S370-10 Load ring 50 kN capacity
S212-01 CBR penetration piston
S376 Dial gauge 10x0.01 mm
S212-03 Dial gauge holder

Dimensions: 420x370x1180 mm
Weight: 65 kg approx.

NOTE:
This machine includes some common component (like for ex. the mechanical jack mod. S221-01). It is therefore possible to combine these components for different machines, with some economical advantage.
