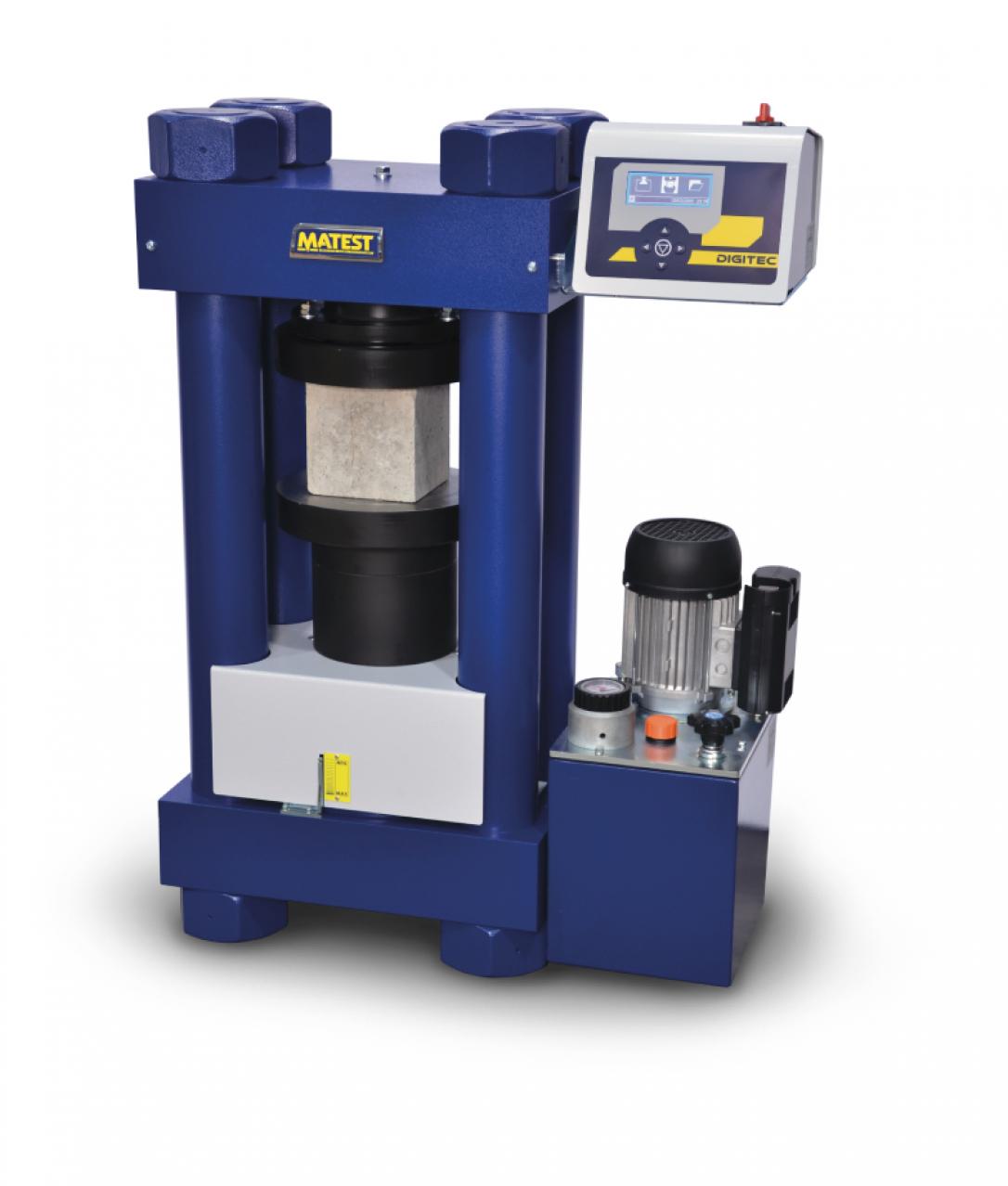

Concrete compression machine 1300 kN, semi-automatic, Digitec

Code: C024D

ASTM C39 AASHTO T22 NF P18-411 BS 1610 GOST 10180

Compression testing machine 1300 kN motorized with Digitec control unit, to test cylinders up to diameter 160x320 mm and cubes up to 150 mm side.

Compressive Strength

Max. vertical daylight: 336 mm
Horizontal daylight between columns: 270 mm
Compression platens Ø 216 x 30 mm
High stiffness and heavyweight 4-column frame (german-style).
Calibration accuracy: Class 1
Max. ram travel 55 mm approx.
Power supply: 230V 1ph 50Hz 750W
Dimensions: 710x400x920 mm approx.
Weight: 580...620 kg
