A059-02-KIT Electromagnetic Sieve Shaker – Multi-Diameter Ø 200–315 mm

( Aggregates-Rocks )
  • EN 932-5
  • ISO 3310-1

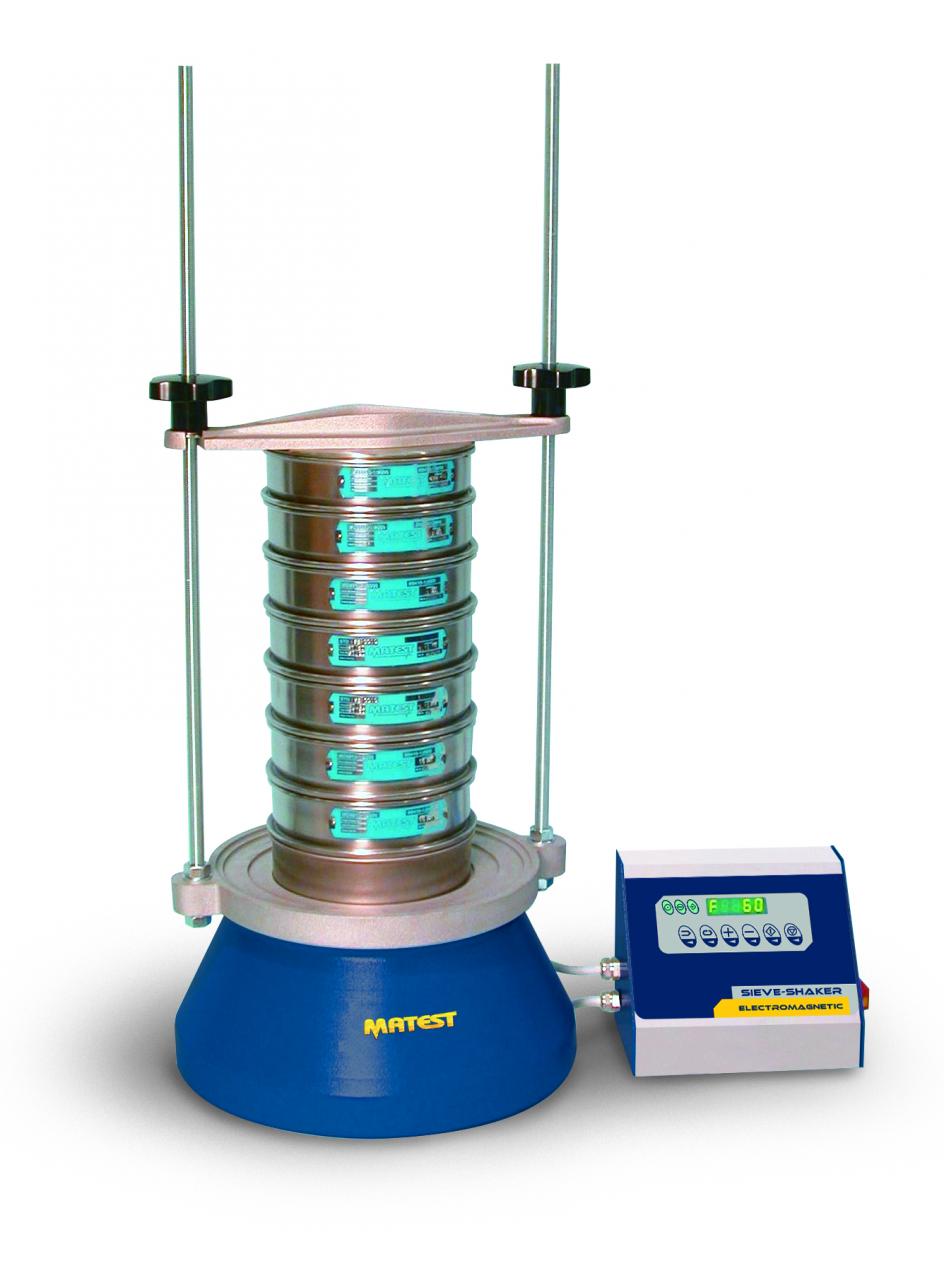

The A059-02-KIT is a high-capacity electromagnetic sieve shaker designed to accommodate a wide range of sieve diameters from Ø 200 mm to 315 mm, including 8” and 12”, making it ideal for laboratories requiring versatility and intensive use.

Driven by electromagnetic impulses, it performs a triple vibrating action —vertical, lateral, and rotational —ensuring optimal material stratification and high-precision separation, even for fine and cohesive particles.

The integrated digital microprocessor panel allows the operator to fully adjust timing, intensity, and vibration modes for maximum test control. The unit is also suitable for wet sieving, using the appropriate accessories (A046 / A047).

Request information
Non sei loggato per vedere i manuali Entra
  • Triple vibrating action: vertical, lateral, rotational
  • Compatible with multiple sieve diameters: Ø 200, 250, 300, 315 mm – 8” and 12”
  • Holds up to 10 sieves
  • Digital timer from 0 to 999 minutes
  • Adjustable vibration intensity and pause time
  • Continuous / intermittent operation modes
  • Optional wet sieving configuration (A046, A047)
  • Bench-top or wall-mounted control panel
  • Rugged build for continuous laboratory use
Parameter Value
Compatible sieves Ø 200, 250, 300, 315 mm – 8”, 12”
Maximum sieve capacity Up to 10
Power supply 230V 1ph 50Hz – 450/750W
Dimensions (LxWxH) 380 x 440 x 1080 mm
Weight Approx. 65 kg
