Test Standard Category

A061N High Capacity Sieve Shaker

( Aggregates-Rocks )

  • EN 932-5
  • ISO 3310-1

The High Capacity Sieve Shaker is designed to handle large quantities of material with precision and durability. Ideal for aggregate laboratories and industrial settings, this robust unit is perfect for applications requiring high-volume, high-frequency sieving.

The shaker holds six screen trays and comes equipped with a dust pan as standard. Trays are not included and must be ordered separately according to the desired sieve apertures.

Please note: this model requires an additional safety protection kit to comply with CE market regulations.

Request information

Physical and geometric properties

  • EN 933-10
  • EN 933-2
  • EN 932-5
  • ISO 3310-1
Non sei loggato per vedere i manuali Entra
  • Designed for bulk material sieving
  • Compatible with 6 screen trays + dust pan
  • Dust pan included
  • Rugged and stable structure for continuous operation
  • Ideal for coarse aggregates and high-volume testing

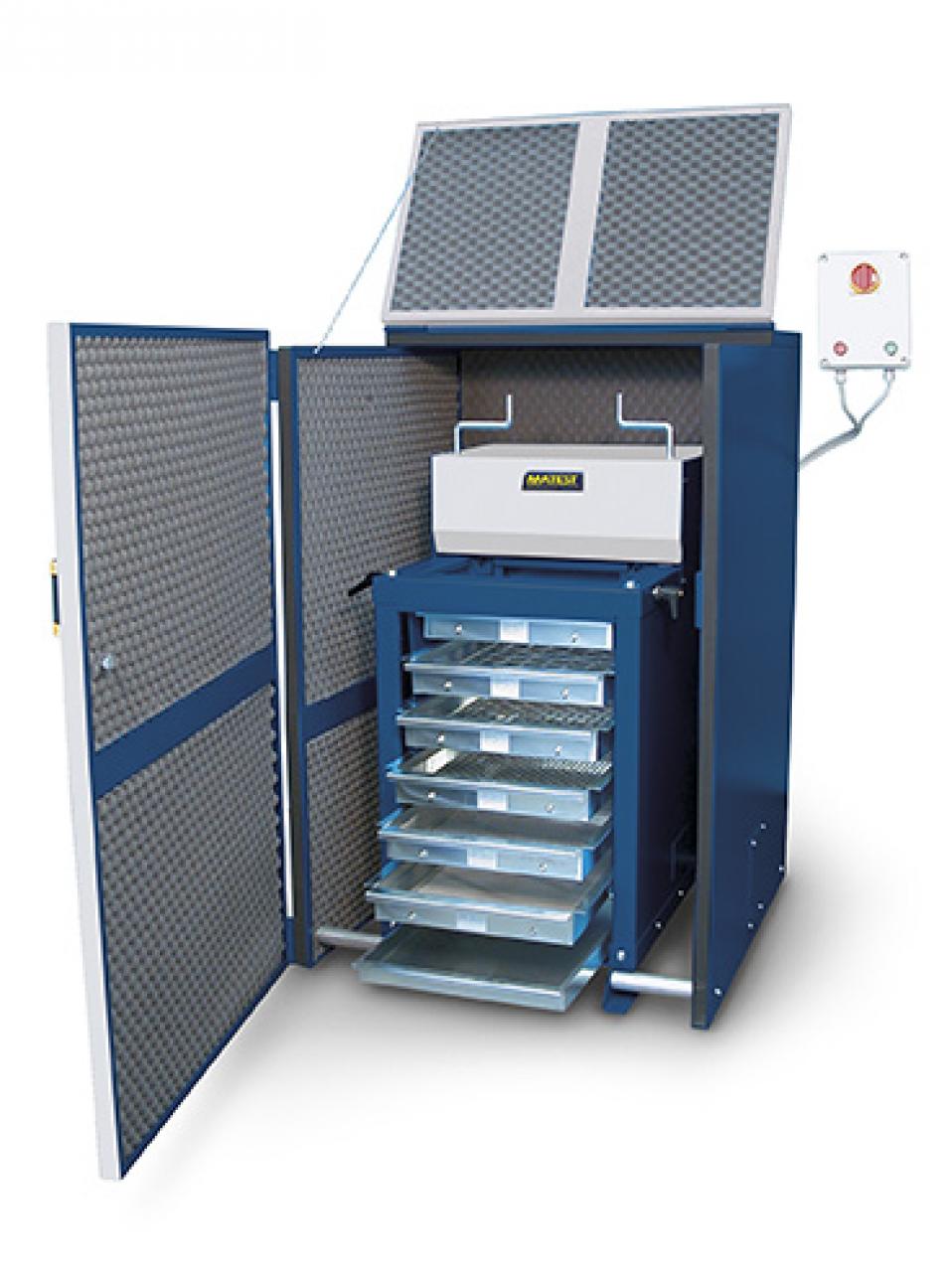

  • CE compliance achievable with optional protection guard
Parameter Value
Power supply 230V 1ph 50Hz – 750W
Maximum number of trays 6 + 1 dust pan
Dimensions (L x W x H) 585 x 790 x 850 mm
Weight Approx. 180 kg
CE conformity Not compliant without protection accessory
