A147

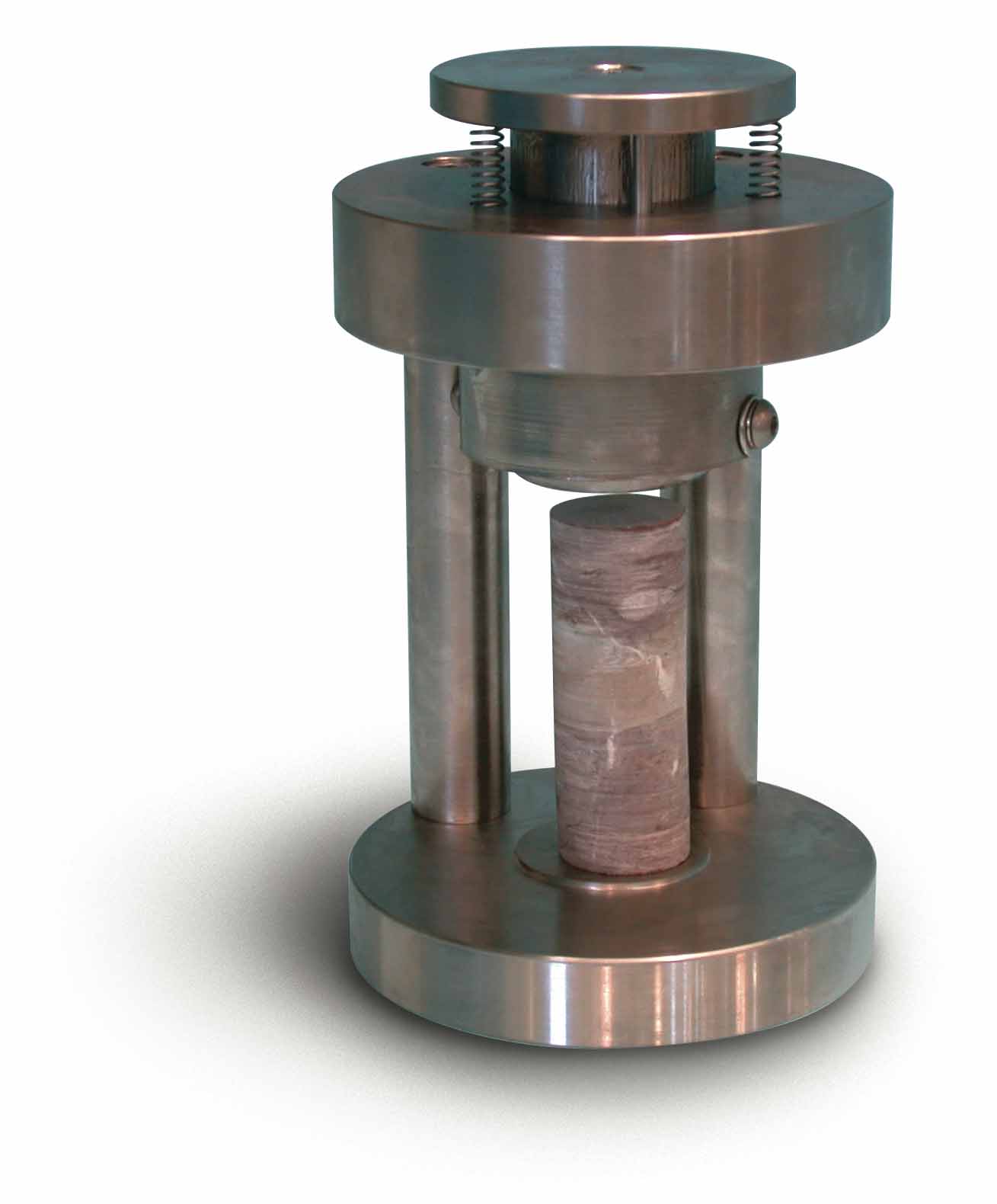

Compression device for rock cores
(
Aggregates-Rocks
)
Used to perform compression tests on rock core specimens having max. diameter 55 mm and height between 95 to 110 mm.
The loading piston is sustained by two springs; the upper compression platen is fitted with a spherical seat; the lower platen is fitted to the base.
- Maximum load capacity: 100 kN
- Piston’s stroke: 20 mm
- Platens diameter: 55 mm
- Vertical daylight: max. 112 mm, min. 92 mm
- Platens hardness: 60 HRC
- Overall dimensions: Ø 151 by height 249 mm
- Weight: 10 kg approx.
