Test Standard Category

B054 Ductilometer

( Bitumen )

  • EN 13589
  • EN 13398
  • ASTM D113
  • AASHTO T51
  • NF T66-006
  • NLT 126
  • UNE 7093
  • CNR N. 44

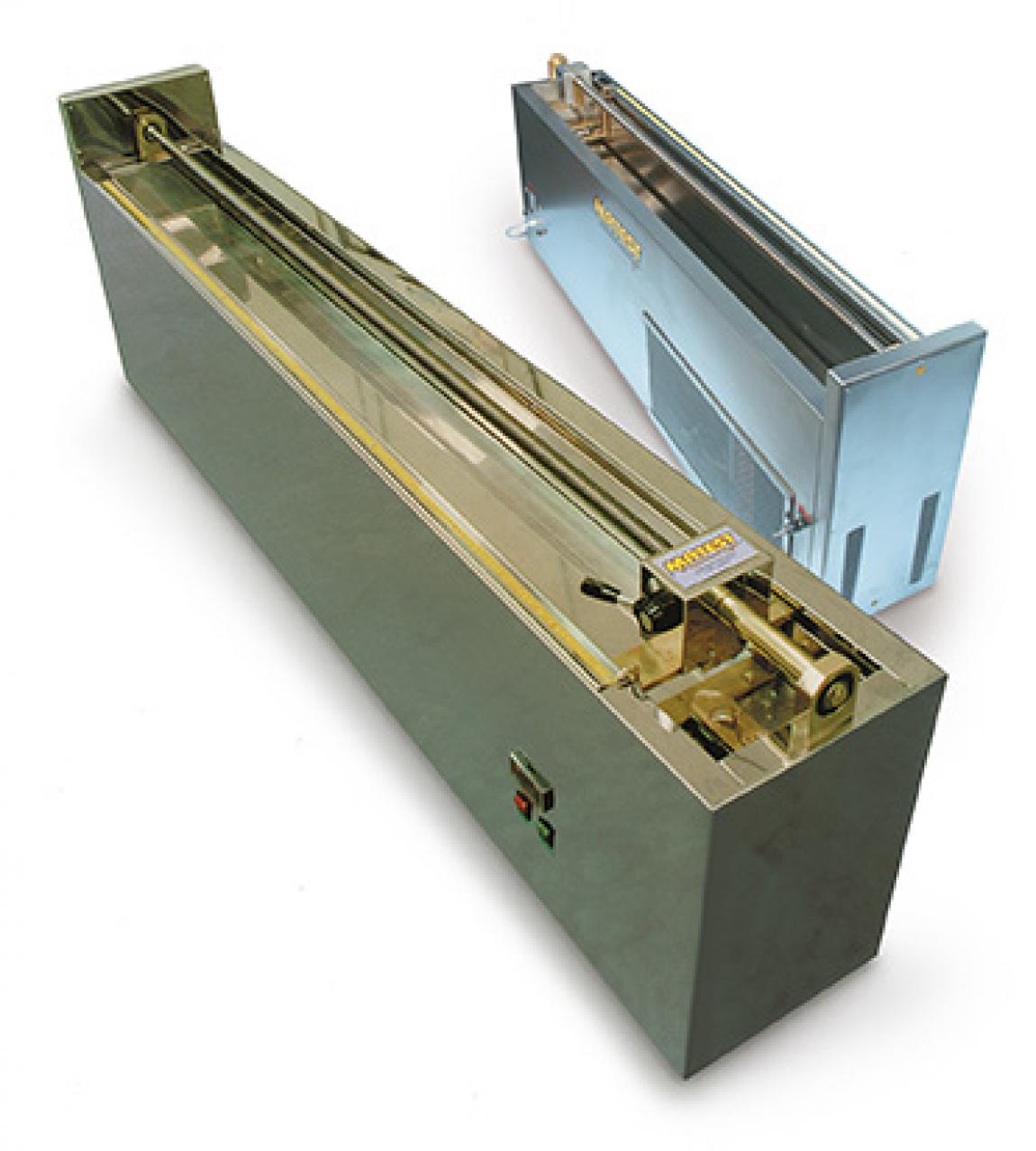

Used to determine the bituminous ductility, that is the distance to which a briquette of molten bitumen can be extended under controlled conditions, before breaking. The Ductilometer basically consists of a moving carriage travelling along guide ways. The carriage is driven by an electrical motor, inside a large tank is fitted with digital thermostat, immersion electric heater, cooling coil for cold water circulation and pump unit.

Max. traction force: 300 N, accuracy: ± 0.1 N
The ductilometer can accept up to 3 specimens simultaneously.
Supplied complete except for the briquette mould and base plate that must be ordered separately (see accessories).

Power supply: 230V 1 ph 50 Hz 750 W
Dimensions: 1880x360x680 mm
Weight: 95 kg
