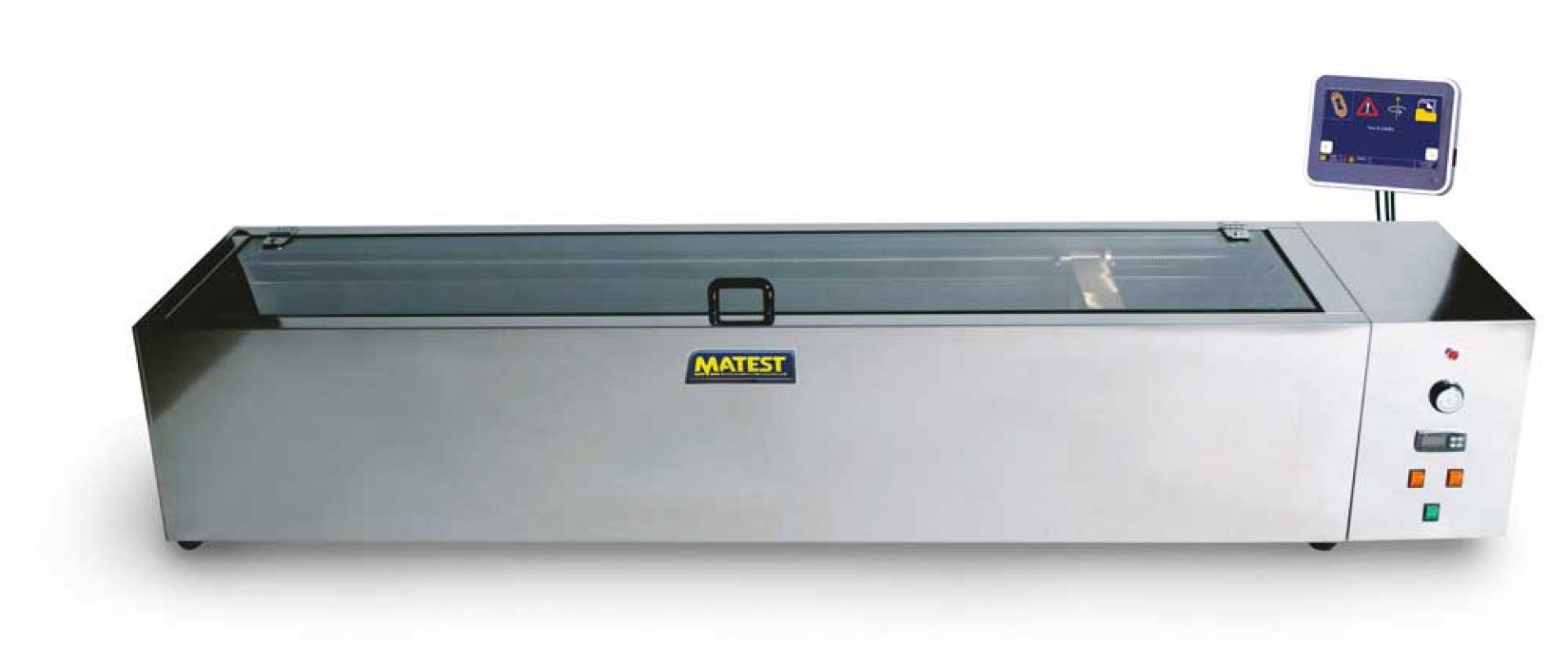

B055-20N Ductilometer with Data Acquisition

( Bitumen )

Ductilometer with data acquisition high performance
Developed and manufactured for ductility tests and for research purposes.

  • Stepper motor providing a variable speed range from 1 to 400 mm/min with digital displacement measuring system.
  • Up to 3 samples can be tested simultaneously.
  • One electric high capacity load cell 500 N (possibility to install later on up to 3 cells directly by the end user).
  • Automatic positioning of start test
  • Visualization of the elongation in mm
  • Visualization of the load/elongation chart
  • Max elongation recording before breaking failure
  • Absorbed energy elaboration
  • Temperature setting and visualization of the test execution with continuous recording during the test
  • Test certificate print-out (USB connector or local printer)
  • Cyber-plus Progress data acquisition and processing system colour touch screen display
  • Software UTM NET to unload and visualize test data to PC.
  • Glass upper cover.

    Supplied without briquette mould and base (see accessories).

    Power supply: 230V 1ph 50Hz 1000W
    Dimensions: 2140x400x650mm
    Weight: 110 kg approx.
