  3. CDAS2 Control and Data Acquisition System - 8 channels
Test Standard Category

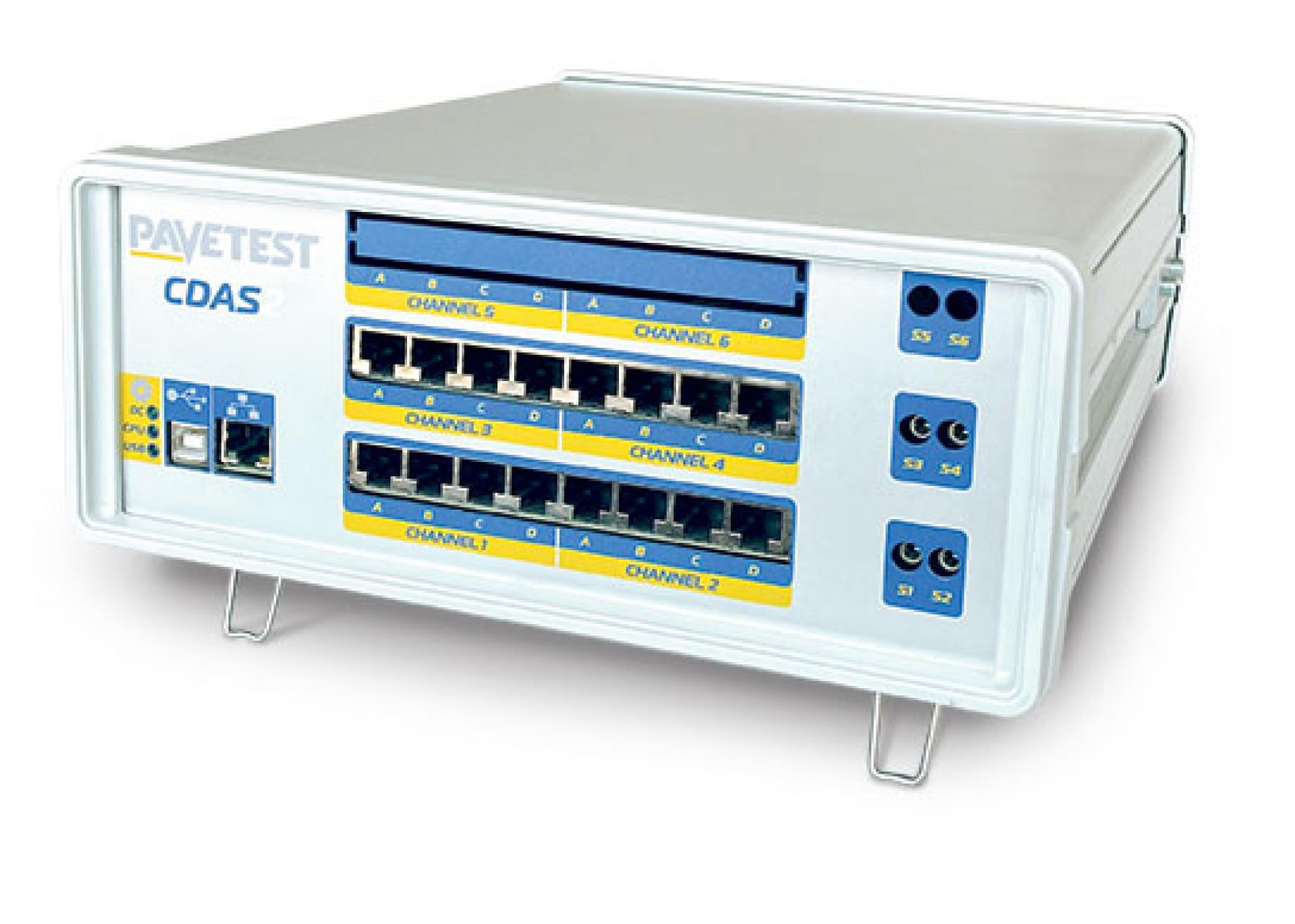

B209-08 CDAS2 Control and Data Acquisition System - 8 channels

Same as B209-16 but with 8 Channel CDAS2 - Acquisition 8 CH, 24-bit resolution:

  • Sampling rate up to 200 kHz (all channels)
  • Smoothing up to 64 times over-sampling
  • Calibration automatically on power up
  • Control Axis 2
  • Communication via USB or Ethernet

Dimensions: 110(h) x 325(d) x 265(w) mm
Power Supply: 90-264V 50-60Hz 1ph 240W
Weight: 5 kg approx.

Request information
  • Directly communicates with the TestLab software, providing automatic test execution and data processing.
  • Compact high-reliability data acquisition and control.
  • Up to 5 kHz data acquisition and feedback control provides excellent waveform fidelity.
  • Up to 64 times, oversampling gives superior low-noise performance.
  • Normalized (±10 V) analogue data acquisition inputs provide flexibility to use any transducer in any channel.
  • Automatic recognition of transducers and upload of calibration files.
