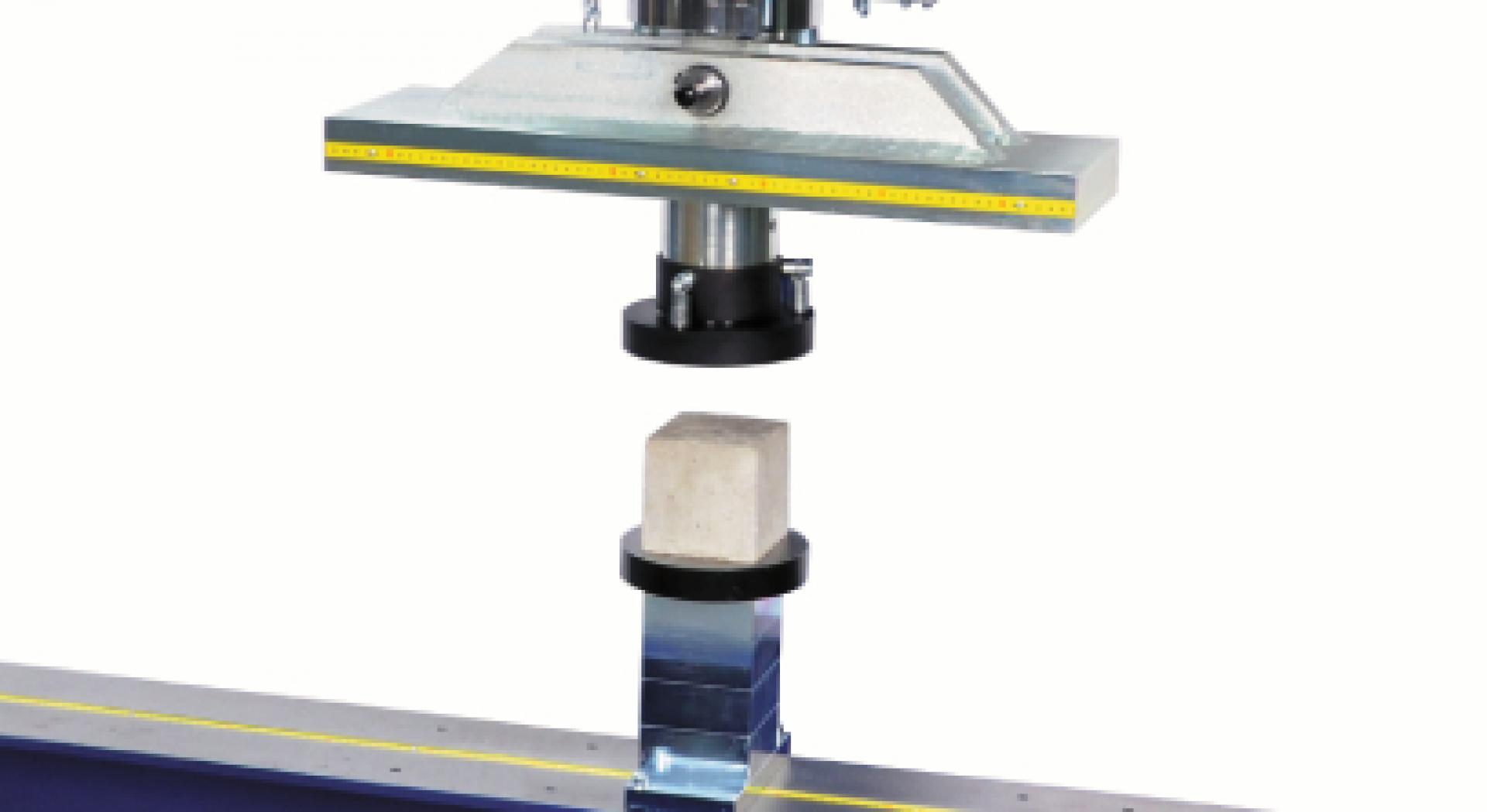

The multipurpose (flexural) frame can be equipped with Lower platen and Upper spherically seated platen, having dia. 165 mm by 30 mm thick, to perform compression tests on low strength and small size specimens.
To be used with the four distance pieces C095N-18.
The vertical useful light is from 350 to 178 mm (68mm with piston excursion).
The device can be used also for compression tests on mortar specimens (by using suitable devices such as E170), splitting tensile tests (by using suitable C100, C103 etc. devices), clay block flexural tests (device C093-11).
Weight: 20 kg approx
