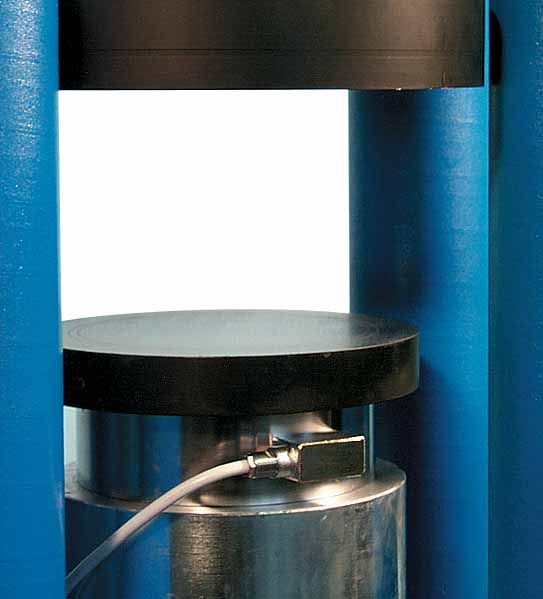

Complete with strain gage load cell, cables, fitted on concrete compression testing machines equipped with a digital display measuring system.
This solution eliminates the weights of the piston and lower compression platen, paking set frictions etc., granting very high accuracy (Class 1; max. error within ± 1%) in the measuring range 30...300 kN.
To be placed under the lower compression platen.
Height: 70 mm.
