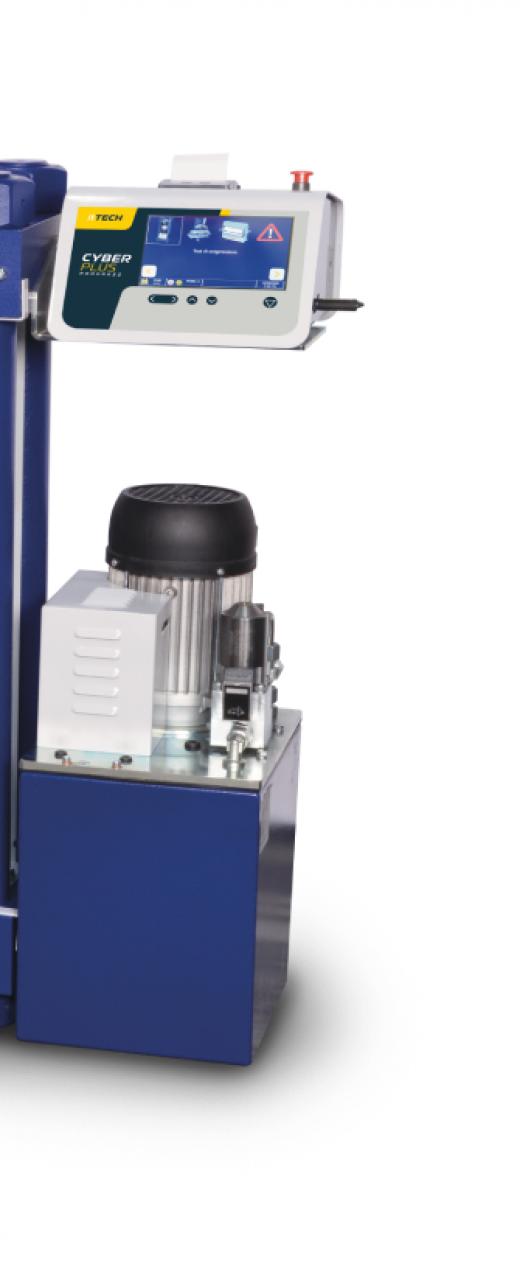

C104N Servo-Plus Progress | Eight channels control unit, automatic

( Concrete Aggregates-Rocks )

8-channel servo-controlled unit for a fully automatic execution of the test. The machine comprises:

  • Cyber-Plus Progress C109M data acquisition system
  • Multi-piston electric pump with variable flow (see mod. C114AUTO) driven by a microprocessor (reliable and noiseless system, also for intensive and extended use)

When the Cyber-Plus Progress controller (C109M) is paired with an automatic pump (C114AUTO), the two together take the code C104N. Also available in a stand-alone version (pyramidal shape) if ordered as C104NP.

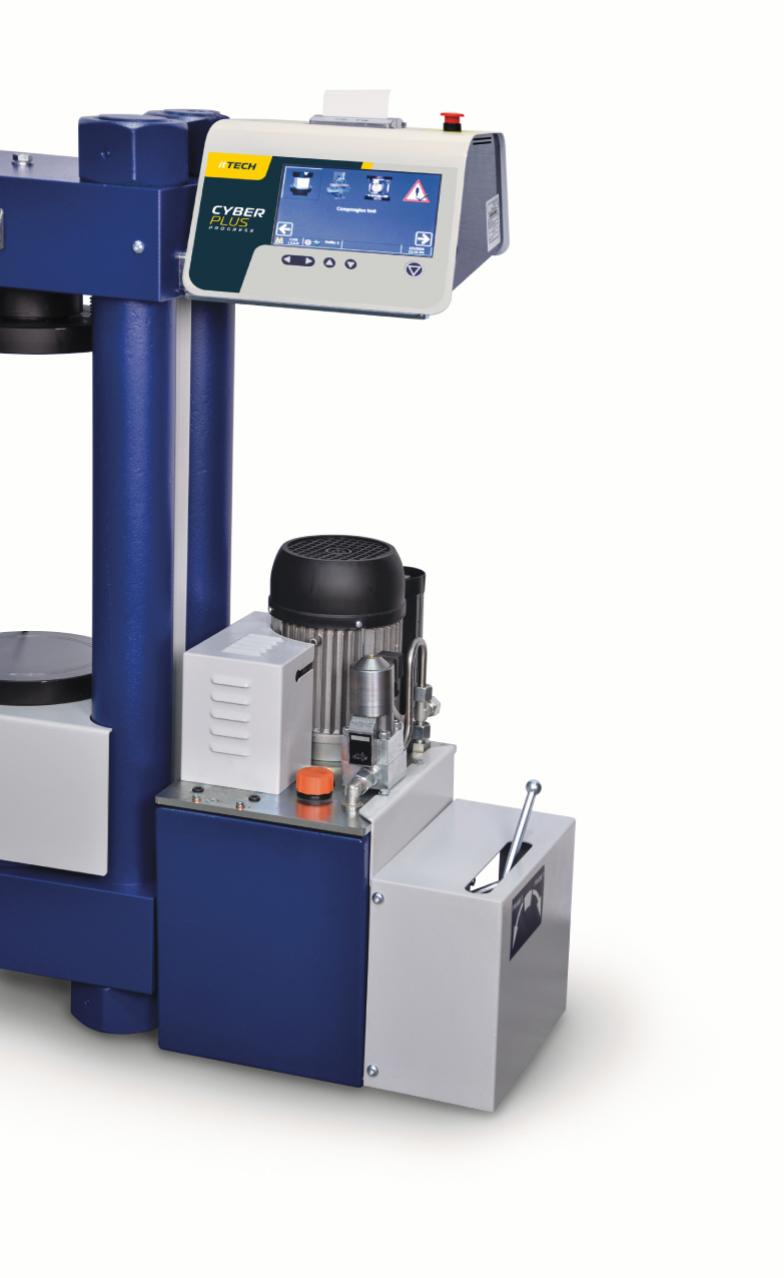

C104-01N SERVO-PLUS PROGRESS FOR TWO FRAMES
Same as model C104N but comprises also the three-way valve for the connection of a second frame.

C104-02N SERVO-PLUS PROGRESS FOR THREE FRAMES
Same as model C104-01N but comprises a second three-way valve for the connection of a third frame.

Power supply: 230V 1ph 50Hz 750W
Dimensions: 420x290x1120mm
Weight: 60 kg approx.

Request information
Non sei loggato per vedere i manuali Entra
  • More intuitive interface which simplifies the use of the machine (test begins after a few simple inputs)
  • Greater calculation ability and data visualization (on board charts and graphic print-outs)
  • High management capacity for the multilingual framework and international settings (date and time, decimal units, unit of measure).
  • Elastic software which allows the installation of new tests when desired.
  • Profile configuration manager
  • Configuration and calibration supervision of the analog channel
  • Alarms manager
  • Ethernet parameters configuration
  • International settings configuration
  • Hardware diagnosis functions
  • Functions for the software update and licenses
  • Execution of tests through parameters set up customization
  • Several levels of protection (passwords) to prevent the accessibility to the configuration menus by unauthorized staff.
  • 4 channels for semi-automatic models and 8 channels for automatic models accepting load, pressure, displacement and deformation sensors
  • 10 configuration profiles for a potential of 40 or 80 storable calibrations for the immediate use of multiple sensors
  • Channels resolution: 24-bit
  • Control frequency: up to 1 kHz
  • Sampling frequency: up to 2 kHz
  • Simple and immediate parameters are set up and test execution through a touchscreen interface
  • Easy firmware maintenance and update via USB
  • Real-time display of time, load, deformation, displacement and graph simultaneously
  • Selectable measuring system, international or imperial
  • Languages: English, Italian, French, German, Spanish, Portuguese, Polish, Greek, Dutch, Ukrainian, Romanian, Czechoslovakian
  • LIMS compatible through SmartLab
  • The operator interface is composed of a touchscreen display of 800x480 pixels and a 5-button keyboard for use also with gloves
  • Electronic and mechanical safety means such as maximum calibration threshold, thermal protection of the motor and other settable alarms
  • 2 USB ports for unlimited storage memory and connection of external devices such as bar code scanner, keyboard and mouse
  • LAN port for remote control through the PC and for network connection which allows direct access to the USB memory
  • Class 1 starts from 10% of the full scale according to ISO 7500-1 (on request also from 1% of the full scale).
  • Rapid approaching, touching on and breaking of the specimen under direct pump control (Servo-Plus C104N)
  • Automatic control of the pace rate (Servo-Plus C104N)
