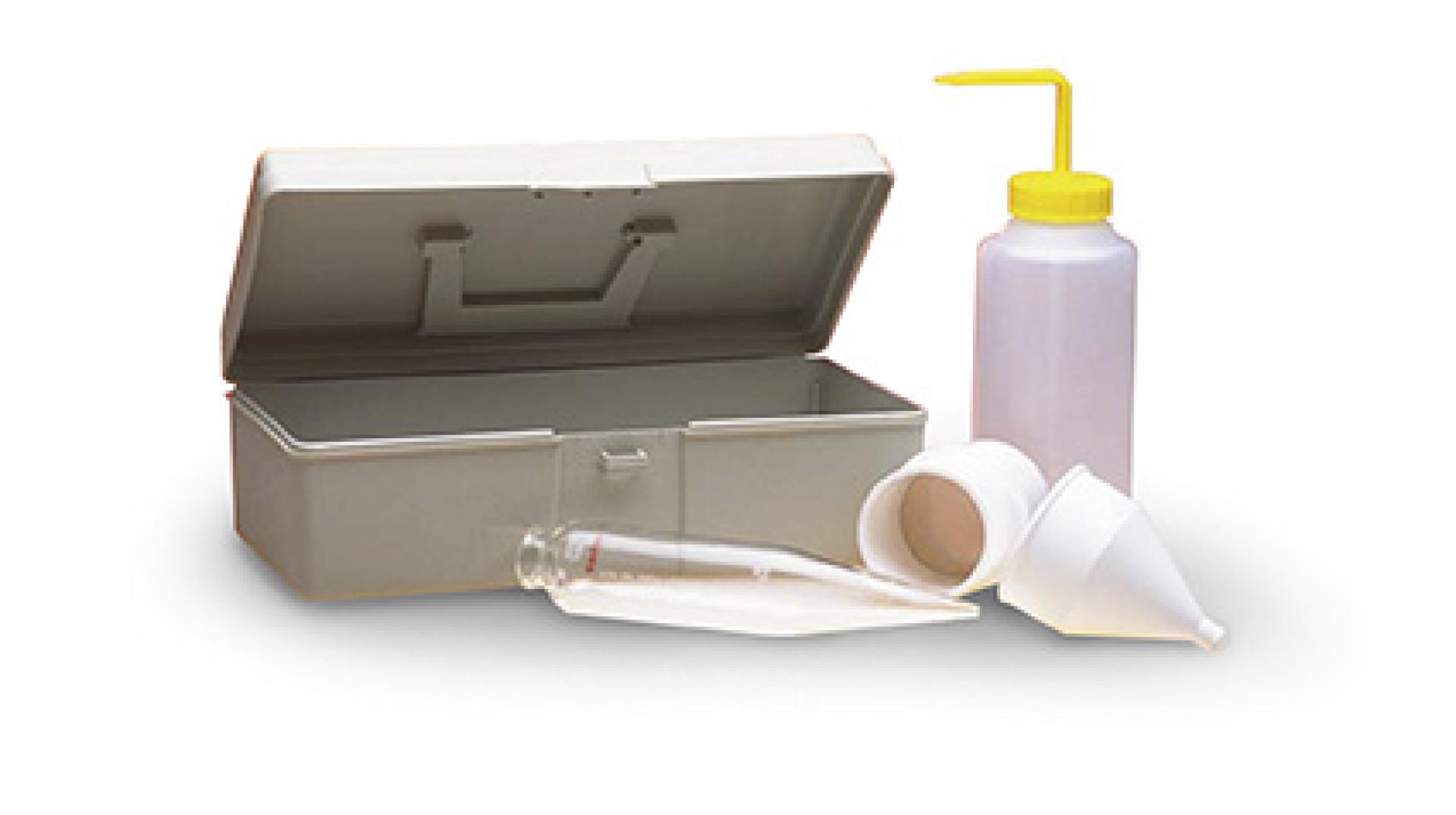

The Sand Content Kit is a simple, accurate and inexpensive sieve analysis apparatus for determining the sand content of drilling muds.
The kit consists of a special 200-mesh sieve 2.5” in diameter, fastened inside a collar upon which a small funnel is fitted on either end.
This is used with a 10 ml glass measuring tube, graduated to read from 0 to 20% the percentage sand by volume.
The collar and funnel are made of polyethylene and the screen is made of brass. A 500 ml wash bottle and carrying case are included.
Weight: 1500 g
