Test Standard Category

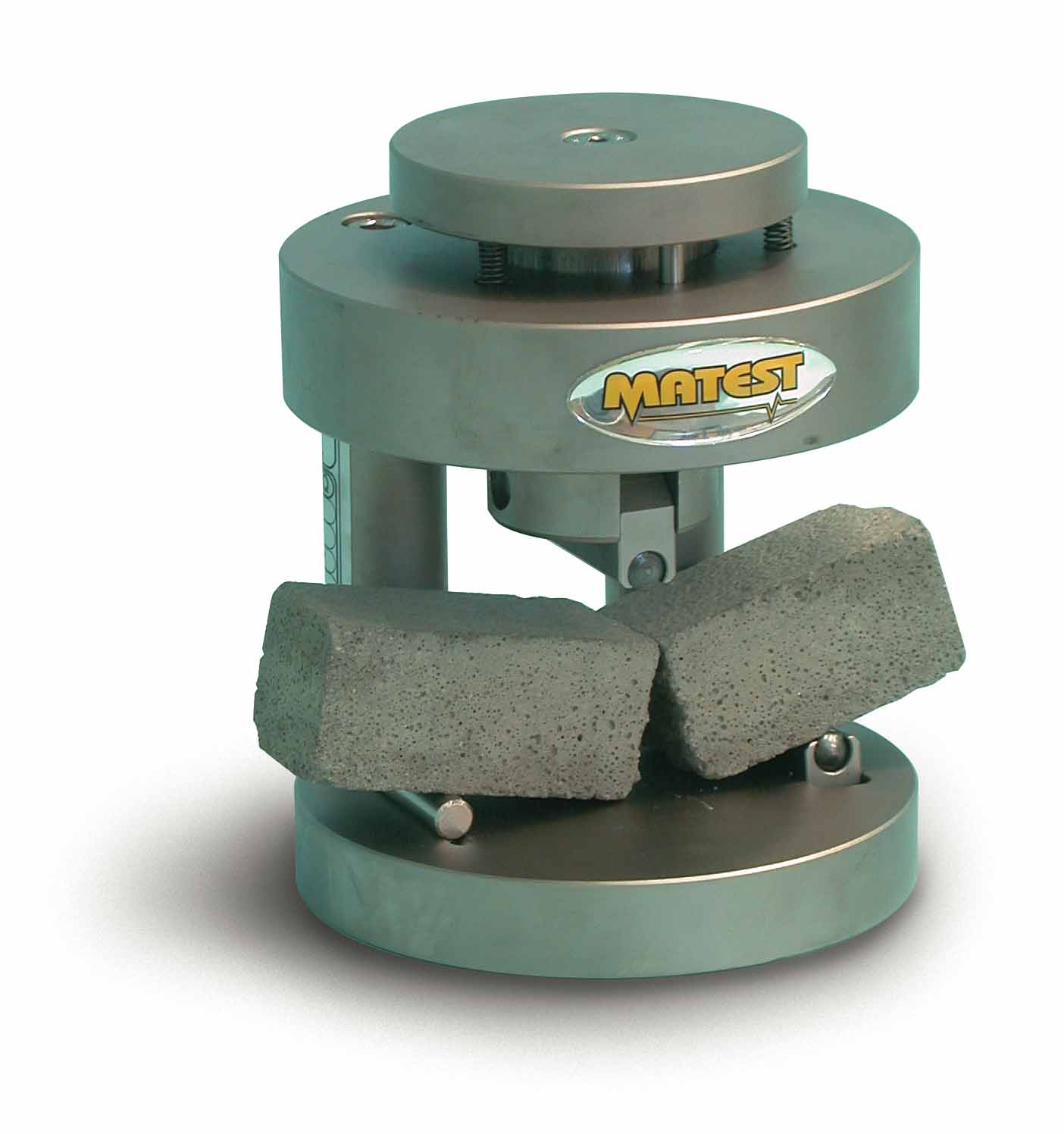

E172-01 Flexure devices for prisms

( Cement-Mortar )

  • EN 196-1
  • EN 1015-11
  • DIN 1164
  • ISO 679
  • GOST 26798.1
  • ASTM C348

Upper bearer is seat ball assembled. The distance between lower bearers is 100 mm and one of them has a spherical seat. Cadmium plated for rust protection.

Dimensions: 160x153xh185 mm
Weight: 11 Kg

Three models are available, according to different Standards:

  • E172-01: Flexure device for 40.1x40x160 mm prisms, EN 196-1 | EN 1015-11 | DIN 1164 | ISO 679
  • E172-01GO: Flexure device for 20x20x100 mm prisms, equipped with bearers as requested by Russian standard GOST 26798.1
  • E172-02: Flexure device for 40x40x160 mm prisms. Lower bearers have distance of 119 mm as requested by ASTM Standard C348.
