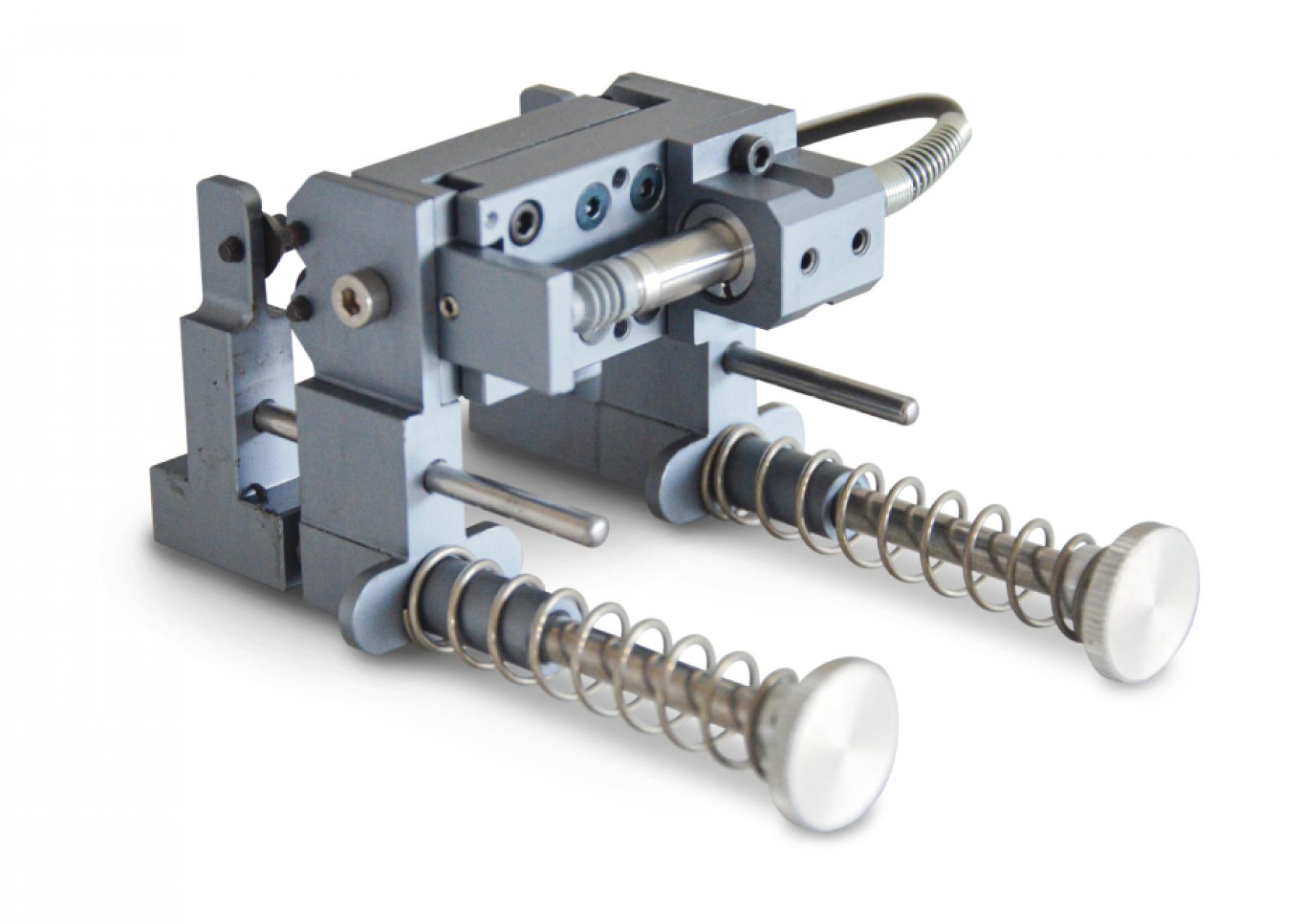

It comprises a mechanical slide and a transducer (LVDT type) which can be easily fixed on the sample with spring closures.
Thanks to two extension rods it is possible to adjust the gauge length.
As H014, this extensometer is suitable to measure the elastic elongation and must be removed before breakage.
Gauge length: 50/100/200 mm
Stroke: 10 mm
Precision: 0,001 mm
Specimen dimensions: rounds from 3 to 32 mm diameter, flats from 1 to 32 mm thickness and minimum width of 15 mm.
Minimum distance between the grips: 15 mm.
