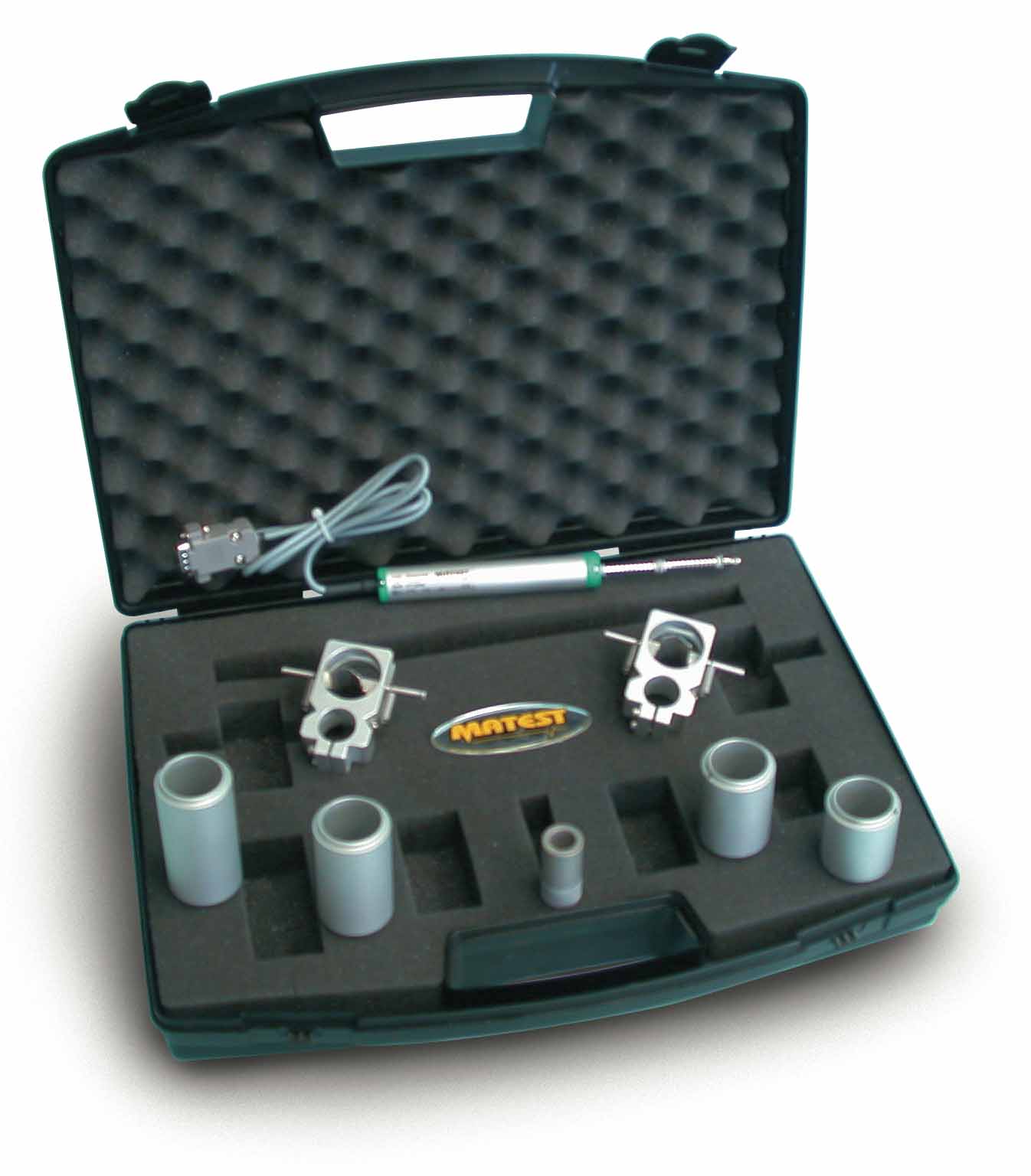

H014-06 Electronic Extensometers for Tensile Tests until Breakage

---

Thanks to their design, these coaxial extensometers can be left on the sample for the whole test duration until the specimen fails.
They are equipped with a potentiometric transducer and they include different base lengths.

Available models:

• H014-06 Extensometer for round specimens from 4.5 to 11 mm diameter. Transducer stroke: 25 mm
• H014-07 Extensometer for round specimens from 10 to 19 mm diameter. Transducer stroke: 50 mm
• H014-08 Extensometer for round specimens from 18 to 25 mm diameter. Transducer stroke: 50 mm
• H014-09 Extensometer for round specimens from 26 to 36 mm diameter. Transducer stroke: 50 mm
• H014-10 Extensometer for flat specimens, width max. 25 mm; thickness max. 10 mm. Transducer stroke: 50 mm
• H014-11 Extensometer for round specimens from 35 to 49 mm diameter. Transducer stroke: 50 mm
• H014-12 Extensometer for round specimens from 48 to 61 mm diameter. Transducer stroke: 50 mm
