S158-20 KIT
Complete sand equivalent test set - EN
(
Soil
)
- EN 933-8
- NF XP18-598
- CNR N. 27
- UNI 8520-15
- UNE 83131
ASSESSMENT OF FINE AGGREGATES

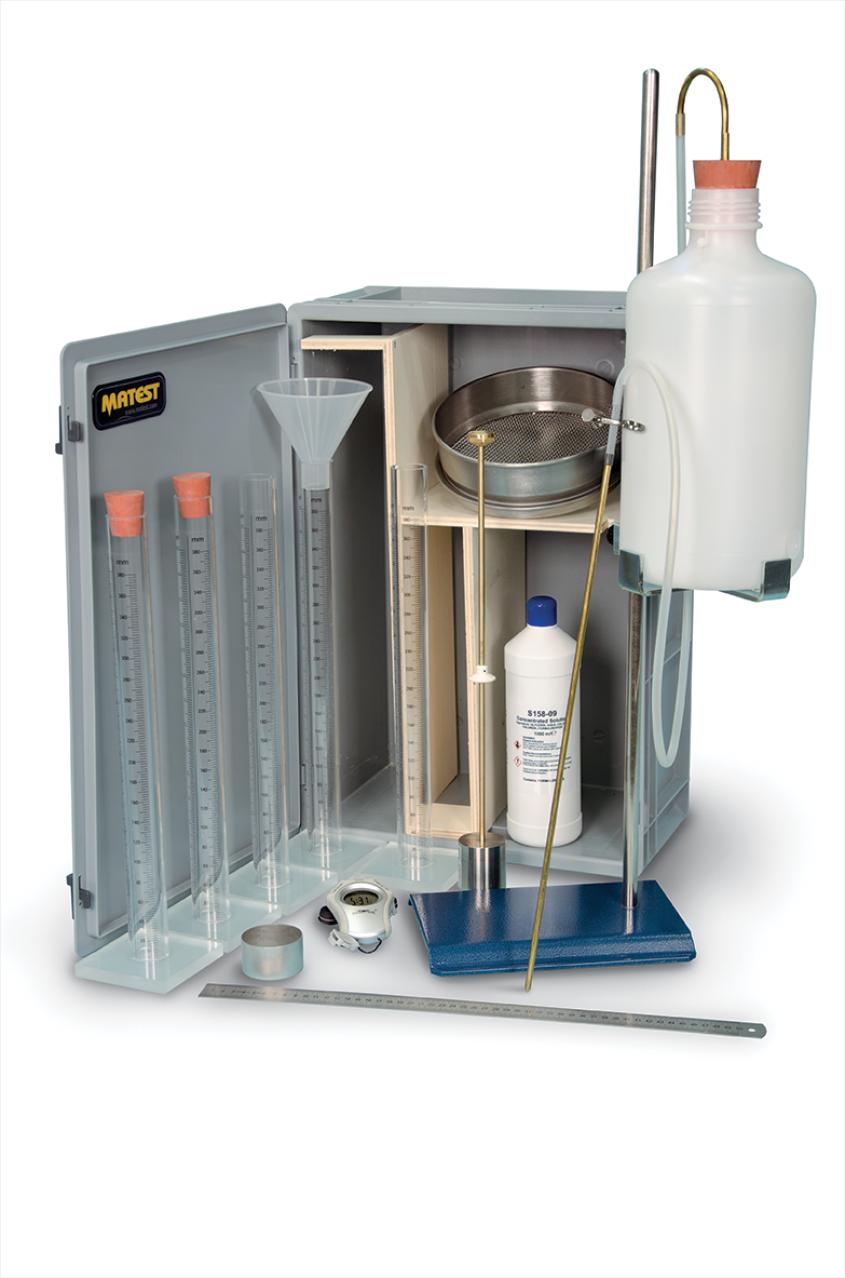

The set comprises:
- S158-03N Plexiglass measuring cylinder graduated at 100 and 380 mm (5 pieces)
- S158-02 Rubber stopper for cylinder (2 pieces)
- V176-02 Graduated rule 500 mm, stainless steel
- V136-01 Funnel, wide mouth
- S158-05 Measuring can 200 ml capacity
- V121 Plastic bottle, 5 litre capacity
- S158-10 Irrigator tube with stopcock and syphon assembly EN/ASTM
- S158-13 Weighted foot assembly for sand level
- A052-37 Sieve, dia. 200 mm, opening 2 mm
- S158-09 Concentrated stock solution, 1000 ml
- V170 Stop watch, digital
- S158-11 Clamp stand set to hold the syphon assembly with bottle
- S158-12 Portable carrying case, dimensions: 550x250x400 mm
Total Weight: 18 Kg
