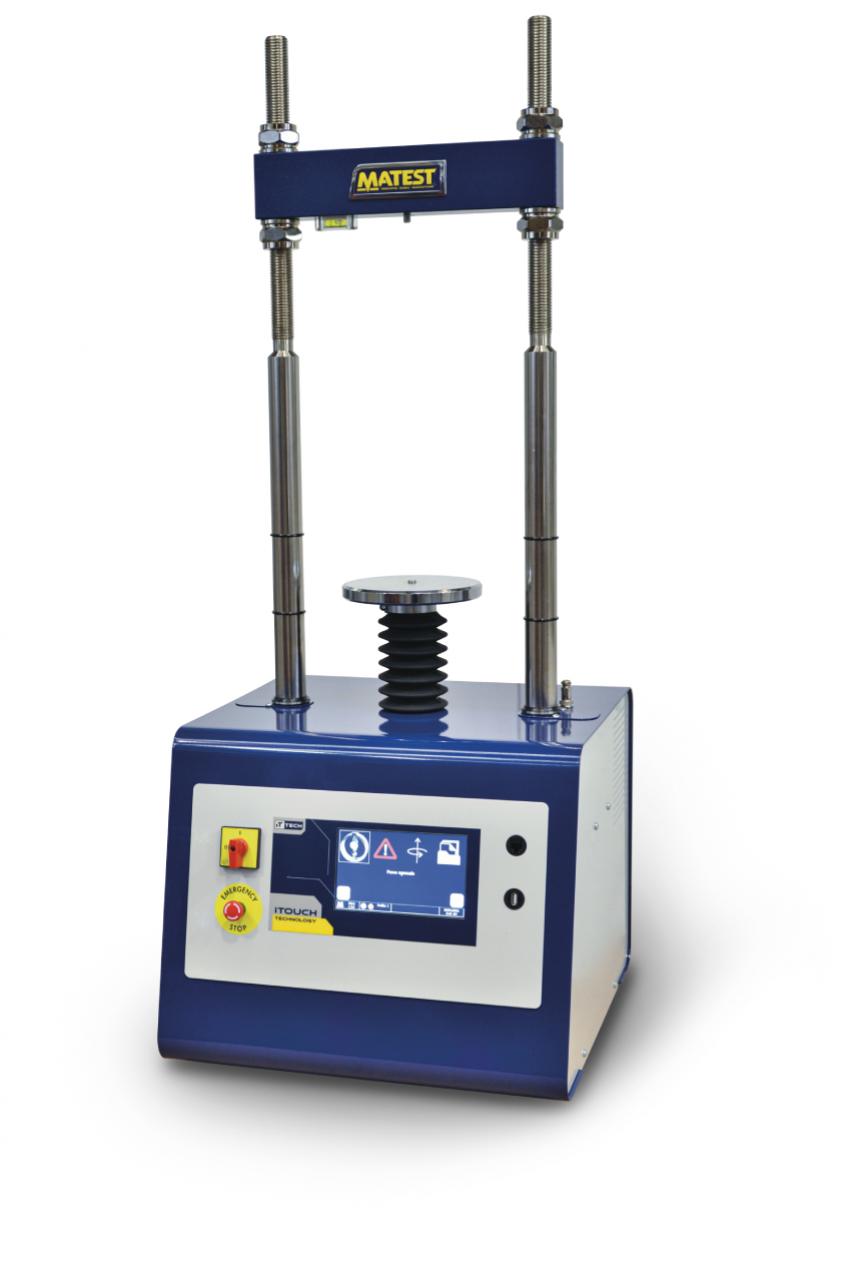

The universal multispeed load frame (50 kN) is a motorized machine equipped with a microprocessor-controlled digital touch-screen panel. It is designed for laboratory tests requiring a controlled displacement rate between 0.05 and 63 mm/min under a maximum load of 50 kN.
This versatile frame supports multiple geotechnical and pavement material tests, providing precise and repeatable control of the testing speed. The speed rate is continuously variable and can be selected quickly via the integrated touch interface.
Compatible Tests:
Power supply: 230V 1ph 50/60Hz 750W
Dimensions: 500x500x1270 mm
Weight: 140 kg approx.
Marshall stability
CBR test
California Bearing Ratio test
Unconfined test
Quick triaxial test
CBR test
California Bearing Ratio test
Splitting Tensile
