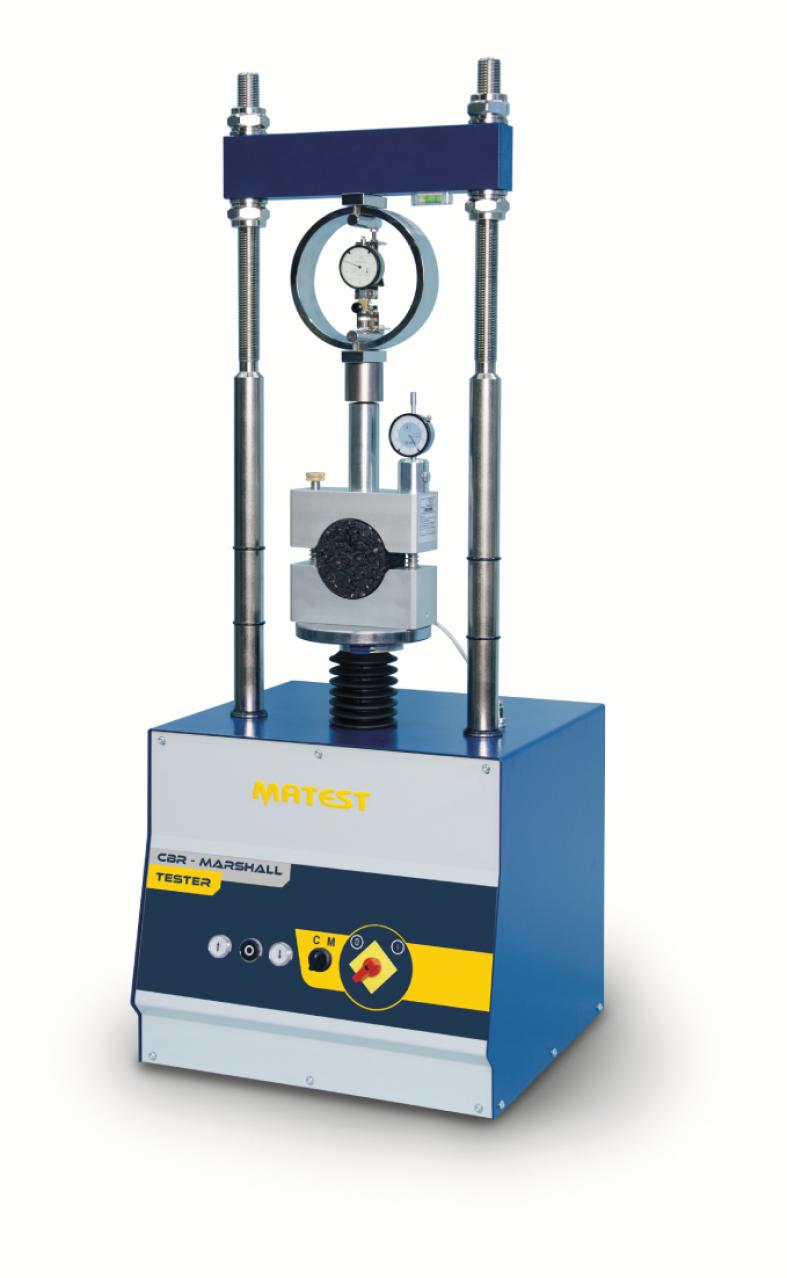

The frame is provided of three fixed speed ranges, easily selectable with a frequency changer (inverter) activated by an electric switch:
1.00 mm/min. for CBR tests (as Australian and old BS Standards)
1.27 mm/min. for CBR tests
50.8 mm/min for Marshall tests.
Supplied without load ring and accessories which have to be ordered separately.
Power supply: 230V 1ph 50/60Hz 750W
Dimensions: 480x480x1275 mm
Weight: 130 kg approx
NOTE: The frames S212M and S213-05N are suitable also for tensile splitting tests (EN 12697-23, ASTM D6931, AASHTO T283) by using the specific devices.
