Code: B230

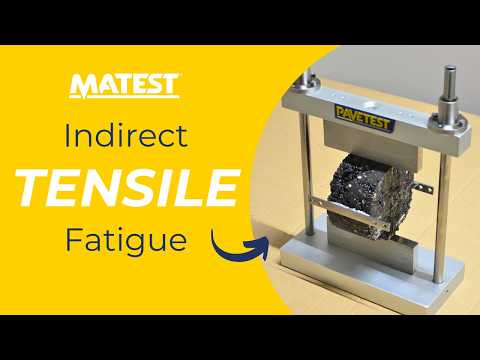

The DTS-30 Dynamic Testing System is a high-performance servo-hydraulic testing machine designed for dynamic tension and compression tests on asphalt, soil, unbound granular materials, fibres, and plastics. Utilizing digital control of a high-precision servo valve, the DTS-30 ensures accurate loading waveforms up to 100 Hz.

Compact and fully integrated, the DTS-30 is user-friendly, environmentally conscious, and adaptable for a wide range of research and quality control applications. A “Top-loading” option is also available for specialized setups.

The system is fully supported by Pavetest’s CDAS2 16-channel digital controller and TestLab software, allowing real-time data acquisition, analysis, and seamless test management.

Vous n'êtes pas connecté pour consulter les manuels, Log in

  • B230-01N
    Load cell capacity ± 30 kN

Load frame

  • Space between columns 600 mm
  • Vertical space 800 mm

Servo actuator

  • Capacity ± 30kN static, ± 25kN dynamic
  • Frequency up to 100Hz
  • Stroke 100 mm

Hydraulic Power Supply

  • Pressure up to 160 bar, user-defined
  • Flow rate up to 7.5 litres/min
  • Dimensions: 650(h) x 550(d) x 450(w) mm
  • Power Supply: 230V 50-60Hz 1ph 2.5kW

Power Supply: 230V 50-60Hz 1ph 2.5kW (B230), 230V 50Hz 1ph 3.1kW (B232)
Dimensions: 2100(h) x 1220(d) x 800(w) mm load frame, 2100(h) x 1800(d) x 800(w) mm with temperature controlled cabinet
Weight: 430 kg approx. load frame, 650 kg approx. load frame with temperature-controlled cabinet and oil-filled HPS

  • Compact, robust load frame.
  • Small footprint; 90 cm x 135 cm, including hydraulic power supply and climatic chamber.
  • Reaction frame embedded in the test chamber.
  • Portable temperature control unit.
  • Fully configurable to suit a large range of testing applications.
  • Digital Servo-Hydraulic control.
  • DynafloTM HPS provides dynamic speed control of the pump motor ensuring quiet operation.
  • 4 axis control and 16 channel data acquisition as standard.

The machine includes:

  • Rigid two-column load frame
  • 30 kN Servo-hydraulic actuator (100 mm Stroke)
  • 2.2 kW Hydraulic Power Supply
  • HPS Pressure up to 210 bar
  • 16 Channel Control and Data Acquisition System (CDAS) & TestLab software
  • Load cell (± 30 kN)
  • 100 mm actuator LVDT
