C109-09N
Electro-hydraulic loading and control system
(
Concrete
)
- EN 1916
- BS 5911
- DIN 4035
- ASTM C301
- ASTM C497
Electro-Hydraulic loading and control system, having a capacity of 1000 kN.
- Double action alloy steel ram + cylinder.
- Ram travel: 400 mm
- The ram is ground.
- Upper attachment for steel frame cross-beam coupling.
- Spherical seat fixed to the ram for an uniform loading.

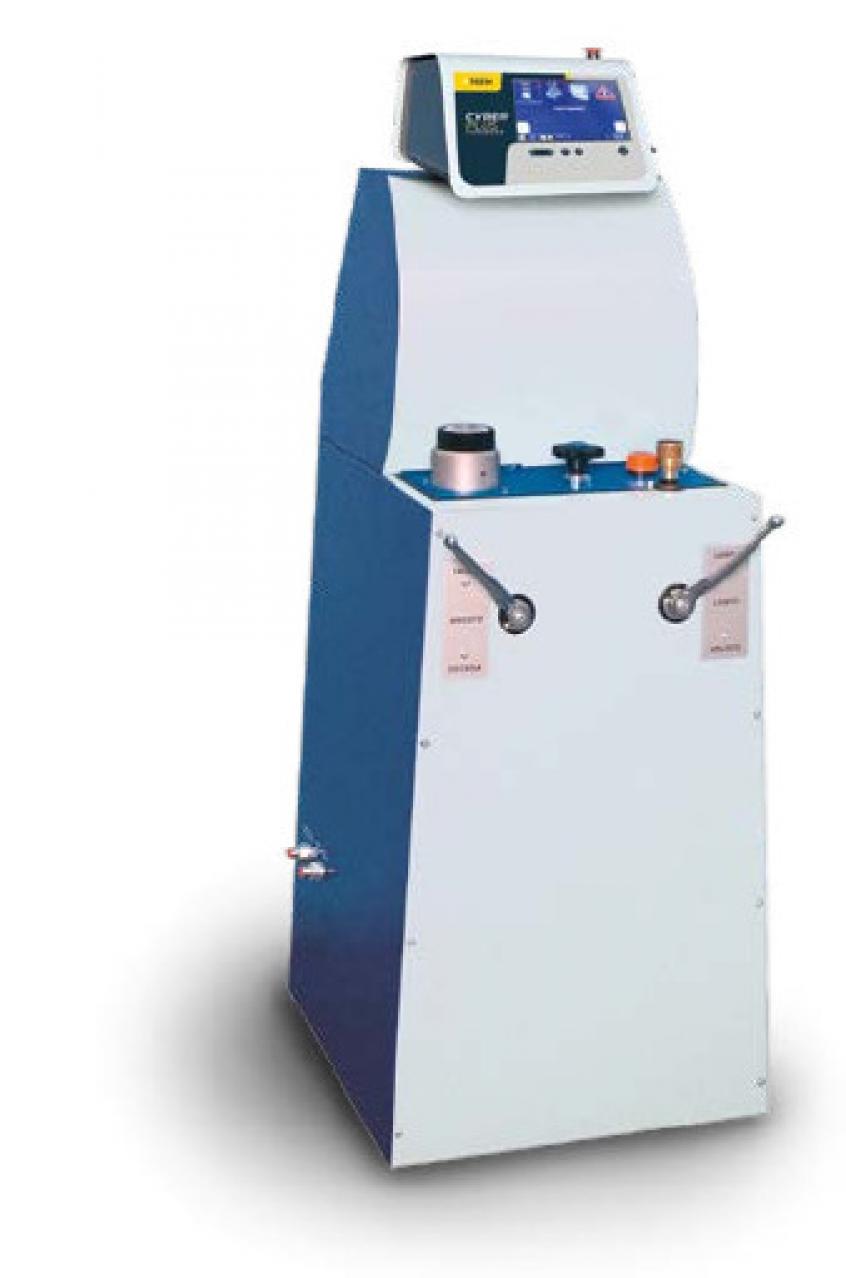

- Hydro-Plus Evolution loading and control cabinet, complete with hydraulic multipiston power pack group, maximum pressure safety valve, decompression valve, oil flow control valve granting smooth and accurate load pace.
- Computerized graphic display Cyber-Plus Progress unit mod. C109M with software for the acquisition, displaying, processing, printing and saving of test data and certificates.
- Electric load cell 1000 kN capacity, for accurate load measurement directly from the ram.
- Two flexible high pressure hoses, to connect the cylinder to the hydraulic power pack.
Power supply: 230V 1 ph 50Hz 1000W
Dimensions: 500x530x1300 mm
Weight: 150 kg approx.
