Test Standard Category

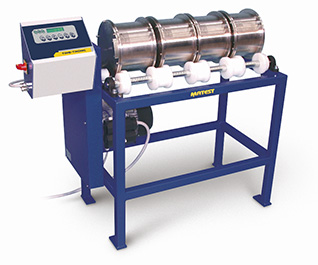

A077 Micro-deval testing machine

( Aggregates-Rocks )

  • EN 1097-1
  • EN 13450
  • NF P18-572
  • NF P18-576
  • UNE 83115
  • CNR N. 109


Used to determine the resistance of aggregates by abrasion. The machine essentially comprises a heavy steel frame on which the following stainless steel cylinders can be mounted:
4 cylinders Ø 200x154mm, or
2 cylinders Ø 200x400mm, or
2 cylinders Ø 200x154mm and 1 Ø 200x400mm
The Micro-Deval is supplied complete with separate control panel fitted with a digital automatic revolutions counter.
Supplied without stainless steel cylinders and without stainless steel spheres which have to be ordered separately.

It cannot be sold in CE markets without security cabinet (mod. A077-01)

Power supply: 230V 50Hz 1ph 1100W
Dimensions: 1000x450x920mm
Weight: 150 kg approx.
