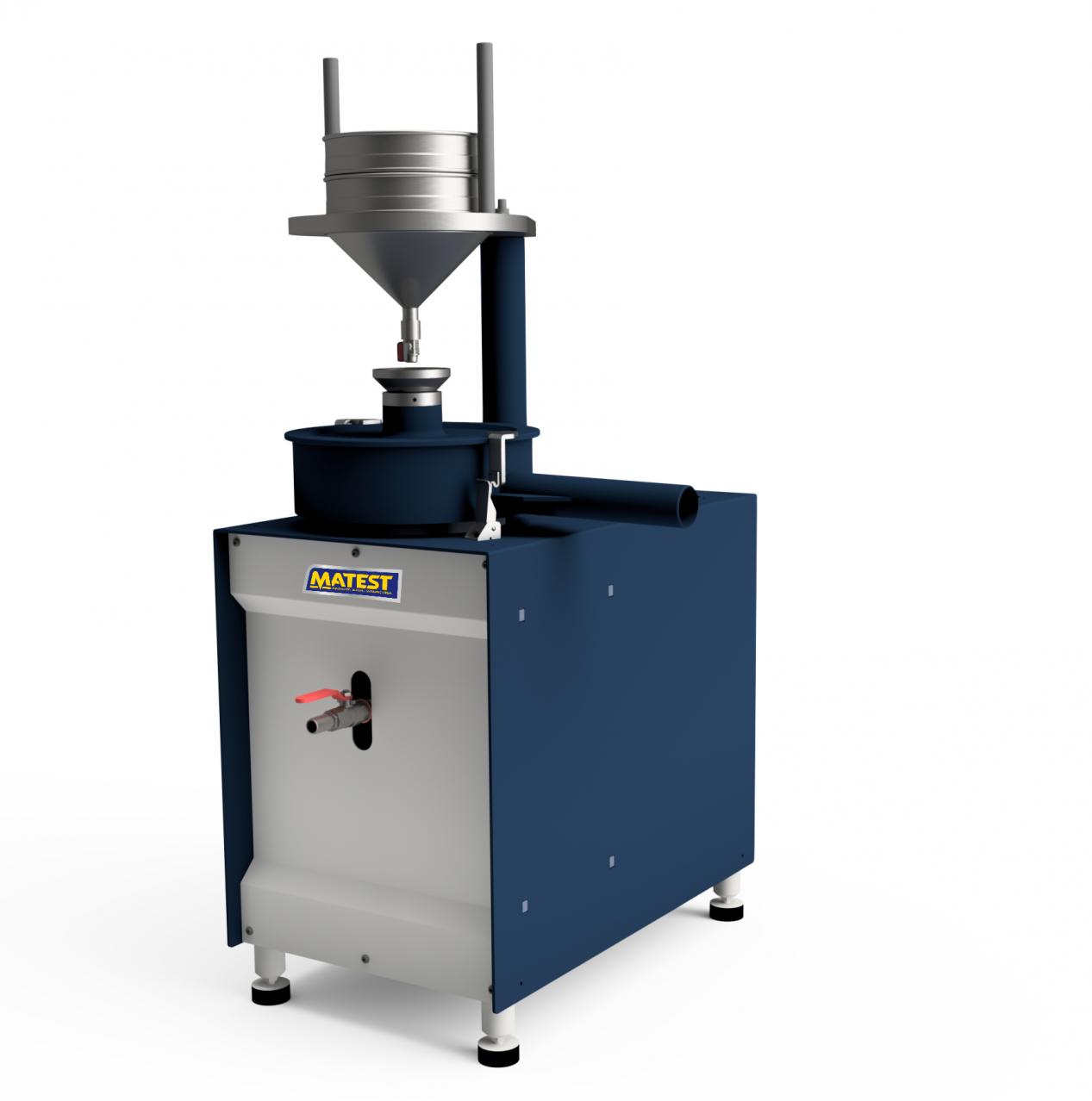

B015 Continuous Flow Filterless Centrifuge, 400 g capacity

---

It is used to perform reliable analysis on bituminous mixtures using the perchloroethylene (PCE) or tetrachloroethylene solvent which is classified: as R40 (not cancer producing*), for quantitative determination of binder or bitumen contained in pavement samples and hot mixed mixtures.

The system performs in only one complete automatic cycle:

• the washing, disaggregation and separation of the bituminous mixture;
• the separation of the filler from the solution formed by solvent, bitumen and filler.

The unit comprises:

• A sieving unit with solvent spraying cover for washing and disaggregation of the sample;
• A continuous flow filterless centrifuge having a rotation speed of 11000 rpm equipped with a stainless steel beaker Ø 120mm, filler capacity approx. 400 g;
• A separate control panel allows the programming of all these functions in a fully automatic system. It is also possible to select the manual control.

This unit is supplied complete with:

• Two stainless steel beakers Ø 120 mm;
• Four stainless steel sieves Ø 200 mm openings: 0.063 - 0.250 - 0.800 - 2 mm;
• One Sieve Frame only Ø 200 mm to improve the capacity of the first sieve;
• Set of O ring gaskets for sieves.

Power supply: 400V 3ph 50Hz 5.5kW
Overall dimensions: 420x680x1630 mm
Total weight: 150 kg approx.

Note: * it is possible to use also the Trichloroethylene (CHC1:CC12), but as per the 2001/59/CE Directive, it is classified “R45”, and therefore considered a dangerous solvent. (Toxic and cancer-producing).

Note: B015 cannot be used with dichloromethane solvent.
