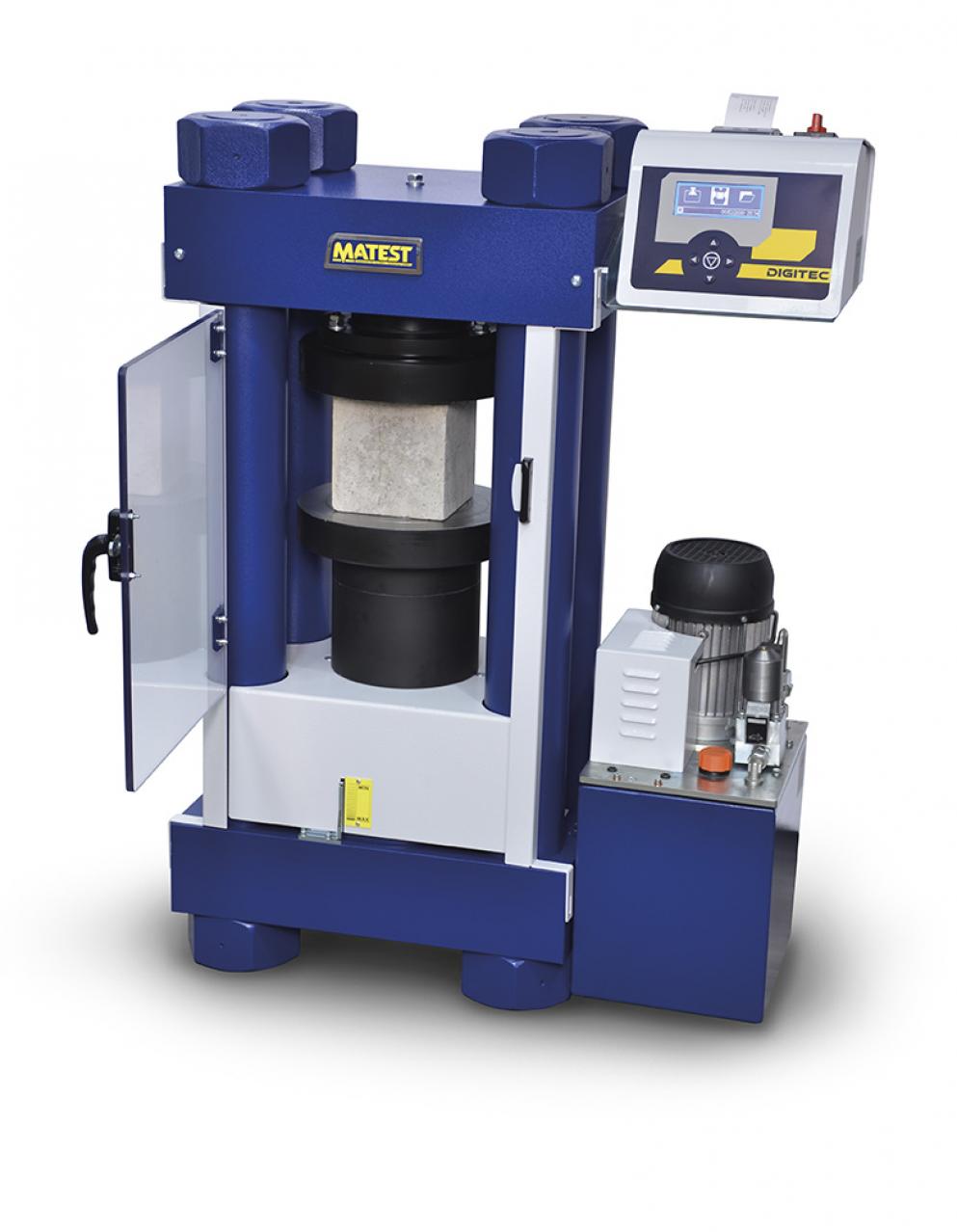

C058-05A Concrete compression machine 2000 kN automatic, Autotec

( Concrete )
  • ASTM C39
  • AASHTO T22
  • BS 1610
  • GOST 10180

Compression testing machine 2000 kN motorized with Autotec control unit, to test cubes up to 200 mm side and cylinders up to 280 mm height.

Pedir información
  • Max. vertical daylight: 282 mm
  • Horizontal daylight between columns: 270 mm
  • Compression platens Ø 287 x 51 mm
  • High stiffness and heavyweight 4-column frame (german-style)
  • Calibration accuracy: Class 1
  • Max. ram travel 55 mm approx.
  • Power supply: 230V 1ph 50Hz 750W
  • Dimensions: 750x450x1000 mm approx.
  • Weight: 670...720 kg
