Test Standard Category

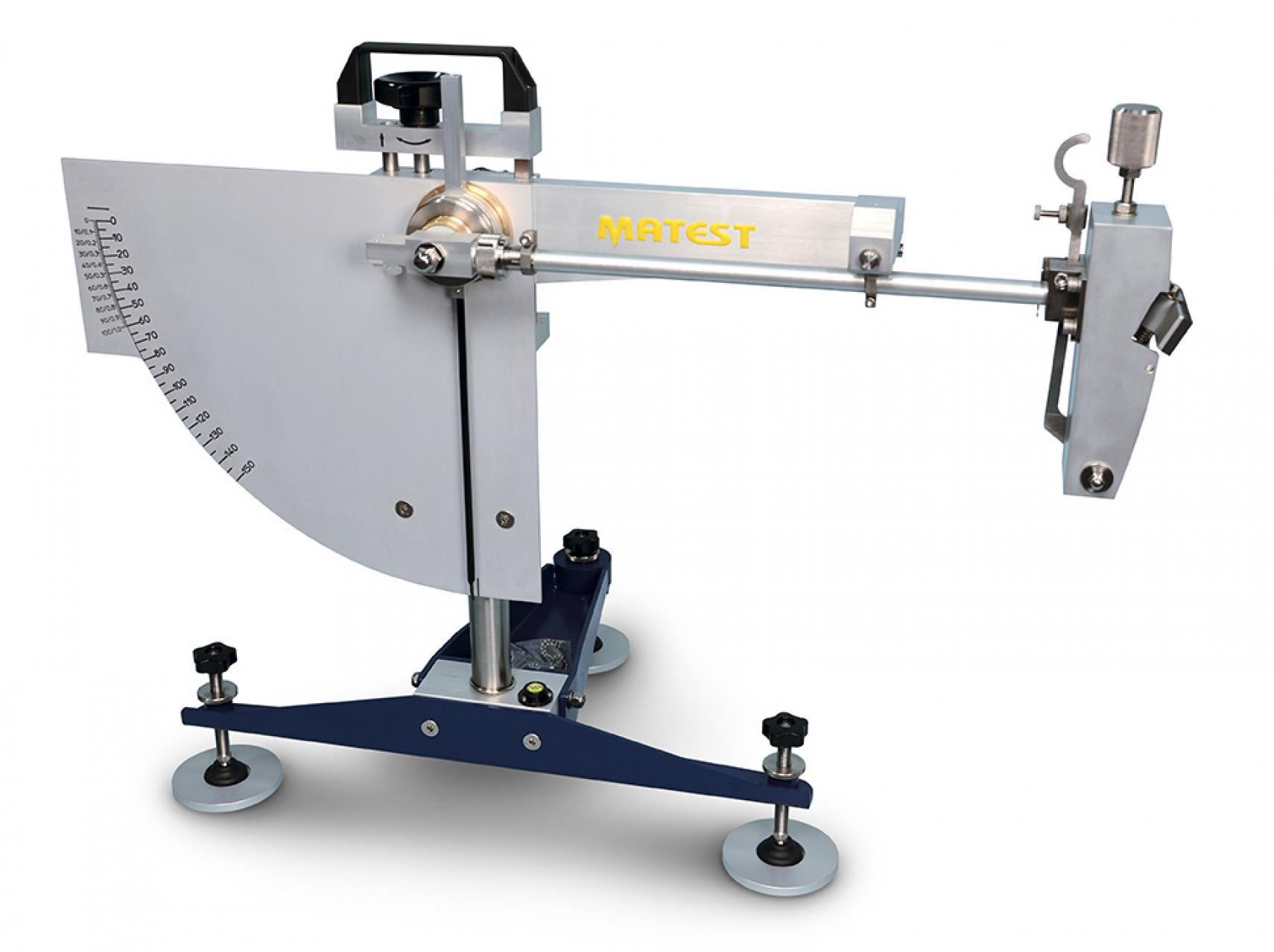

A113-01 Skid Resistance and Friction Tester – ASTM Version


  • ASTM E303

This version of the Skid Resistance and Friction Tester is supplied pre-calibrated according to ASTM E303, making it ideal for laboratories and road authorities working with American standards.

Built with the same rugged design and high-precision mechanics of the EN model, this version guarantees accurate skid resistance measurements for:

  • Road pavements, asphalt surfaces, and concrete

  • Polished Stone Value (PSV) tests on curved aggregate samples

  • Lab and field assessments of frictional performance

Equipped with a low-friction pendulum mechanism, adjustable sliding system, and a full accessory kit, the A113-01 is ready for immediate ASTM-compliant testing.

Note: The tester is supplied without rubber sliders, which must be ordered separately (see accessories).

Request information
Non sei loggato per vedere i manuali Entra
  • Fully compliant with ASTM E303
  • Perfect for lab and on-site PSV and skid testing
  • Accurate pendulum system with minimal friction
  • Easy slider height adjustment
  • Includes ASTM calibration certificate
  • Sturdy carrying case for field use
  • Same build quality and precision as EN version
  • Standard compliance: ASTM E303
  • Measurement principle: Pendulum energy loss
  • Case dimensions: 730×730×330 mm
  • Approx. weight: 32 kg
  • Included accessories:
    • Additional scale for PSV
    • Plexiglass sliding rule
    • Thermometer (–10 to +110 °C)
    • Stool, wash bottle, bristle brush, tool set
    • Transport case
    • Calibration Certificate ASTM E303
