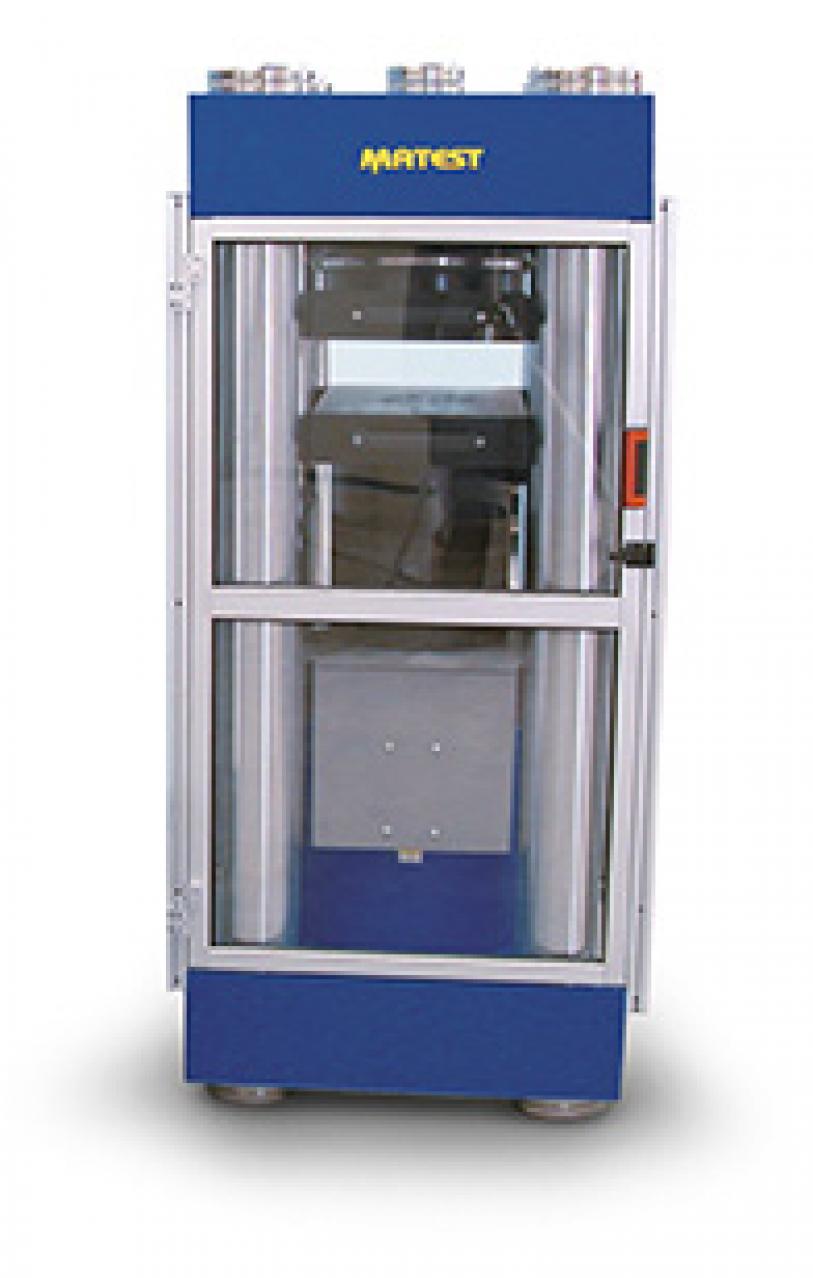

C087N Concrete compression machine 3000 kN semi-automatic, Cyber-Plus Progress

( Concrete )

EN 12390-4
BS 1881:115
DIN 51220
GOST 10180
NF P18-411

Oversized isostatic high stability stiffness frame with Cyber-Plus Progress touch-screen control unit: the ideal solution for central and research laboratories to test high strength specimens, explosive samples, rock and ceramic samples.

Pedir información

CONCRETO

Compressive Strength

EN 12390-4
EN 772-1
BS 1881:115
BS 6073
DIN 51220
ASTM C39
AASHTO T22
ASTM C140
ASTM C1314

C127-11

Thermo-paper roll for printer (pack of 10 rolls)
C112-11

Upper and lower compression platens with seat ball
C117

Sliding rail carriage
C097-08

Official Accredia hardness certificate
C097-05

Class 1 starting from 1% of the full range
C127N

Graphic printer
C121-51

Door stop safety switch
C115-01

Two way hydraulic valve
C106

Flexural device on concrete beams
C099-01

Barcode Scanner
C087-11

Distance piece 50 mm high for 3000-5000 kN high stability frames
C087-12

Distance piece 25 mm high for 3000-5000 kN high stability frames
C087-15

Distance piece 100 mm high for 3000-5000 kN high stability frames
C097-01

Dual low capacity range
C087-16

Clamping device
C100

Splitting tensile test device for cylinders
E170

Compression device for mortar prisms, EN standard
SSW-LINK

Firmware Upgrade for SmartLab Software
SSW-LINK

Aggiornamento Firmware per SmartLab

Compression platens Ø 316x60 mm
Hydraulic pressure: 360 bar max.
Max. vertical daylight: 411 mm
Horizontal daylight between columns: 321 - 345 mm
Max. ram travel: 100 mm
High stiffness and heavyweight 4-column frame: 0.3 mm at max. load (german-style)
Safety Guards to CE Directive
Class “1”
Dimensions: 1030x760x1700 mm
Power supply: 230V 1ph 50Hz 750W
Weight frame: 2500 kg
