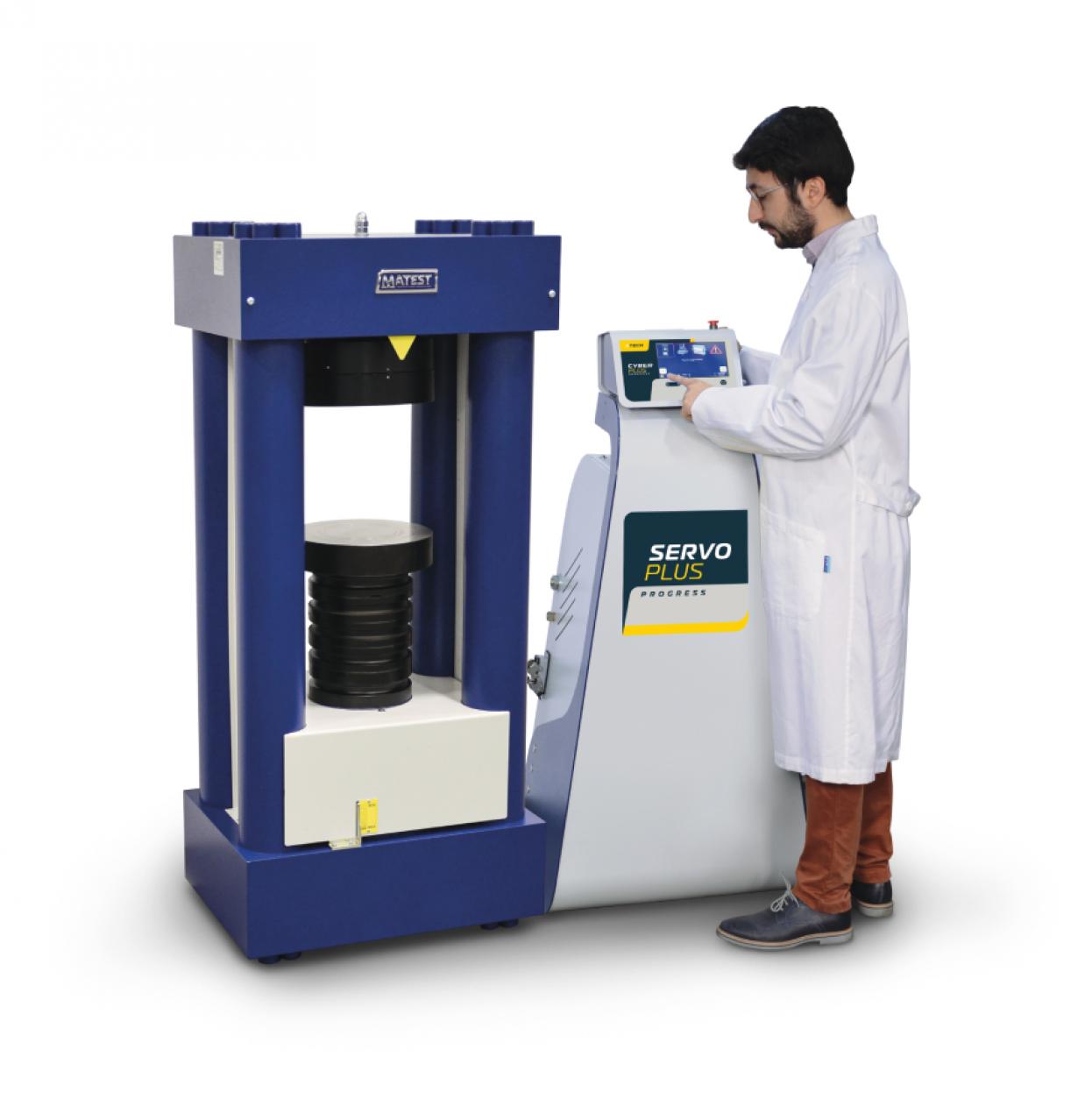

Compression machine 4000 kN automatic, Servo-Plus Progress

Code: C088-11N

EN 12390-4 BS 1881:115 DIN 51220 ASTM C39 NF P18-411 AASHTO T22 BS 812:111 BS 812:110 EN ISO 13503-2 API RP 19 C GOST 10180

Compression testing machine motorized with Servo-Plus Progress control unit (automatic model) to test cubes up to 200 mm side and cylinders up to dia. 160x320 mm.

C111-24

Distance Pieces 50mm High for High Stability Machines
C111-32

Distance piece 20 mm high for high stability machines
C127-11

Thermo-paper roll for printer (pack of 10 rolls)
C112-11

Upper and lower compression platens with seat ball
C117

Sliding rail carriage
C121-02

Safety guards
C097-08

Official Accredia hardness certificate
C107-01

Auto-centering device for cubes and cylinders, platen 287 mm
C097-05

Class 1 starting from 1% of the full range
C127N

Graphic printer
C110-15

Light lower compression platen
C121-51

Door stop safety switch
C115-01

Two way hydraulic valve
C106

Flexural device on concrete beams
C099N

Inverter device
C099-01

Barcode Scanner
C097-01

Dual low capacity range
C103

Splitting tensile device for cubes
C121-52

Electric switch for the piston
E170

Compression device for mortar prisms, EN standard
C111-25

Distance Piece 73 mm High for High Stability Machines
SSW-LINK

Firmware Upgrade for SmartLab Software
C125M

Elastic Modulus on Concrete
C104-10N

In-built firmware for compression test with displacement control

No ha iniciado sesión para ver los manuales, Iniciar sesión

Max. vertical daylight: 376 mm
Horizontal daylight between columns: 340 mm
Compression platens Ø 287x60 mm
Calibration accuracy: Class 1
Max. ram travel 60 mm approx.
High stiffness and heavyweight 4-column frame (German-style)
Power supply: 230V 1ph 50Hz 750W
Dimensions: 1220x550x1300 mm approx.
Weight: 1800...1900 kg

Concrete compression machine 4000 kN automatic, Servo-Plus Progress
