Concrete compression machine 3000 kN semi-automatic, Cyber-plus progress

  1. Home
  2. Concreto
  3. Norma EN - Prensas Para Ensayos De Compresión De Alta Estabilidad
  4. 3000 kN Prensas para Ensayos de Compresión, Bloques
  5. Concrete compression machine 3000 kN semi-automatic, Cyber-plus progress

Concreto

Code: C089-17N
EN 12390-4 EN 772-1 BS 1881:115 BS 6073 DIN 51220 NF P18-411 ASTM C39 ASTM C140 ASTM C1314 AASHTO T22 GOST 10180

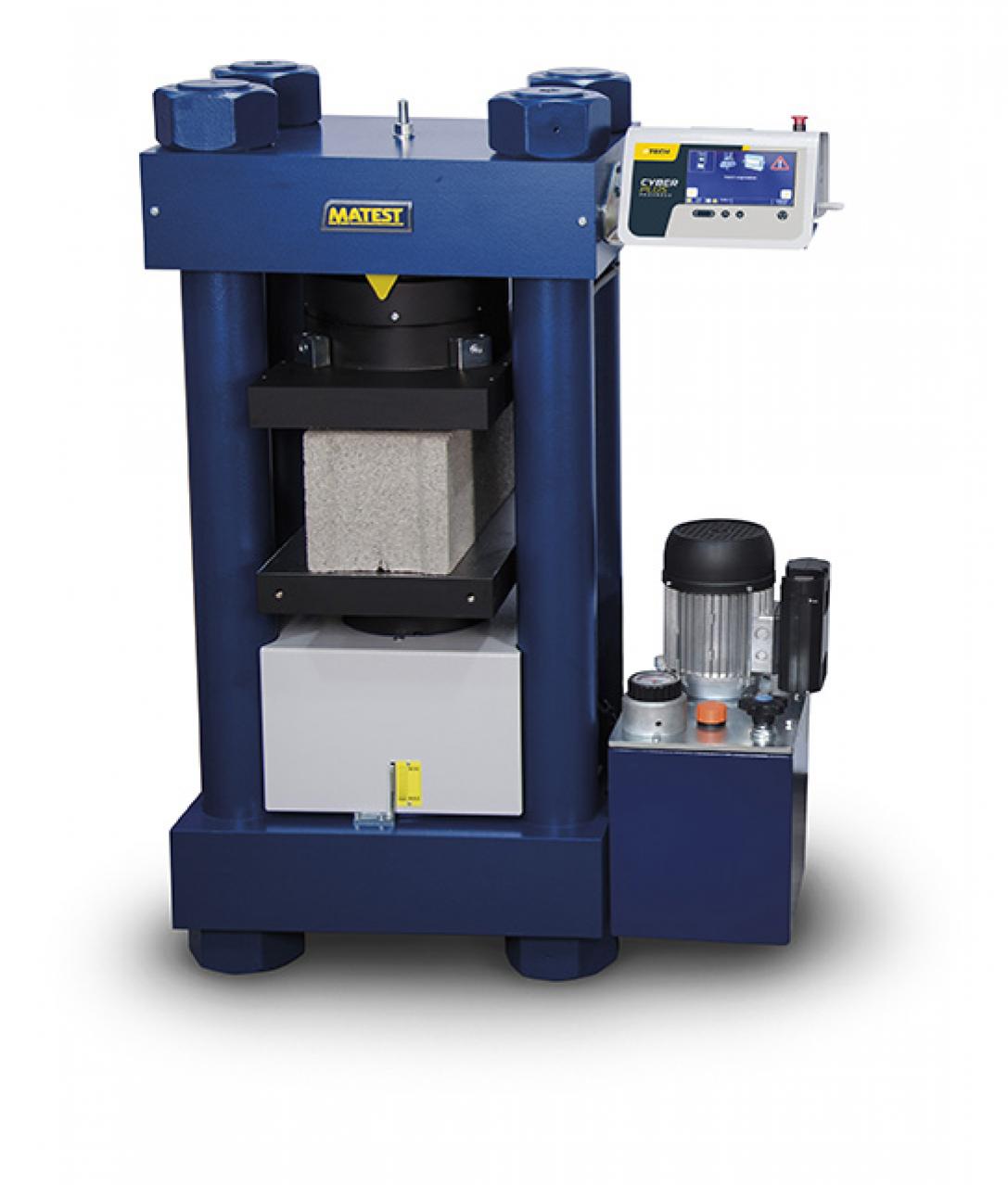

Compression testing machine motorized with Cyber-Plus progress touch screen control unit (semi-automatic model) to test blocks max. 500x300 mm, cubes up to 200 mm side and cylinders up to dia. 160x320 mm.
  • Max. vertical daylight to test blocks: 283 mm
  • Horizontal daylight between columns: 340 mm
  • Compression platens for blocks: 510x320x55 mm
  • Max. vertical daylight to test cubes and cylinders: 334.5 mm
  • Compression platens to test cubes, cylinders: Ø 287x60 mm
  • Calibration accuracy: Class 1
  • Max. ram travel 60 mm approx.
  • High stiffness and heavyweight 4 column frame (German-style)
  • Power supply: 230V 1ph 50Hz 750W
  • Dimensions: 870x600x1300 mm approx.
  • Weight: 1350...1400 kg
