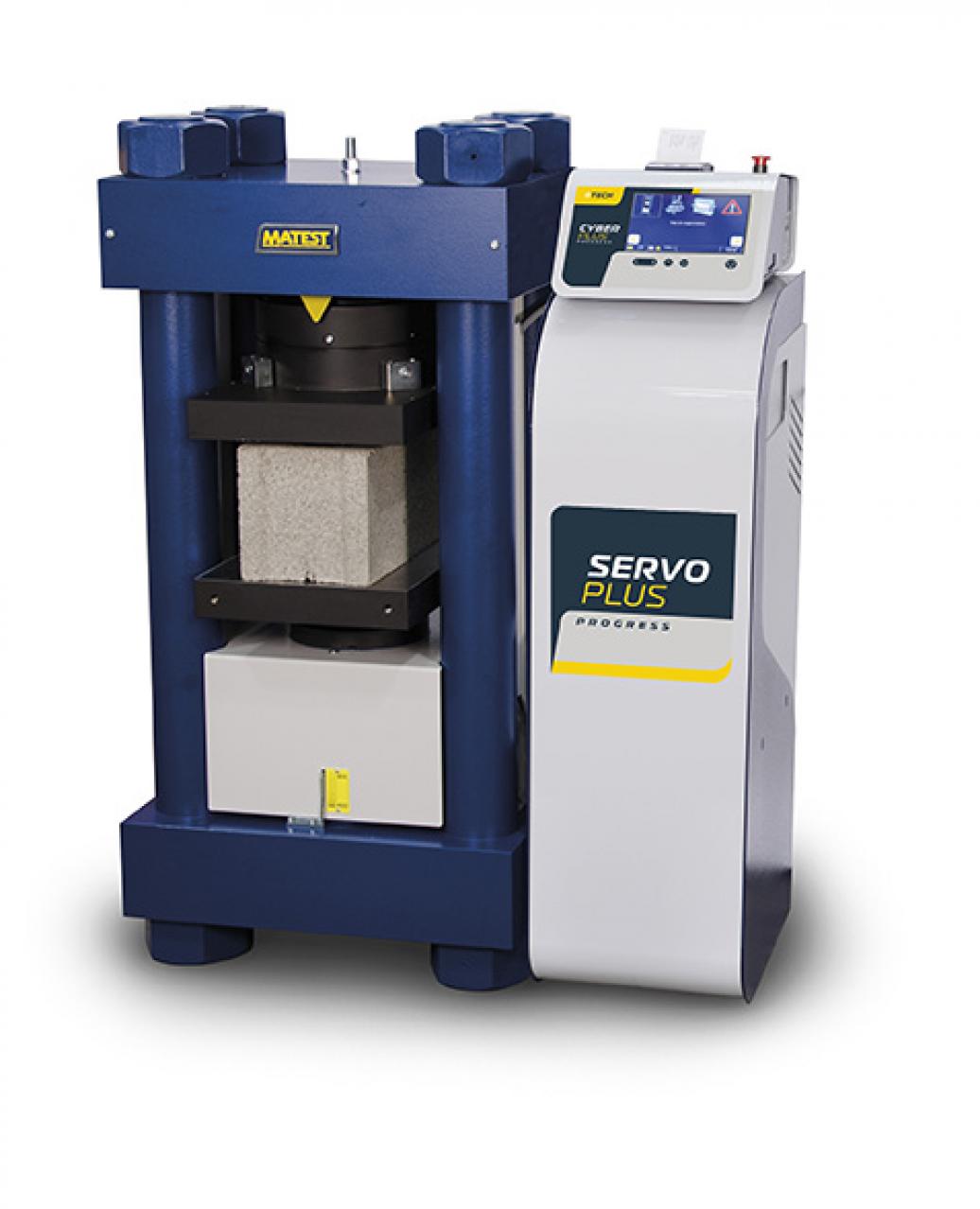

C089-19N Concrete compression machine 3000 kN automatic, Servo-Plus Progress

( Concrete )

EN 12390-4
EN 772-1
BS 1881:115
BS 6073
DIN 51220
NF P18-411
ASTM C39
ASTM C140
ASTM C1314
AASHTO T22
GOST 10180

Compression testing machines 3000 kN motorized with Servo-Plus Progress control unit (fully automatic model) high stability, to test blocks max. 500x300 mm, cubes up to 200 mm side and cylinders up to dia. 160x320 mm.

Pedir información

Accesorios
Main Features

C121-08

Safety guards for 3000 kN compression machines, block platens
C111-24

Distance Pieces 50mm High for High Stability Machines
C127-11

Thermo-paper roll for printer (pack of 10 rolls)
C112-05

Kit of 4 Handles to Lift the Lower Platen
C117

Sliding rail carriage
C097-08

Official Accredia hardness certificate
C097-05

Class 1 starting from 1% of the full range
C127N

Graphic printer
C104-04

Console Housing the Servo-Plus Progress
C121-51

Door stop safety switch
C115-01

Two way hydraulic valve
C106

Flexural device on concrete beams
C126

Bench for compression machines
C099N

Inverter device
C099-01

Barcode Scanner
C089-12

Testing chamber for 3000 kN Compression machines
C104-10N

Firmware and software
C097-01

Dual low capacity range
C100

Splitting tensile test device for cylinders
C103

Splitting tensile device for cubes
C103-01

Splitting tensile device for concrete block pavers, cubes and prisms
C121-52

Electric switch for the piston
C111-50

Distance Piece
C111-14

Distance Pieces for 2000 and 3000 kN EN
E170

Compression device for mortar prisms, EN standard
SSW-LINK

Firmware Upgrade for SmartLab Software
SSW-LINK

Aggiornamento Firmware per SmartLab
C125M

Elastic modulus on concrete
C111-25

Distance Piece 73 mm High for High Stability Machines

Max. vertical daylight to test blocks: 283 mm
Horizontal daylight between columns: 340 mm
Compression platens for blocks: 510x320x55 mm
Max. vertical daylight to test cubes and cylinders: 334.5 mm
Compression platens to test cubes, cylinders: Ø 287x60 mm
Calibration accuracy: Class 1
Max. ram travel 60 mm approx.
High stiffness and heavyweight 4 column frame (German-style)
Power supply: 230V 1ph 50Hz 750W
Dimensions: 870x600x1300 mm approx.
Weight: 1350...1400 kg
