C089-21N Concrete compression machine 2000 kN semi-automatic, Cyber-Plus Progress

( Concrete )
  • EN 12390-4
  • EN 772-1
  • BS 1881:115
  • BS 6073
  • DIN 51220
  • NF P18-411
  • ASTM C39
  • ASTM C140
  • ASTM C1314
  • AASHTO T22
  • GOST 10180

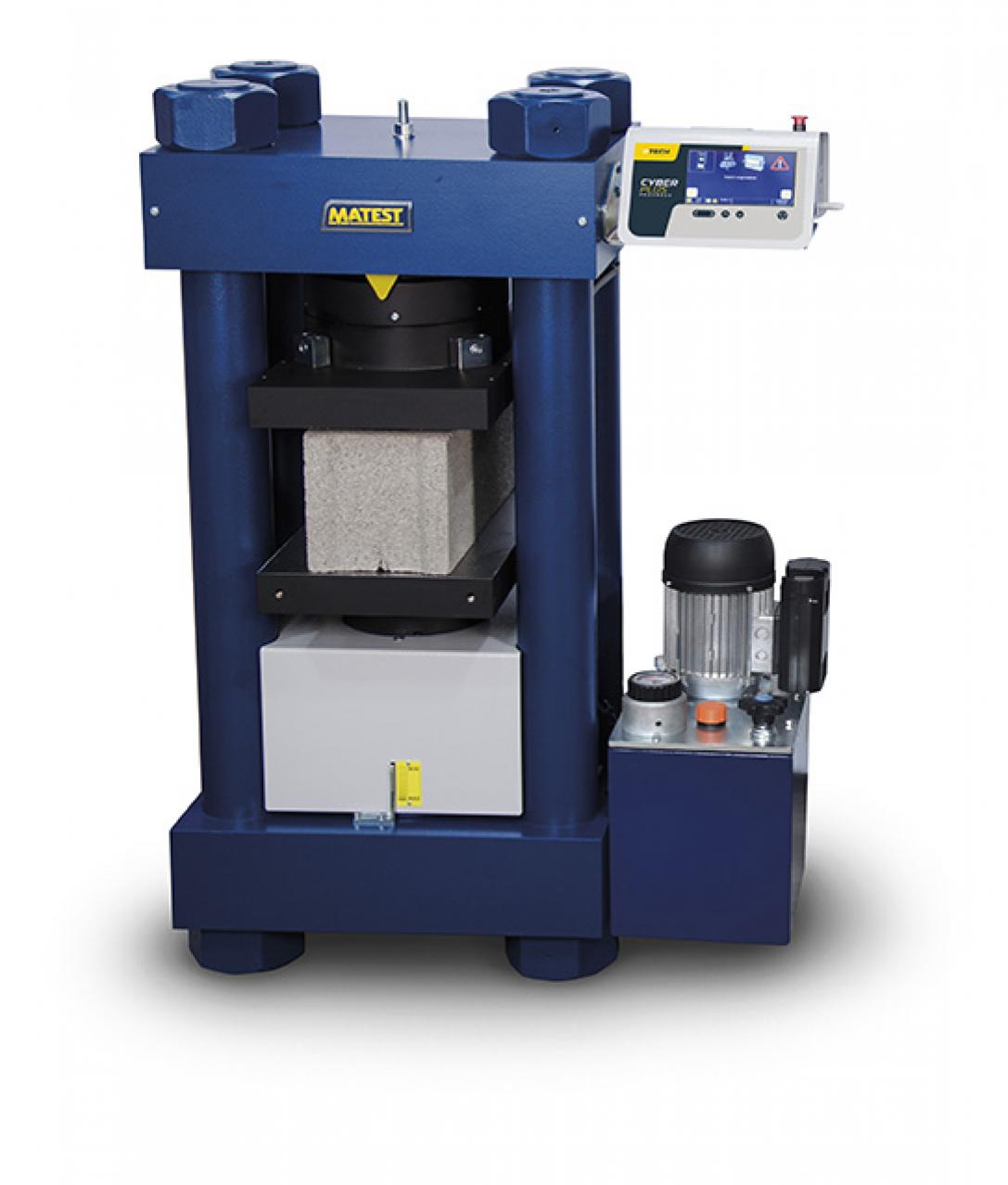

Compression testing machine 2000 kN motorized with Cyber-Plus Progress touch-screen control unit (semi-automatic model), high stability, to test blocks max. 500x300 mm, cubes up to 200 mm side and cylinders up to dia. 160x320 mm.

Pedir información
  • Max. vertical daylight to test blocks: 283 mm
  • Horizontal daylight between columns: 340 mm
  • Compression platens for blocks: 510x320x55 mm
  • Max. vertical daylight to test cubes and cylinders: 334.5 mm
  • Compression platens to test cubes, cylinders: Ø 287x60 mm
  • Calibration accuracy: Class 1
  • Max. ram travel 60 mm approx.
  • High stiffness and heavyweight 4-column frame (German-style)
  • Power supply: 230V 1ph 50Hz 750W
  • Dimensions: 830x520x1200 mm approx.
  • Weight: 1000...1070 kg
