Test Standard Category
Steel
tensile testing machine tensile testing machine

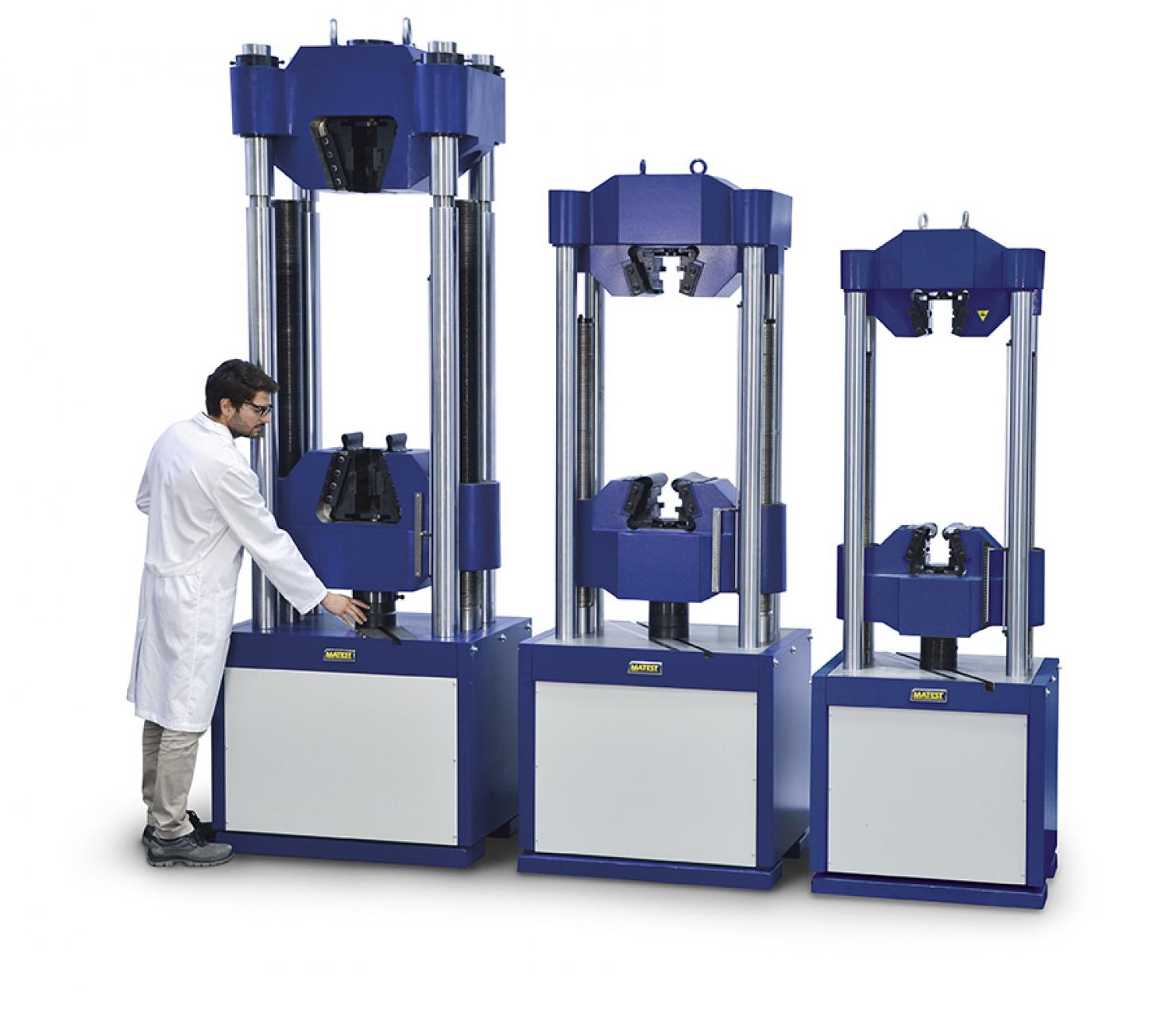

H001A Universal automatic tensile testing machine, 600 kN

( Steel )
  • UNI EN ISO 6892-1
  • UNI EN ISO 7500-1
  • UNI EN ISO 15630-1
  • UNI EN ISO 15630-2
  • UNI EN ISO 15630-3
  • ASTM A370
  • ASTM E8
  • UNI EN 10080

This machine is suitable for testing metallic round and flat rebars, to determine tension, compression, bending shear strength and to determine compression and flexure strength on concrete.

LOAD FRAME TECHNICAL SPECIFICATIONS

  • Load capacity: 600 kN
  • Load accuracy from 10% of the full scale: ± 1%
  • Test speed: max 85 mm/min; min 0.5 mm/min
  • Independent linearity of the piston stroke displacement: ± 0,05 %
  • Max crosshead moving speed: 200 mm/min
  • Piston stroke: 250 mm
  • Horizontal clearance: 555
  • Net distance between grips (with 250 mm piston stroke available, mm): 550 mm
  • Columns diameter: 70 mm
  • Dimensions of the grips for rounds and flats (length x width): 90x90 mm
  • Net distance between compression platens (with 250 mm piston stroke available, mm): 740 mm
  • Dimensions of platens (already included): 130x30 mm
  • Load frame height: 2600 mm
  • Width: 910 mm
  • Depth: 640 mm
  • Frame weight: 1840 kg
  • Power supply: 380V 3 ph 50 Hz
  • Absorbed power: 3.5 kW

Request information
Non sei loggato per vedere i manuali Entra
  • Fully automatic test execution with closed-loop digital feedback
  • Electronic control unit “Servo-plus Progress” with Touch-Screen colour display, for management and analysis of data, test results and graphs.
  • The Touch-Screen icon interface allows an easy set-up of parameters and an immediate test execution.
  • The machine can also be connected to a PC for a remote test execution through suitable Software.
  • LAN port for network connection
  • Unlimited memory storage with 2 USB ports.
  • Possibility to select different languages.

Each machine is supplied complete with a loading frame, control unit, compression platens and hydraulic power pack for jaws closing, while PC, software, grips, printer and extensometers (see next pages) are optional and must be ordered separately according to the user needs.
