Test Standard Category

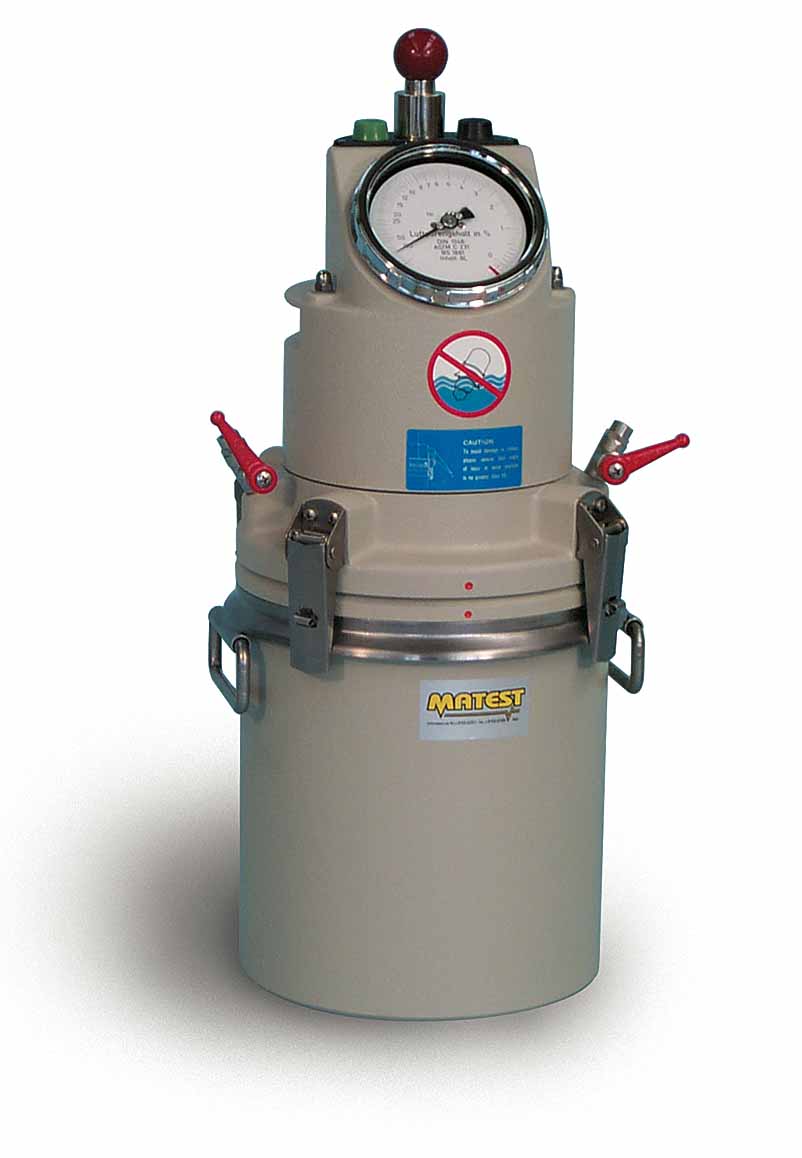

C196 Air entrainment meter, pressure gauge type, hand operated

( Concrete )

  • EN 12350-7
  • DIN 1048
  • ASTM C231 TYPE B

It consists of an aluminium vessel with built in hand operated pressure pump, connected to the measuring gauge showing directly the air content in percentage.
Air content range: 0...10% div. 0.1% up to 8% and 0.5% over.

Dimensions: Ø 250x450 mm
Weight: 12 Kg approx.

Request information
  • C197-01
    Filling hopper for air entrainment meters
