Test Standard Category
Concrete

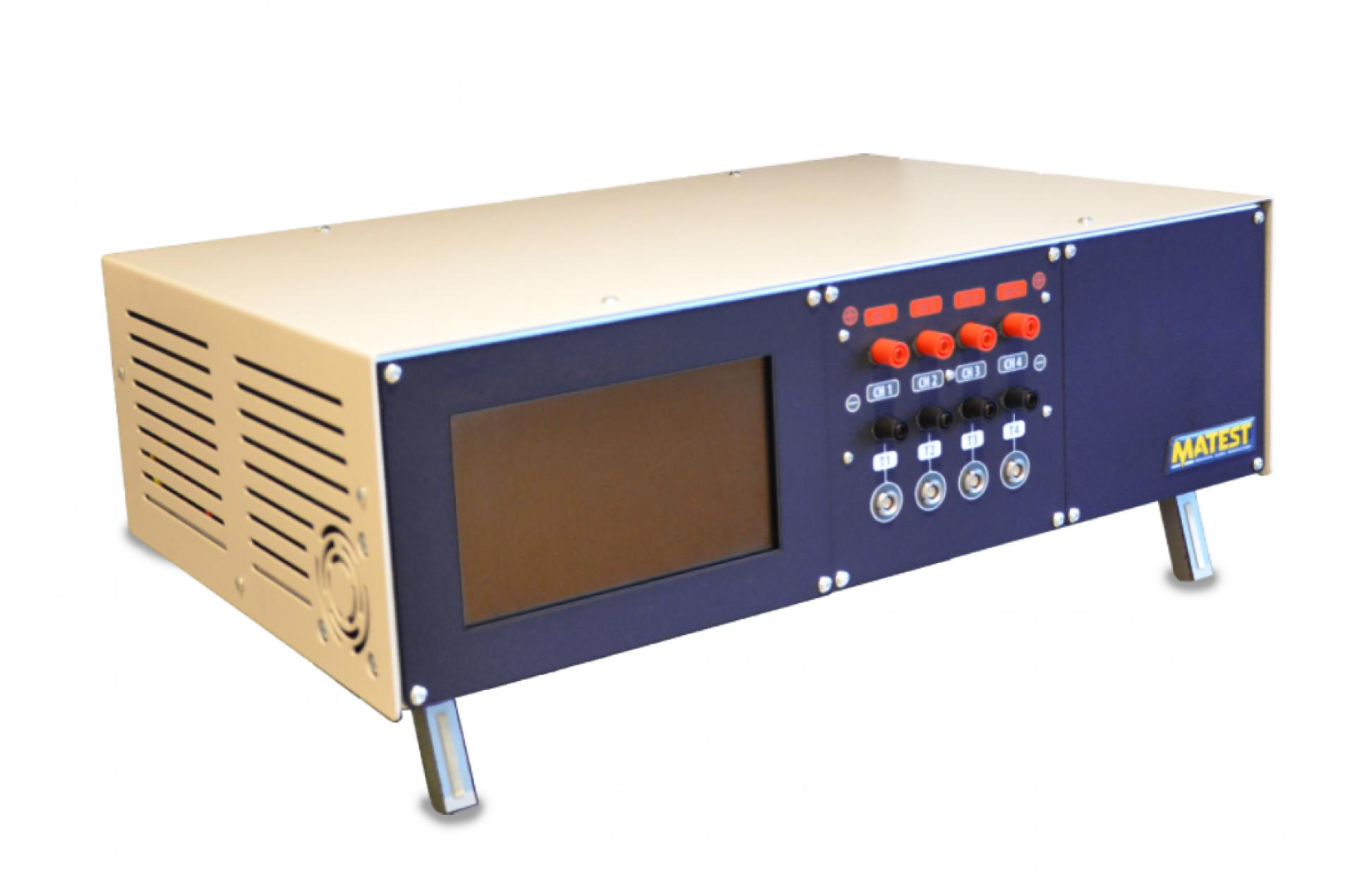

C378-01 Chloride Field Test System

( Concrete )
  • ASTM C1202
  • ASTM C1760
  • AASHTO T277
  • NT Build 492

This test method allows to evaluation of the electrical conductance of concrete samples to provide a rapid indication of their resistance to chloride ion penetration, which is correlated to concrete durability.

The acquisition unit is available in two versions:

  • C378-01 acquisition digital unit with 4 independent channels to connect up to 4 test cells simultaneously
  • C378-02 acquisition digital unit with 8 independent channels to connect up to 8 test cells simultaneously

Request information
Non sei loggato per vedere i manuali Entra
  • Programmable test duration and adjustable measuring rate starting from 1 minute
  • Continuously variable voltage difference from 5 to 70 VDC independent for each channel
  • Voltage accuracy better than +/- 0.1V, resolution 0.01V
  • Continuous current measurement with accuracy +/- 1 mA, resolution 0.1 mA
  • Continuous temperature measurement with PT100 probe, accuracy +/- 1°C, resolution 0.1°C
  • USB port for data export/storage on external memory
  • RS 232 serial port for PC or serial printer connection
  • Pre-set test routines to the main Standards plus custom procedures

Power supply: 110-230V, 50-60 Hz, 1 ph
Dimensions: 503x330x164 mm
Weight: 11.5 kg
