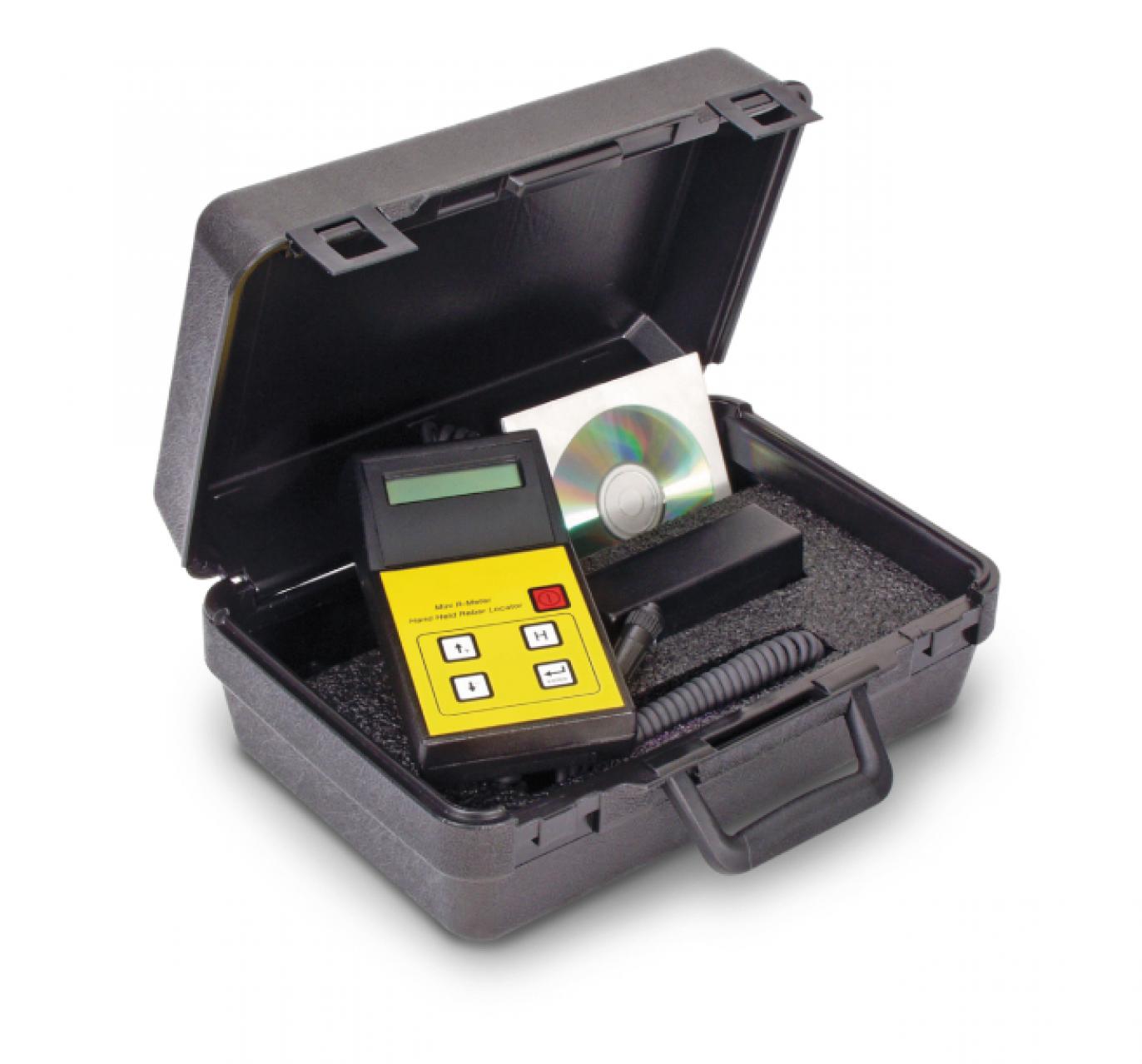

This lightweight and hand-held field instrument allows to determine the location and the depth of rebars inside concrete structures, making it easy to define where it is possible to drill and extract concrete cores. It is not suitable to determine the diameter of the rebars.
Cover measuring depth: up to 250 mm (for 36 mm bars)
Bar size calibration: 10 to 28 mm
Battery life: 4 hours of continuous operation
Possibility to store data for later upload via USB.
Dimensions: 250x162x62 mm
Weight: 1.6 kg
