  5. Concrete compression machine 5000 kN semi-automatic, Cyber-Plus Progress
Test Standard Category
Concrete

C086-02N Concrete compression machine 5000 kN semi-automatic, Cyber-Plus Progress

( Concrete )
  • BS 1610
  • NF P18-411
  • ASTM C39
  • AASHTO T22
  • GOST 10180

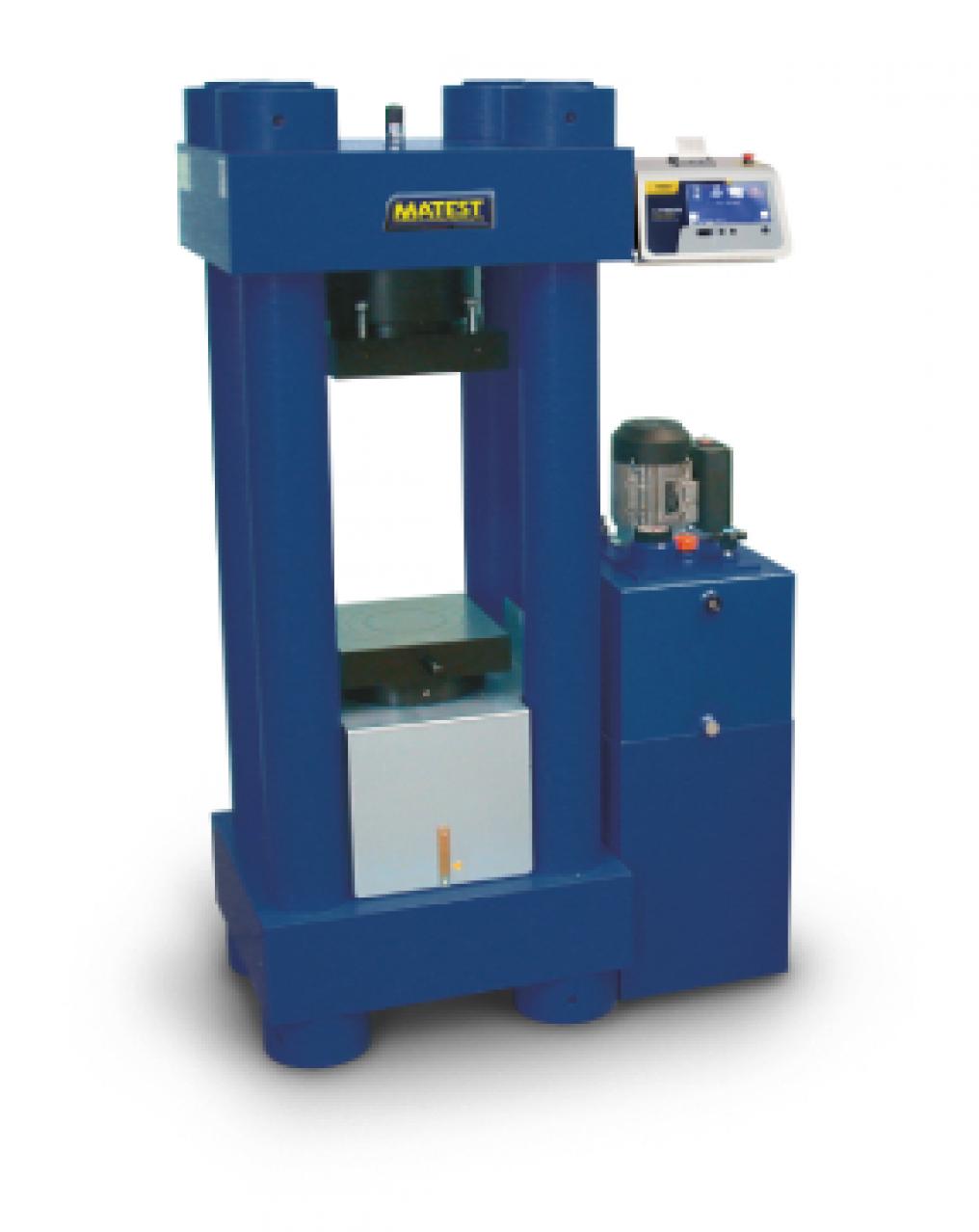

Compression testing machine 5000 kN motorized with Cyber Plus Progress touch-screen control unit (semi-automatic model), to test cubes up to 300 mm side and cylinders up to dia. 250x500 mm.

Request information

Compressive Strength

  • ASTM C39
  • AASHTO T22
  • NF P18-411
  • BS 1610
  • BS 6073
  • EN 772-1
  • ASTM C140
  • ASTM C1314
  • Max. vertical daylight: 530 mm
  • Horizontal daylight between columns: 340 mm
  • Compression platens 310x310x68 mm
  • Calibration accuracy: Class 1
  • Max. ram travel 60 mm approx.
  • High stiffness and heavyweight 4-column frame (German-style)
  • Power supply: 230V 1ph 50Hz 750W
  • Dimensions: 970x750x1800 mm approx.
  • Weight: 2800...2900 kg approx.
